TRANSMISSION
L3301, L3901, L4701, WSM
3-S82
Shaft Assemblies

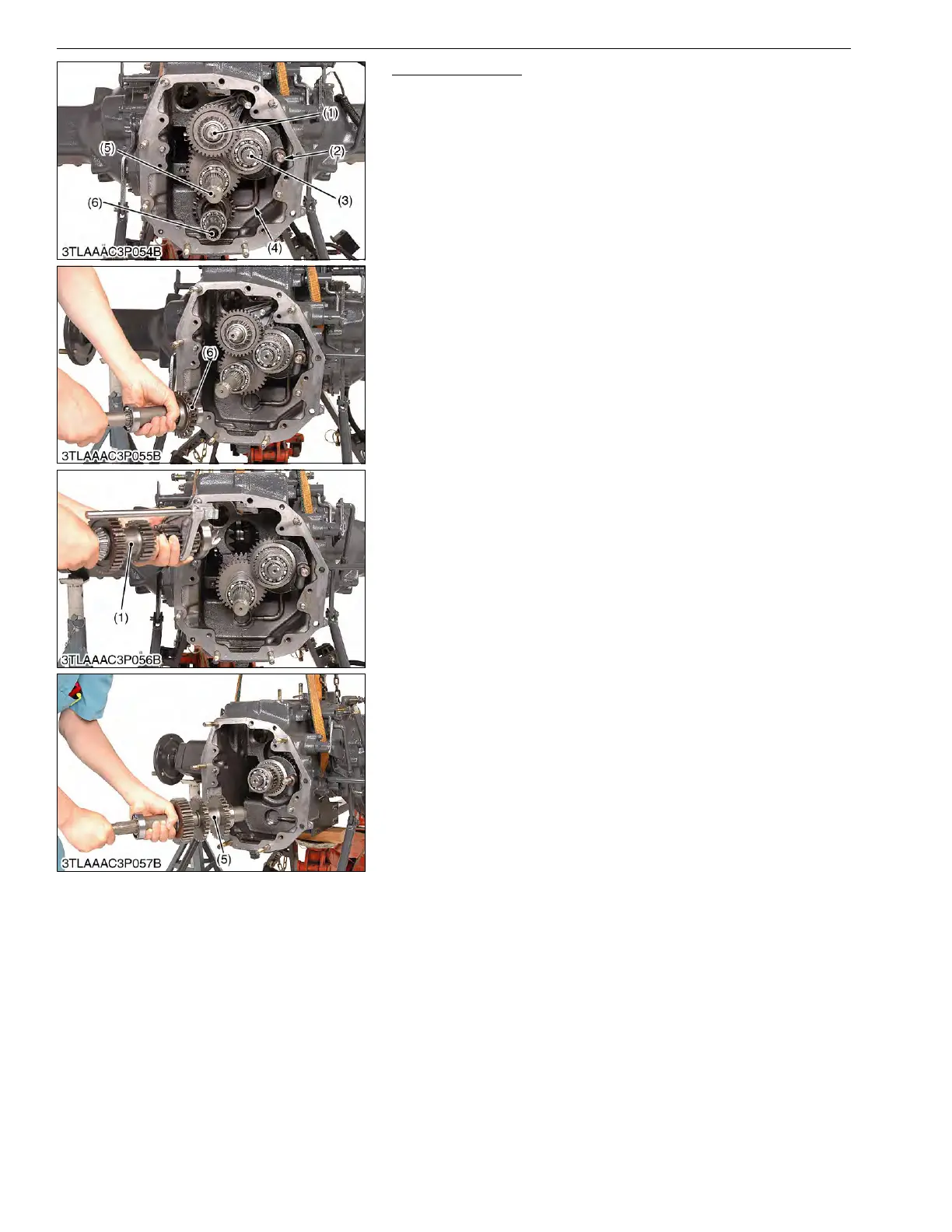

1. Remove front wheel drive gear shaft assembly (6).
2. Remove pinion gear shaft assembly (1).
3. Remove PTO gear shaft assembly (5).
(To be continued)
(1) Pinion Gear Shaft Assembly
(2) Hi-Lo Gear Shift Fork Rod
(3) Hi-Lo Gear Shaft Assembly
(4) Front Wheel Drive Shift Lever
(5) PTO Gear Shaft Assembly
(6) Front Wheel Drive Gear Shaft
Assembly
