wsm L3301 - Page 409

TRANSMISSION
L3301, L3901, L4701, WSM
3-S97

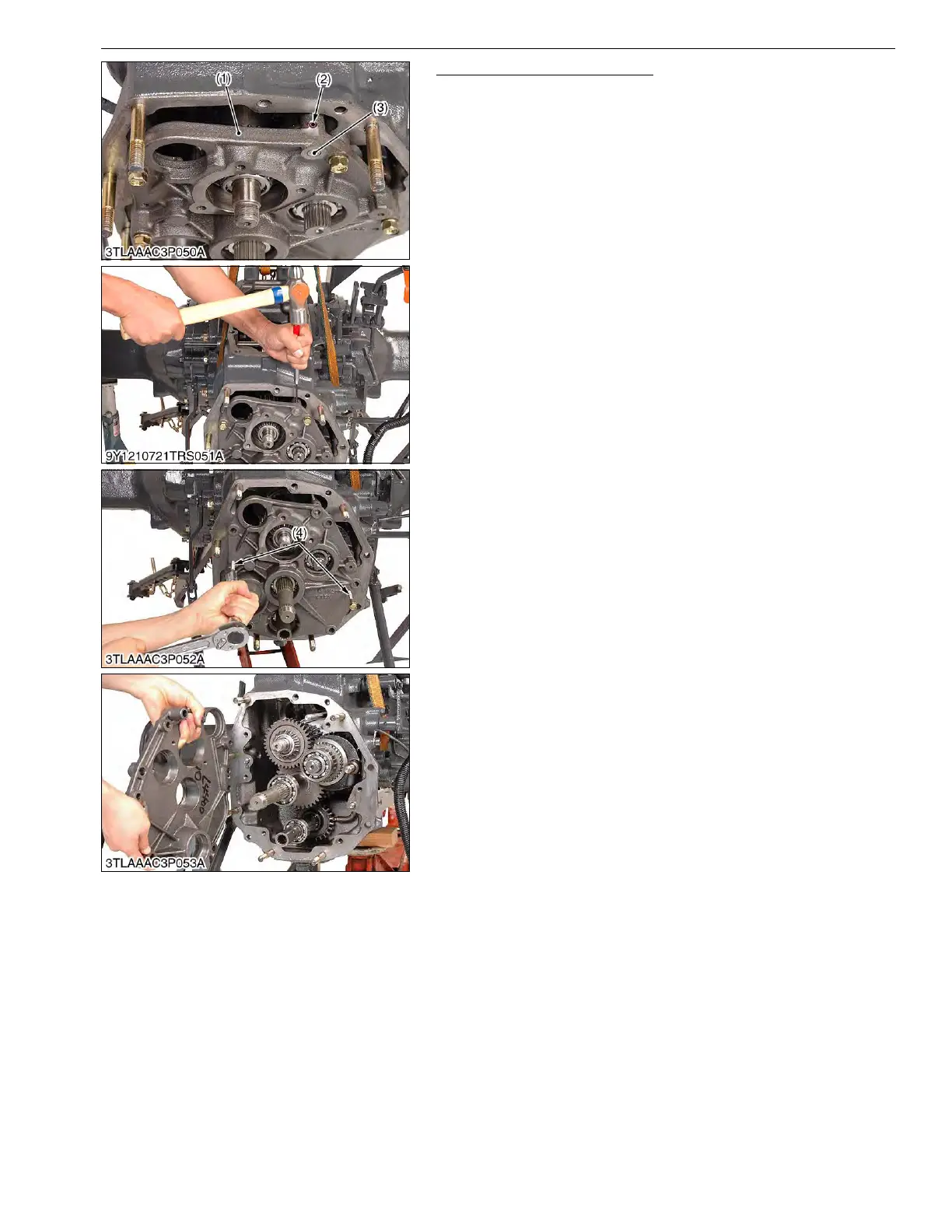

Transmission Bearing Holder
1. Remove spring pin (2) holding hi-shift fork rod (3) to
transmission bearing holder (1).
2. Remove transmission bearing holder by using 2 jack screws M8
(4).
9Y1211012TRS0100US0
(1) Transmission Bearing Holder
(2) Spring Pin
(3) Hi-Shift Fork Rod
(4) Jack Screws M8
KiSC issued 09, 2016 A
