FRONT AXLE
L3301, L3901, L4701, WSM
6-M1

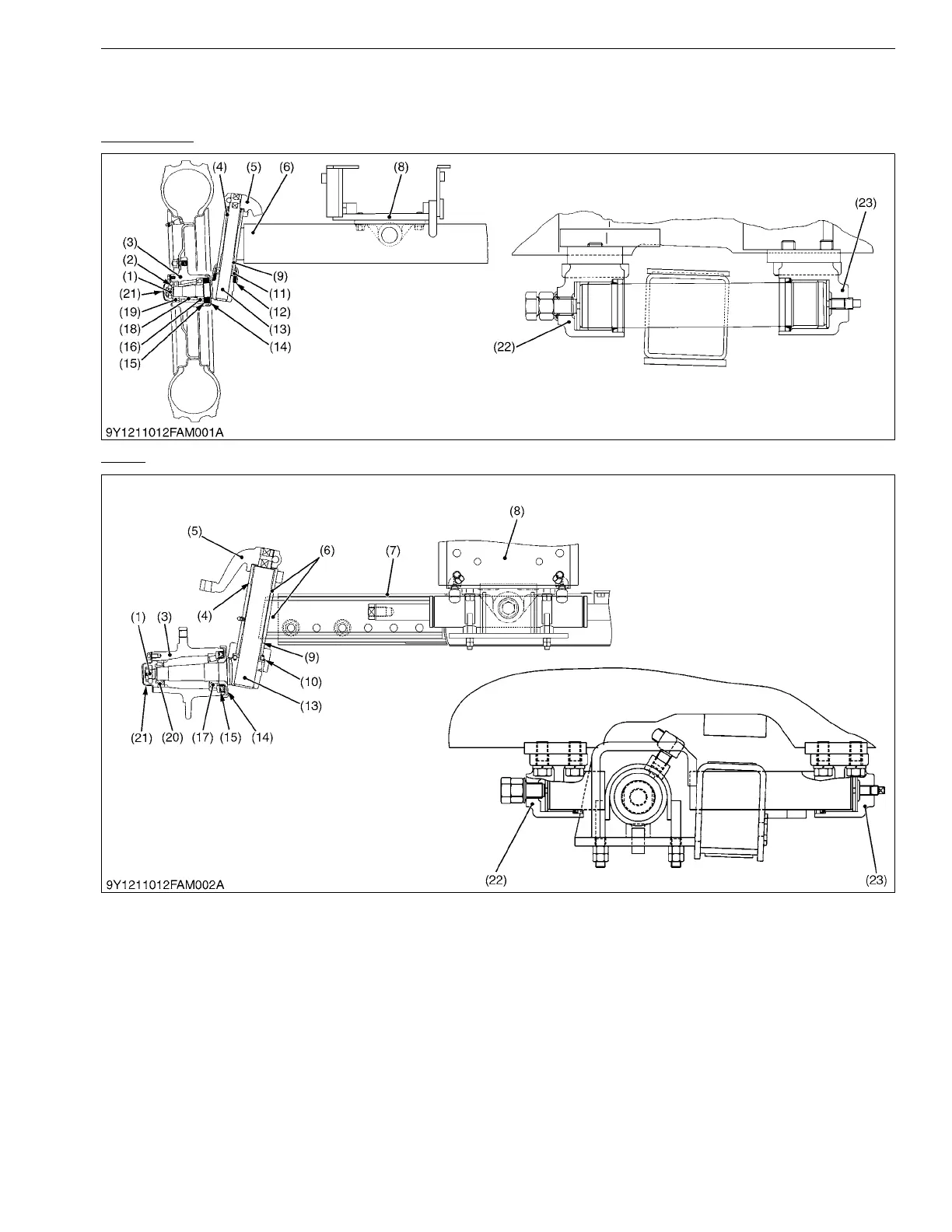

1. STRUCTURE
[1] 2WD Model
L3301/L3901
L4701
The front axle of the 2WD model is constructed as shown above. The shape of the front axle is relatively simple,
and the axle is supported at its center with front axle bracket (22), (23) on the front axle frame (8), so that steering
operation is stable even on an uneven grounds in a farm field.
2WD model of L4701 can change its front tread in 5 stages.
9Y1211012FAM0001US0
(1) Slotted Nut
(2) Plain Washer
(3) Front Wheel Hub
(4) Bushing
(5) Knuckle Arm
(6) Front Axle
(7) Front Axle, Middle
(8) Front Axle Frame
(9) Bushing
(10) Thrust Collar
(11) Thrust Ball Bearing
(12) Oil Seal
(13) Knuckle Shaft
(14) Dust Cover
(15) Oil Seal
(16) Ball Bearing
(17) Taper Roller Bearing
(18) Spacer
(19) Ball Bearing
(20) Taper Roller Bearing
(21) Front Wheel Cap
(22) Front Axle Bracket
(Front Side)
(23) Front Axle Bracket
(Rear Side)
