FRONT AXLE
L3301, L3901, L4701, WSM
6-S25
Differential Gear
1. Remove the differential case cover mounting screws (9) and
then remove the differential case cover (5), ball bearing (6) and
spiral bevel gear (7) as a unit.
2. Remove the external snap ring (8), and then remove the ball
bearing (6) and spiral bevel gear (7) as a unit with a puller.
3. Remove the straight pin (13).
4. Pull out the pinion shaft (10) and remove the differential pinions
(4) and differential side gears (12).
(When reassembling)
• Apply molybdenum disulfide (Three Bond 1901 or equivalent) to
the inner circumferential surface of the differential side gears
(12) and the differential pinions (4).
9Y1211012FAS0036US0
Tightening torque
Differential case cover
mounting screw
48.0 to 58.8 N·m
4.9 to 6.0 kgf·m
35.4 to 43.4 lbf·ft

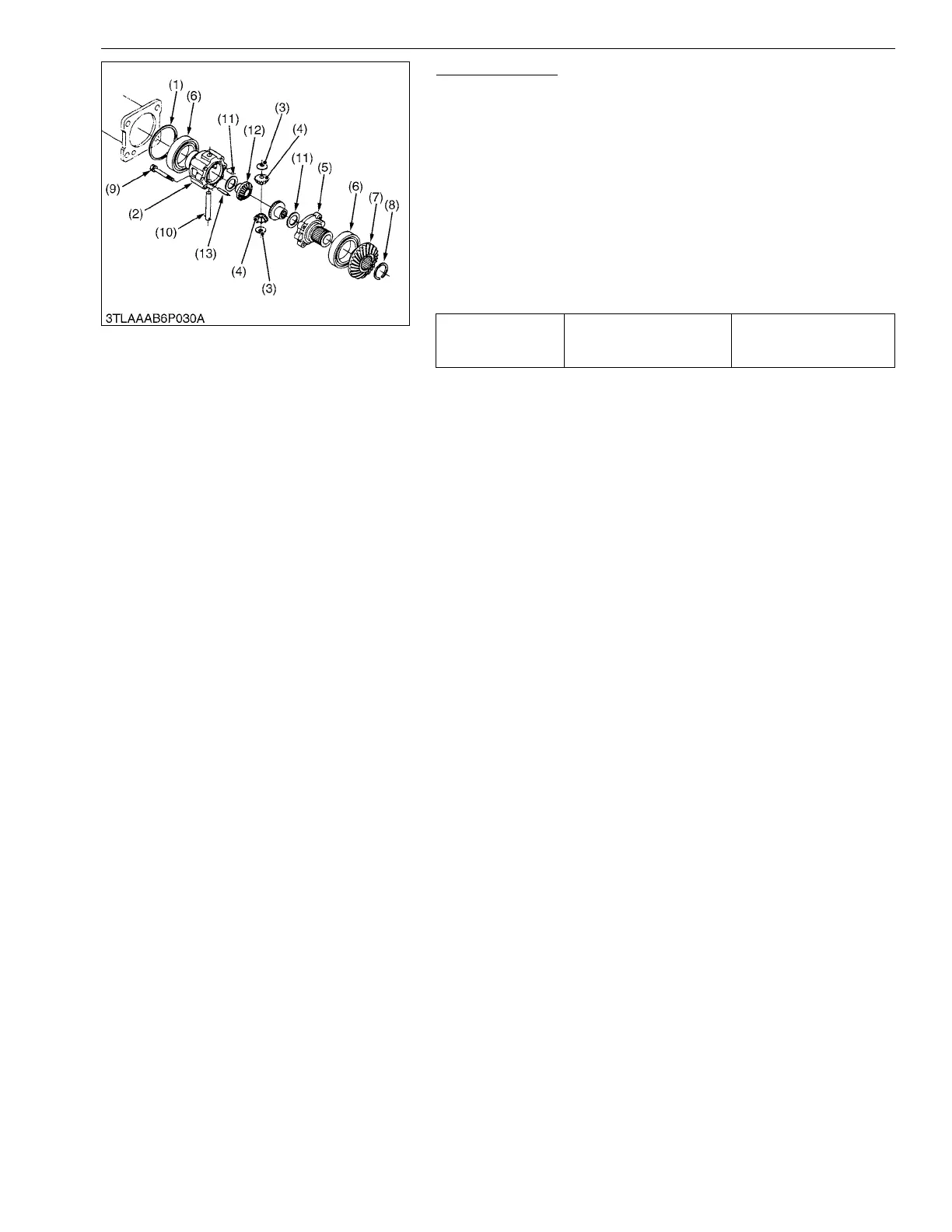

(1) Shim
(2) Differential Case
(3) Thrust Collar
(4) Differential Pinion
(5) Differential Case Cover
(6) Ball Bearing
(7) Spiral Bevel Gear
(8) External Snap Ring
(9) Differential Case Cover Mounting
Screws
(10) Pinion Shaft
(11) Shim
(12) Differential Side Gear
(13) Straight Pin
