FRONT AXLE
L3301, L3901, L4701, WSM
6-S27

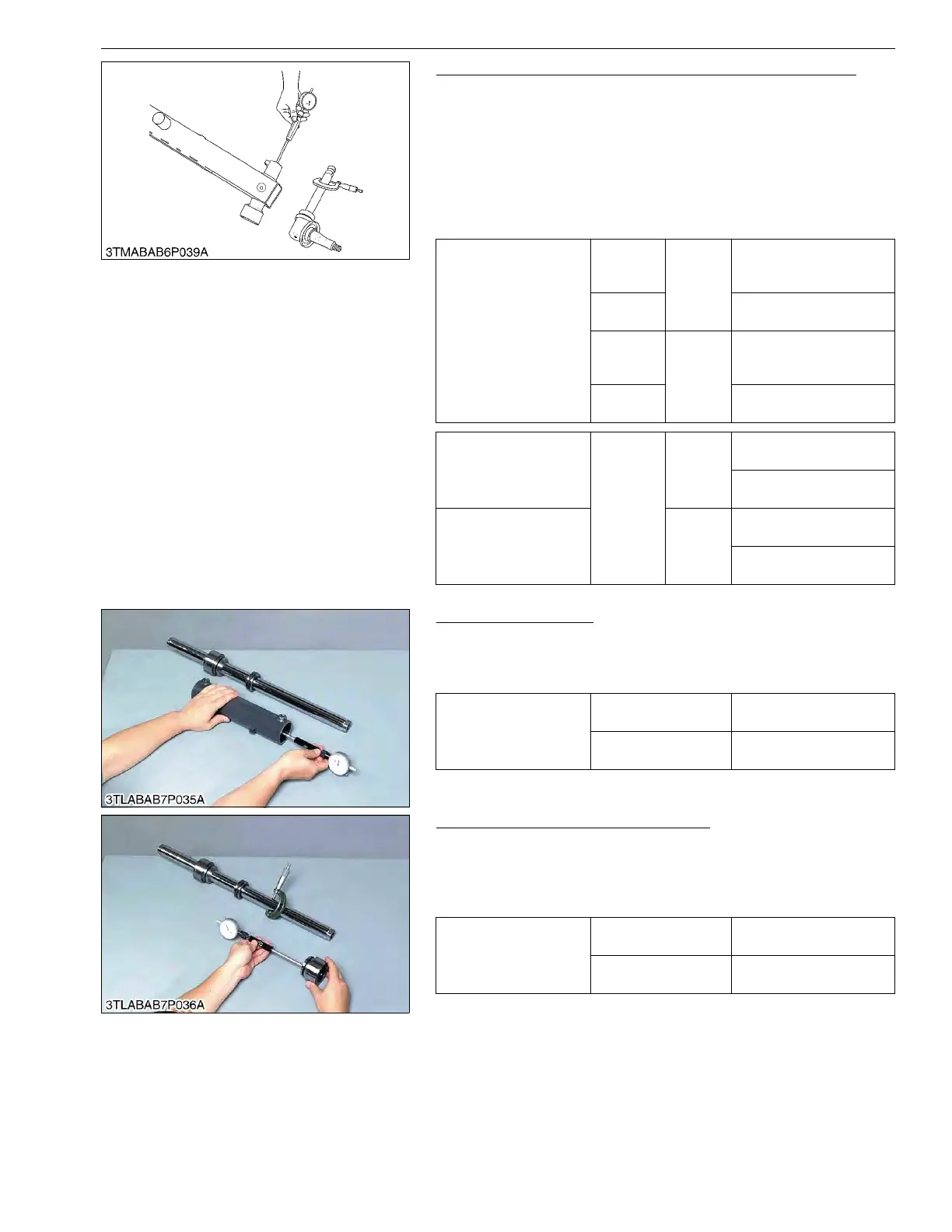

Clearance between Knuckle Shaft (Kingpin) and Bushing
1. Measure the shaft O.D. at several points where it contacts with
the bushings.
2. Measure the bushing I.D. in the same method, and calculate the
clearance.
3. If the clearance exceeds the allowable limit, replace the
bushing.
(When reassembling)
• Remove the bushing with a bushing puller.
9Y1211012FAS0038US0
Steering Cylinder I.D.
1. Measure the steering cylinder I.D. with a cylinder gauge.
2. If the cylinder I.D. exceed the allowable limit, replace the
cylinder tube.
9Y1211012FAS0039US0
Clearance between Rod and Bushing
1. Measure the bushing I.D. with a cylinder gauge.
2. Measure the rod O.D. with a outside micrometer, and calculate
the clearance.
3. If the clearance exceeds the allowable limit, replace as a unit.
9Y1211012FAS0040US0
Clearance between
knuckle shaft (kingpin)
and bushing
Factory
specifica-
tion
L3301/
L3901
0 to 0.285 mm
0 to 0.0112 in.
Allowable
limit
0.4 mm
0.02 in.
Factory
specifica-
tion
L4701
0 to 0.190 mm
0 to 0.00748 in.
Allowable
limit
0.4 mm
0.02 in.
Knuckle shaft O.D.
Factory
specifica-
tion
L3301/
L3901
27.880 to 27.900 mm
1.0977 to 1.0984 in.
27.900 to 28.165 mm
1.0985 to 1.1088 in.
Bushing I.D. L4701
37.975 to 38.000 mm
1.4951 to 1.4960 in.
38.000 to 38.165 mm
1.4961 to 1.15025 in.
Steering cylinder I.D.
Factory specification
55.000 to 55.074 mm
2.1654 to 2.1682 in.
Allowable limit
55.100 mm
2.1693 in.
Clearance between rod
and bushing
Factory specification
0.00900 to 0.127 mm
0.000355 to 0.00500 in.
Allowable limit
0.135 mm
0.00531 in.
