HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-M3

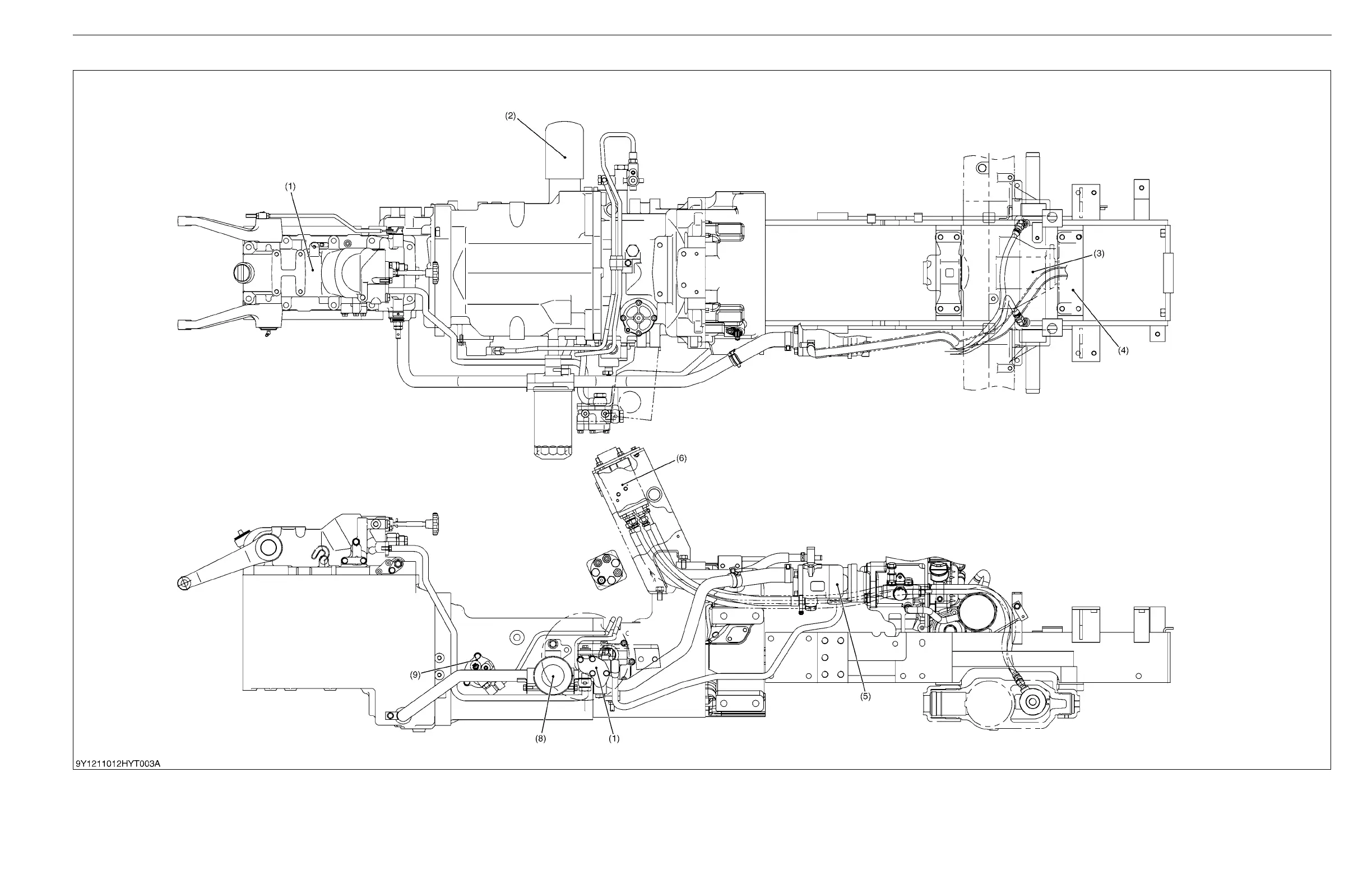

(2) HST Model
(1) Hydraulic Block
(2) Hydraulic Oil Filter (HST)
(3) Power Steering Cylinder
(4) Oil Cooler
(5) Hydraulic Pump
(6) Power Steering Controller
(7) Front Hydraulic Block (8) Hydraulic Oil Filter (9) PTO Clutch Valve
KiSC issued 09, 2016 A
