wsm L3301 - Page 538

HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-M5
(2) HST Model

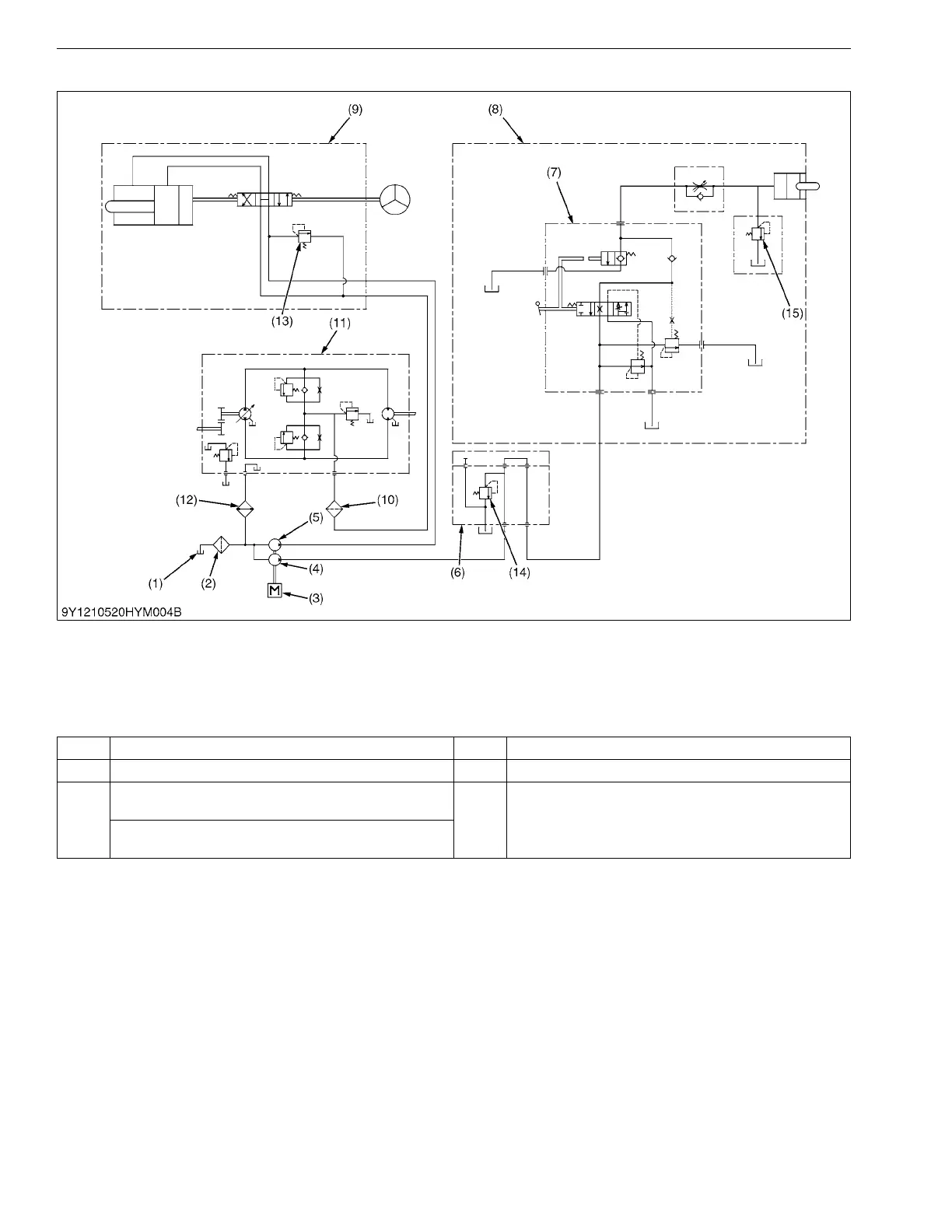

Specification of Hydraulic Parts
9Y1211012HYM0002US0
(1) Oil Tank (Transmission Case)
(2) Hydraulic Oil Filter
(3) Engine
(4) Hydraulic Pump
(Three Point Hitch)
(5) Hydraulic Pump
(Power Steering)
(6) Front Hydraulic Block
(7) Position Control Valve
(8) Hydraulic Cylinder Block
(9) Power Steering Controller
(10) Hydraulic Oil Filter (HST)
(11) HST Unit
(12) Oil Cooler
(13) Relief Valve (Power Steering)
(14) Relief Valve
(Three Point Hitch)
(15) Cylinder Safety Valve
(4) Above. 27.2 L/min. (7.19 U.S.gals/min., 5.98 lmp.gals/min.) (14) 15.7 to 16.7 MPa (160 to 170 kgf/cm
2
, 2280 to 2410 psi)
(5) Above. 16.5 L/min. (4.36 U.S.gals/min., 3.63 lmp.gals/min.) (15) 19.7 to 22.5 MPa (200 to 230 kgf/cm
2
, 2850 to 3270 psi)
(13)
[L3301]
11.4 to 12.4 MPa (116 to 126 kgf/cm
2
, 1650 to 1790 psi)
[L3901]
11.1 to 12.1 MPa (113 to 123 kgf/cm
2
, 1610 to 1740 psi)
KiSC issued 09, 2016 A
