ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-M9

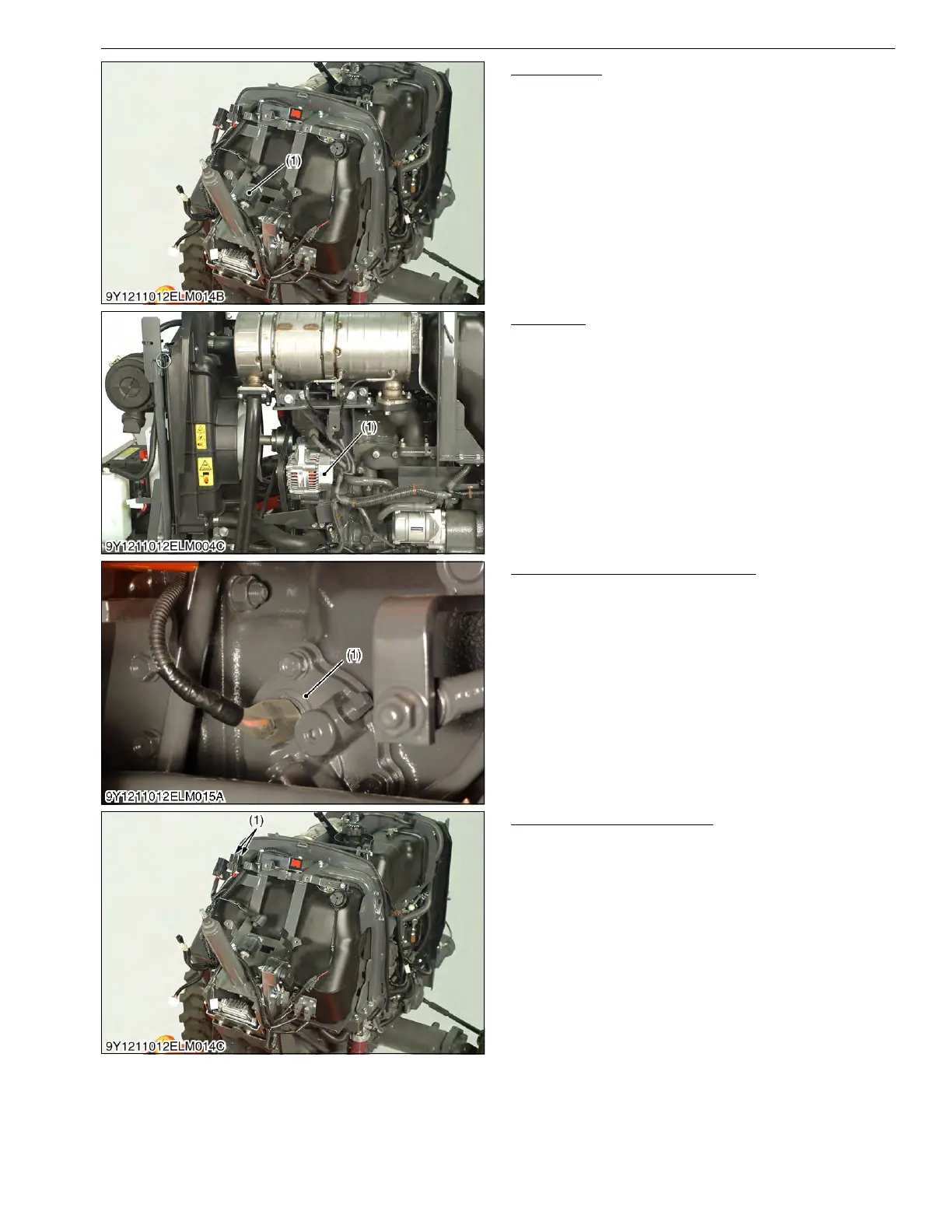

Flusher Unit
Flusher unit controls the blinking frequency of turn
signal and hazard signal.
As a only one side of lamp blinking of turn signal and
both right and left side lamps blinking hazard signal.
The blinking frequency is about 60 to 80 times per
minutes.
9Y1211012ELM0023US0
Alternator
The alternator (1) has a function as a charging
device.
The terminal L of this alternator detects a signal from
the battery charge circuit and send a signal for making
the electrical charge warning indicator at the electronic
instrument panel to light up when the electricity charge
system becomes abnormal.
9Y1211012ELM0024US0
PTO Solenoid Valve (L4701 Only)
The PTO solenoid valve (1) is attached on the right
side of mid-case. This valve controls oil flow to the PTO
clutch based on signals from main ECU.
9Y1211012ELM0025US0
Starter Relay, Engine Relay
These relays are attached inside the rear bonnet.
These relays are same parts. When servicing, be careful
not to confuse with another relay. Be sure to check the
color of wiring harness.
9Y1211012ELM0026US0
(1) Flusher Unit
(1) Alternator
(1) PTO Solenoid Valve
(1) Starter Relay, Engine Relay
