GENERAL
L3301, L3901, L4701, WSM
G-35

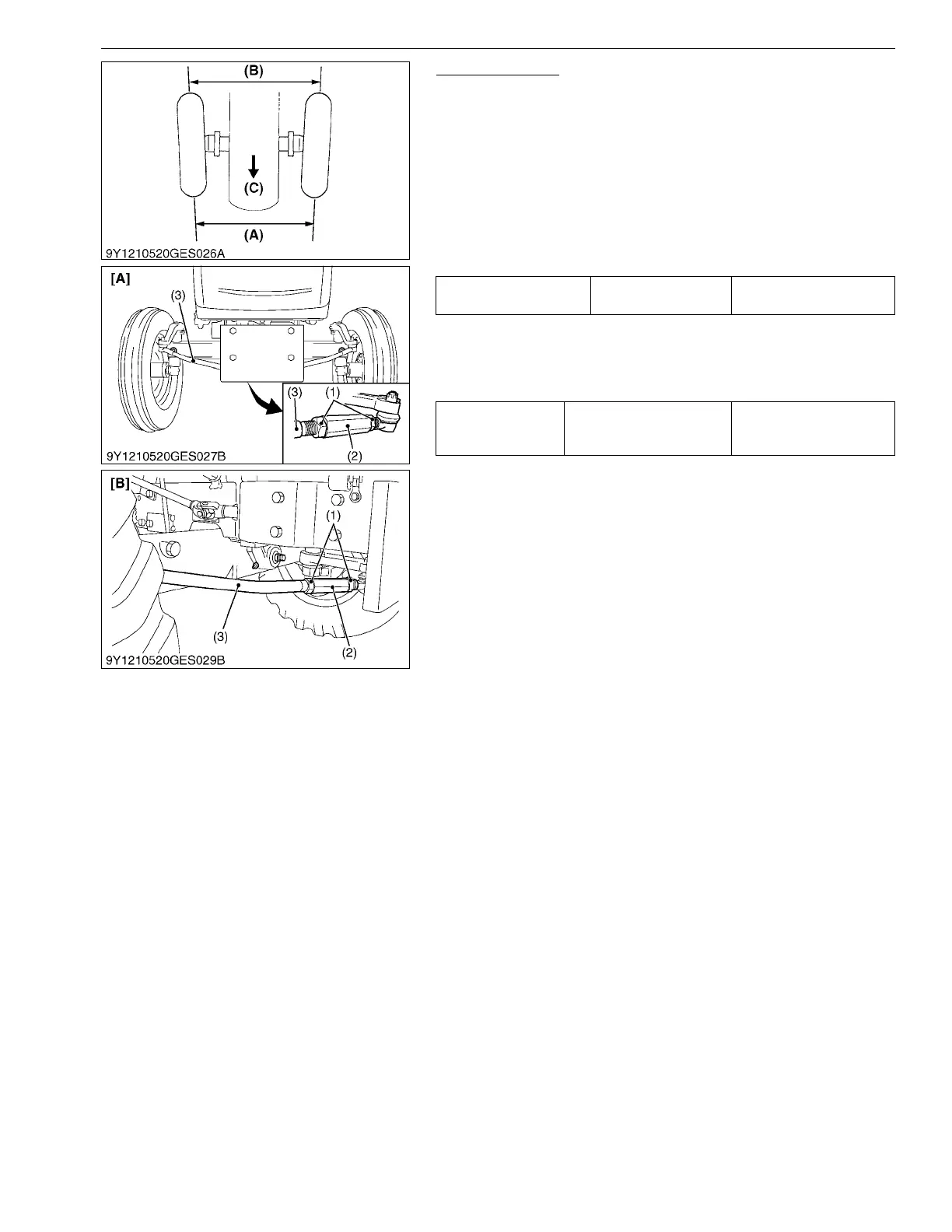

Adjusting Toe-in
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the straight ahead
position.
3. Lower the implement, lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, at hub
height.
5. Measure distance between tire beads at rear of tire, at hub
height.
6. Front distance should be shorter than rear distance. If not,
adjust tie rod length.
Adjusting procedures
1. Loosen the lock nut and turn the turnbuckle to adjust the rod
length until the proper toe-in measurement is obtained.
2. Retighten the lock nut.
9Y1211012GEG0091US0
Toe-in ((B) - (A)) Factory specification
2 to 8 mm
0.08 to 0.31 in.
Tightening torque Tie-rod lock nut
112.7 to 122.5 N·m
11.5 to 12.5 kgf·m
83.2 to 90.4 lbf·ft
(1) Lock Nuts
(2) Turnbuckle
(3) Tie-rod
[A]) 2WD
[B] 4WD
(A) Wheel to wheel distance at front
(B) Wheel to wheel distance at rear
(C) Front
