ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S25
9Y1211012ELS0025US0
Battery Voltage
1. Disconnect the connector of engine ECU (1).
2. Measure the voltage between terminal 50 of connector and
chassis.
3. If the measurement is not approximately battery voltage, check
the relating electric circuit.
9Y1211012ELS0026US0
38 R/Y DPF Differential Pressure Sensor (Signal) 85 R/G Intake Throttle Valve Motor (DC Motor −)
39 R Crankshaft Position Sensor (+) 86 Y/W Intake Air Temperature Sensor (Signal)
40 ––87 ––
41 ––88 ––
42 ––89 YSCV (−)
43 ––90 ––
44 B Camshaft Position Sensor (−) 91 ––
45 R Camshaft Position Sensor (+) 92 ––
46 W Camshaft Position Sensor (Signal) 93 ––
47 ––94 ––
No.
Color of
wiring
Terminal Name No.
Color of
wiring
Terminal Name
Voltage Terminal 50 – Chassis Approx. battery voltage

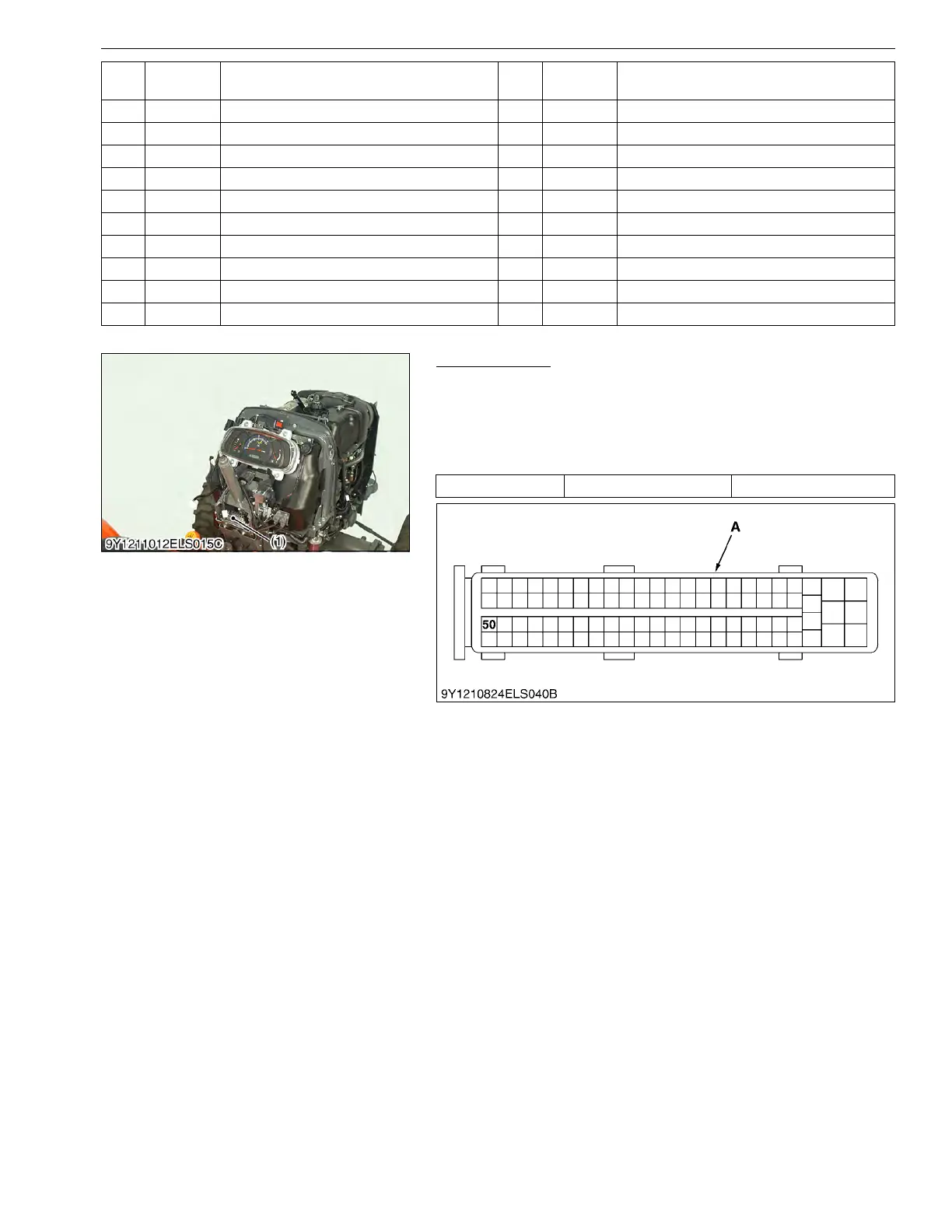

(1) Engine ECU A: Connector of Harness Side
KiSC issued 09, 2016 A
