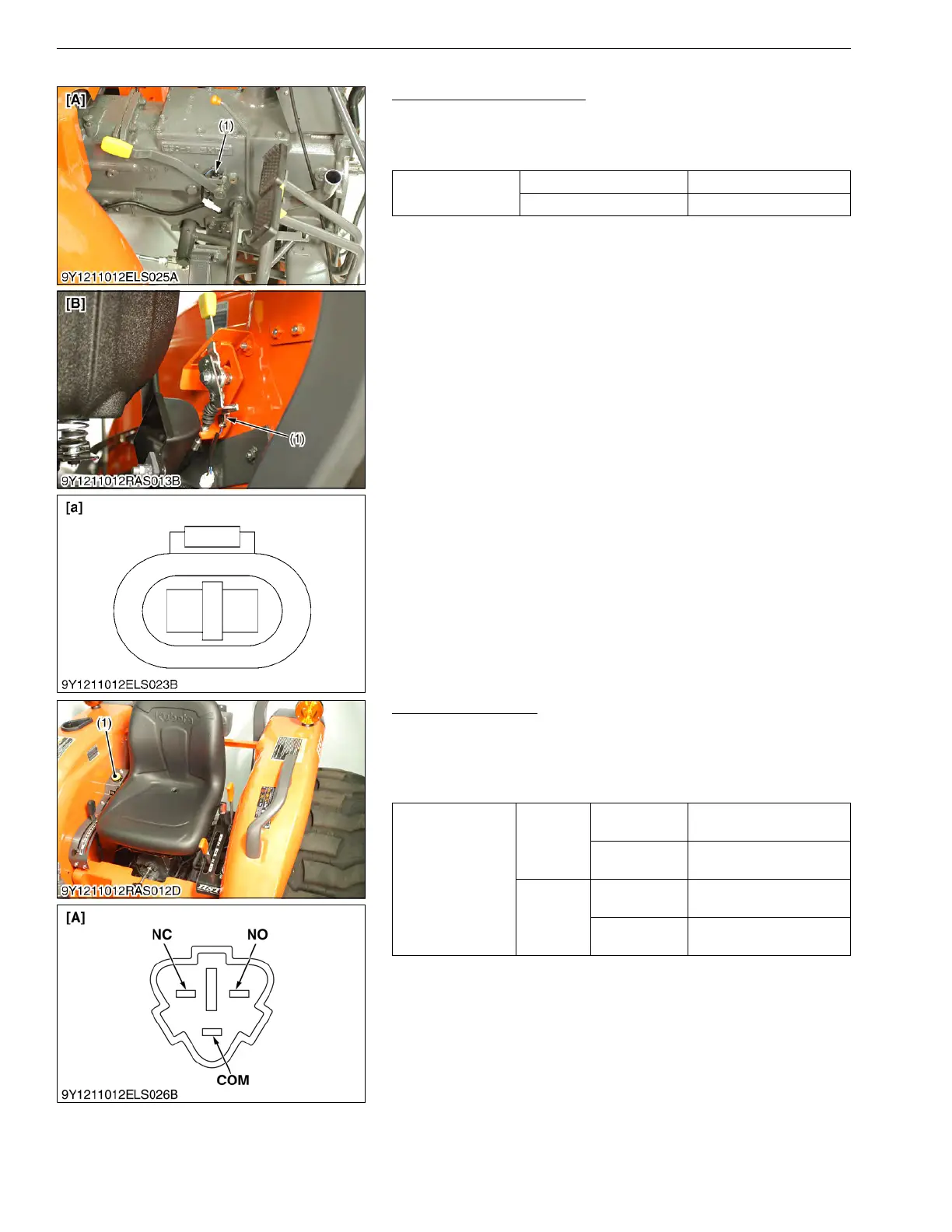

[C] PTO Switch
PTO Switch (L3301/L3901)
1. Remove connector of PTO switch (1).
2. Measure the resistance across two terminals of the connector.
3. If measurement is different from following table, replace it.
9Y1211012ELS0033US0
PTO Switch (L4701)
1. Remove connector of PTO switch (1).
2. Measure the resistance across two terminals of the connector
referring table.
3. If measurement is different from following table, replace it.
9Y1211012ELS0034US0
Resistance (Across
switch terminal)
When switch is pushed 0 Ω
When switch is released Infinity
(1) PTO Switch [A] Manual Transmission Model
[B] HST Model
[a] PTO Switch Side Connector 2P
Resistance (Across
switch terminal)
When
switch is
released
NO Terminal –
COM Terminal
Infinity
NC Terminal –
COM Terminal
0 Ω
When
switch is
pushed
NO Terminal –
COM Terminal
0 Ω
NC Terminal –
COM Terminal
Infinity
(1) PTO Switch [A] PTO Switch Side Connector 2P
