wsm L3301 - Page 83

GENERAL
L3301, L3901, L4701, WSM
G-59

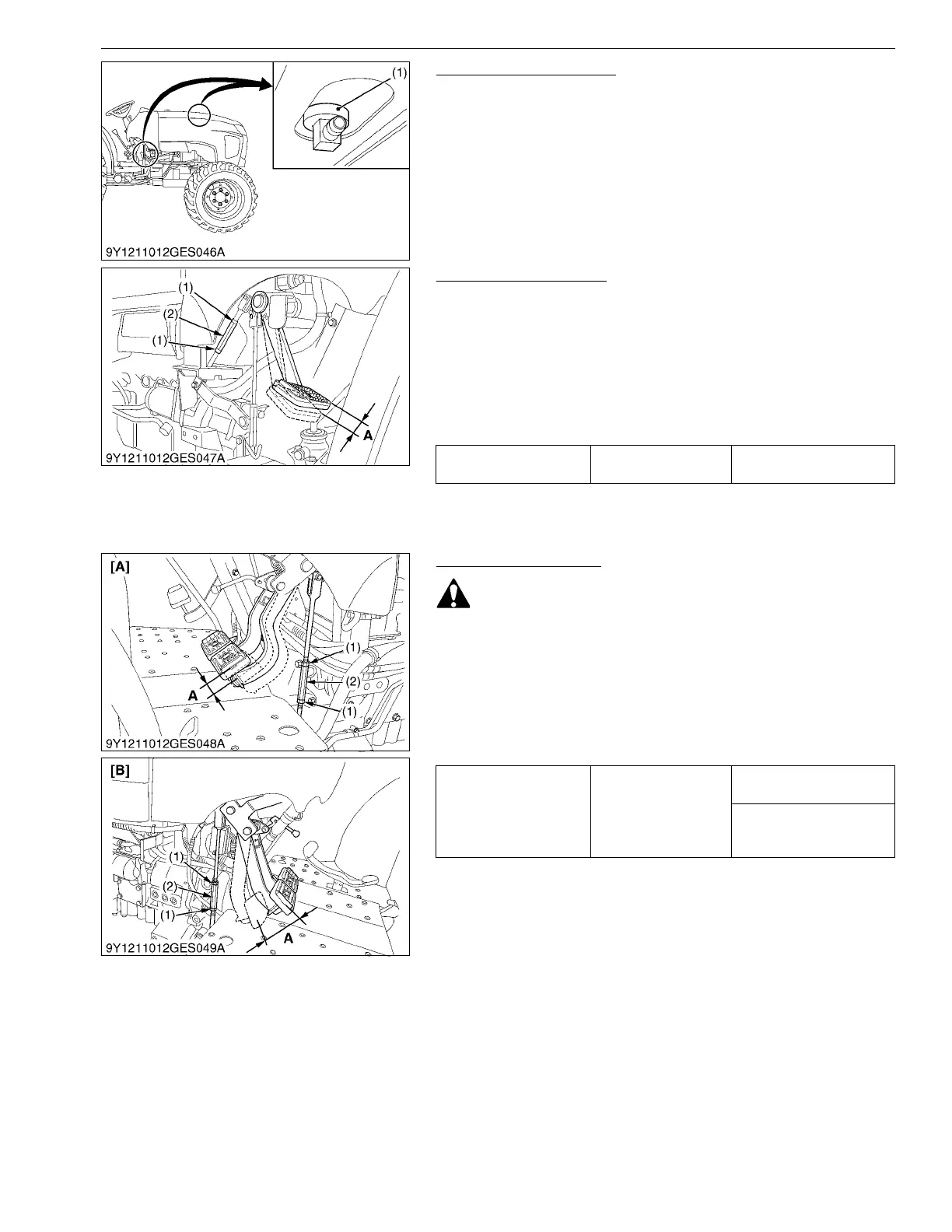

Checking Fuel Grommet
1. Check the grommets for cracks and fuel leak.
2. If any of such problems is found, replace the grommet(s) with
new one(s).
9Y1211012GEG0150US0
Adjusting Clutch Pedal
[Manual Transmission Type]
 Adjusting procedure
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free travel at the
top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn the
turnbuckle to adjust the rod length within acceptable limits.
4. Retighten the lock nut.
9Y1211012GEG0151US0
Adjusting Brake Pedal
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel at top
of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn the
turnbuckle to adjust the rod length within acceptable limits.
4. Retighten the lock nut.
9Y1211012GEG0152US0
(1) Fuel Grommet
Clutch pedal free travel
"A"
Factory specification
20 to 30 mm (0.8 to 1.2 in)
on the pedal
(1) Lock Nut
(2) Turnbuckle
A: Free Travel
Brake pedal free travel
"A"
Factory specification
15 to 20 mm (0.6 to 0.8 in.)
on the pedal
Keep the free travel in the
right and left brake pedals
equal.
(1) Lock Nut
(2) Brake Rod
[A] Manual Transmission Type
[B] HST Type
A: Free Travel
KiSC issued 09, 2016 A
