GENERAL
L3301, L3901, L4701, WSM
G-63

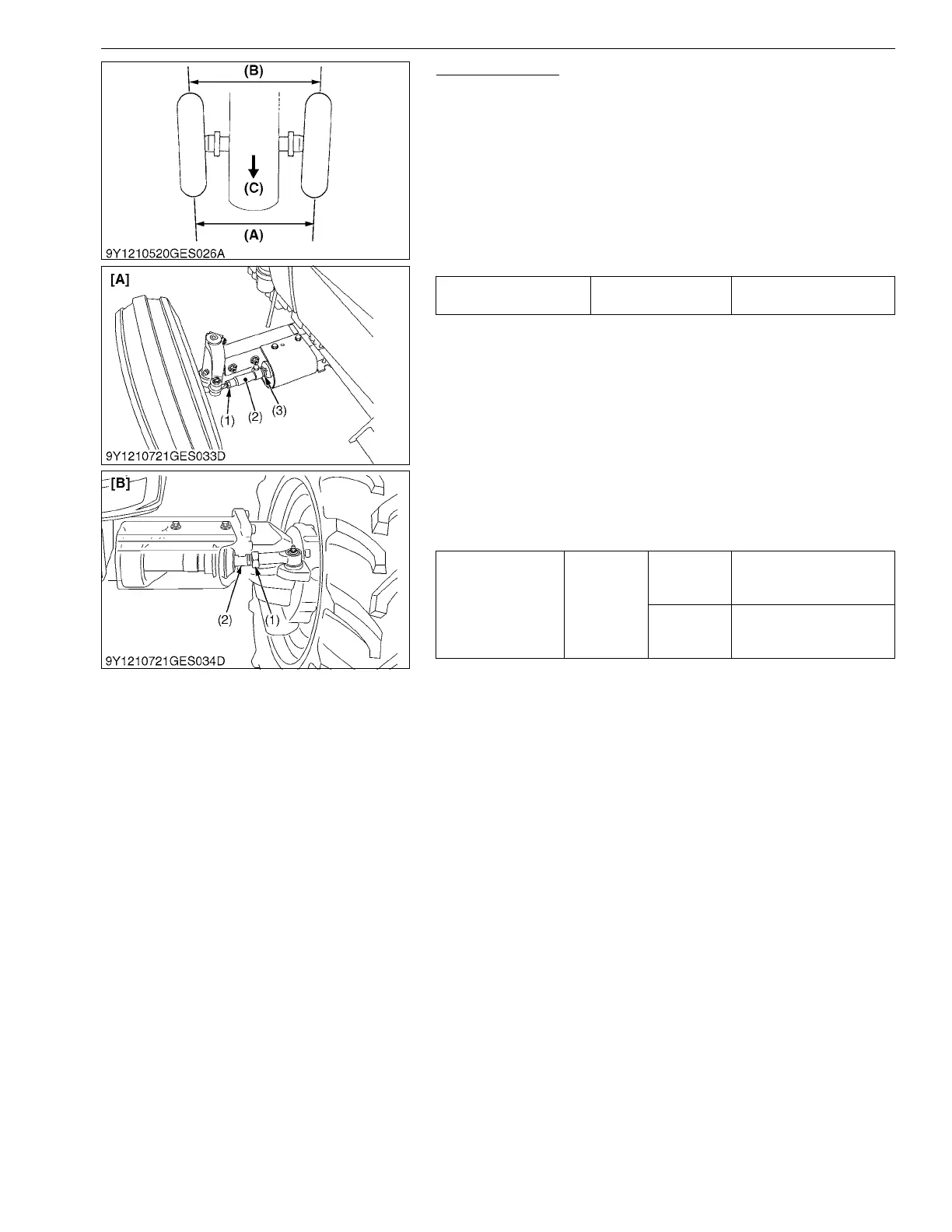

Adjusting Toe-in
1. Park tractor on a flat place.
2. Turn steering wheel so front wheels are in the straight ahead
position.
3. Lower the implement, lock the park brake and stop the engine.
4. Measure distance between tire beads at front of tire, at hub
height.
5. Measure distance between tire beads at rear of tire, at hub
height.
6. Front distance should be shorter than rear distance. If not,
adjust tie rod length.
Adjusting procedures [2WD]
1. Detach the snap ring.
2. Loosen the tie-rod nut.
3. Turn the tie-rod joint to adjust the rod length until the proper
toe-in measurement is obtained.
4. Retighten the tie-rod nut.
5. Attach the snap ring of the tie-rod joint.
Adjusting procedures [4WD]
1. Loosen the tie-rod nut.
2. Turn the tie-rod joint to adjust the rod length until the proper
toe-in measurement is obtained.
3. Retighten the tie-rod nut.
9Y1211012GEG0161US0
Toe-in ((B) - (A)) Factory specification
2 to 8 mm
0.08 to 0.31 in.
Tightening torque Tie-rod nut
2WD
83.3 to 88.2 N·m
8.5 to 9.0 kgf·m
61.4 to 65 lbf·ft
4WD
167 to 196 N·m
17 to 20 kgf·m
123.2 to 144.6 lbf·ft
(1) Tie-rod nut
(2) Tie-rod joint
(3) Snap ring
[A]) 2WD
[B] 4WD
(A) Wheel to wheel distance at front
(B) Wheel to wheel distance at rear
(C) Front
