Xerox DocuPrint P8e Service Manual 4-5 Repair Procedures
REP 4.1.2 Front Cover
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Panel Board Cover, the clear plastic lens, and the blue Online/Reset button. Allow
the Panel Board to remain connected to the harness (Figure 4.1.2a).
5 Carefully push the right side of the Front Cover out until it is free of the hinge pin. Remove the
Front Cover (Figure 4.1.2a).
6 Unplug the Control Panel connector.

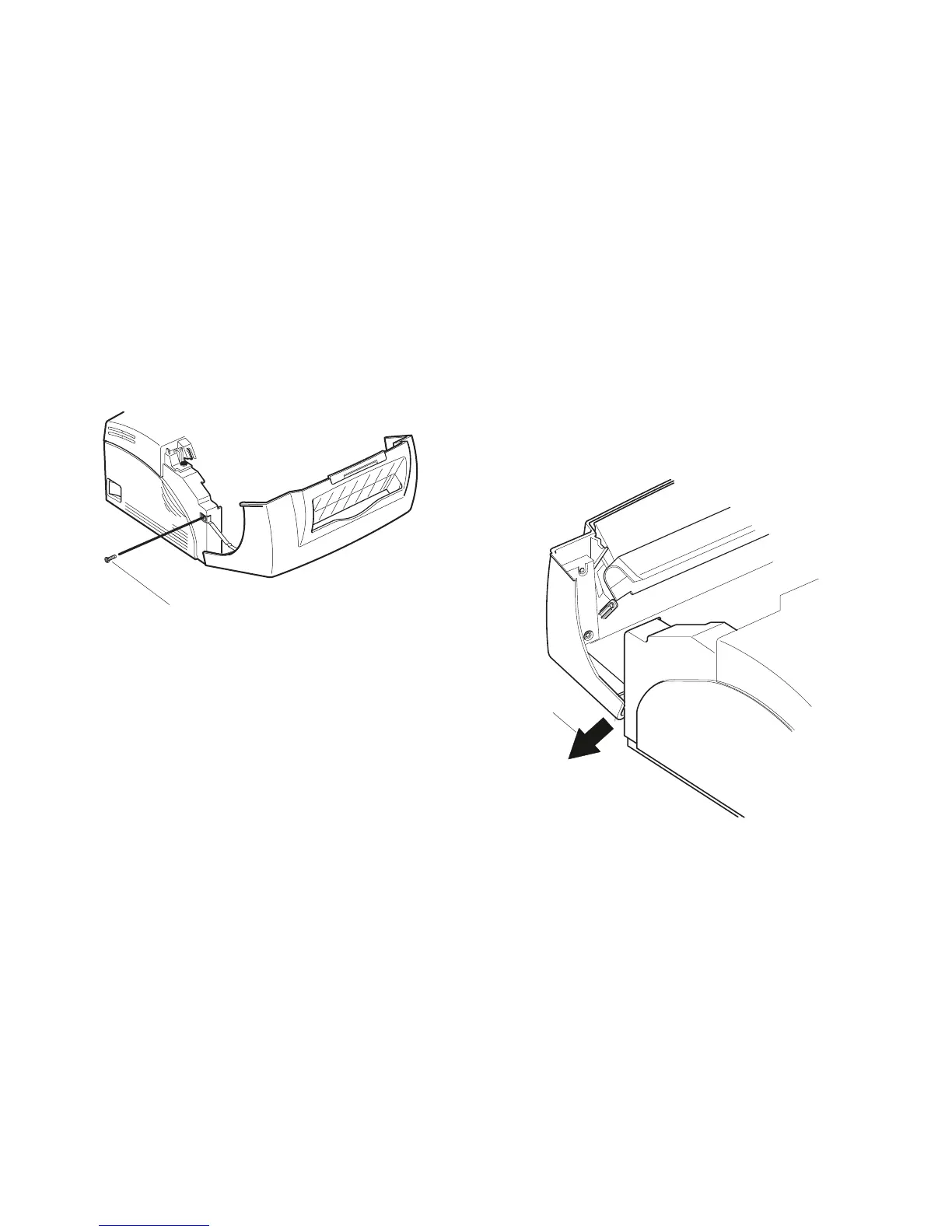

Figure 4.1.2a. Front Cover Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
