Xerox DocuPrint P8EX Service Manual

7/98
Xerox DocuPrint P8e Service Manual 4-25 Repair Procedures
REP 4.5.5 DC Fan Motor
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Right Side Covers (REP 4.1.5).
8 Remove the Bottom Shield (REP 4.6.1).
9 Remove the Gear Bracket (REP 4.5.2).
10 Remove the Controller PWB (REP 4.6.3).
11 Remove the Engine Controller PWB (REP 4.6.2).
12 Remove the fan connector from CN 408 of the Joint PWB.
13 Remove the two screws securing the DC Fan Motor to the printer frame (Figure 4.5.5a).

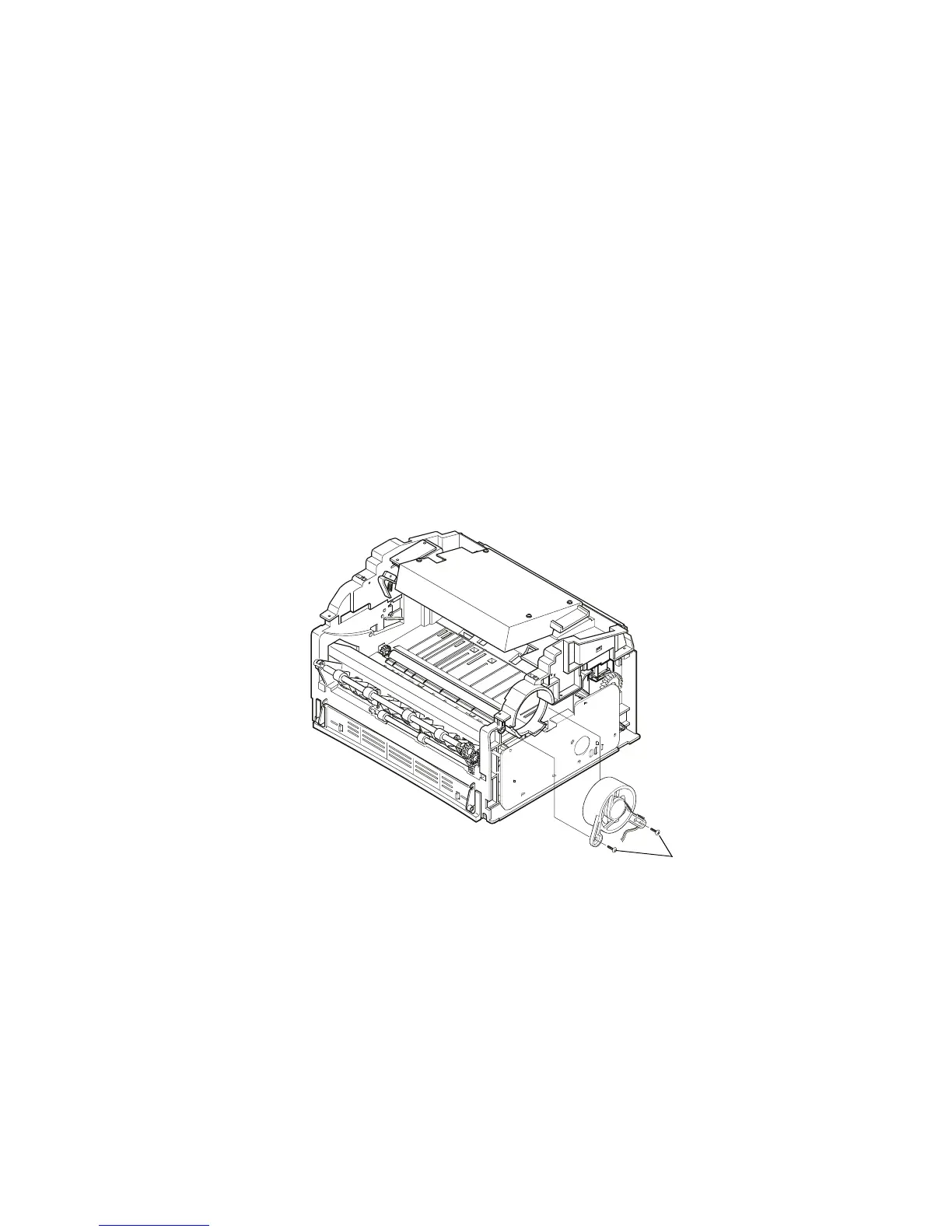

Figure 4.5.5a. DC Fan Motor Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
13
P8e_400
