7/98
Repair Procedures 4-8 Xerox DocuPrint P8e Service Manual
REP 4.1.5 Left and Right Side Covers
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the screw securing the side cover (Figure 4.1.5a).
8 Release the locking tab located at the top of the side cover (Figure 4.1.5a).
9 Remove the side cover.

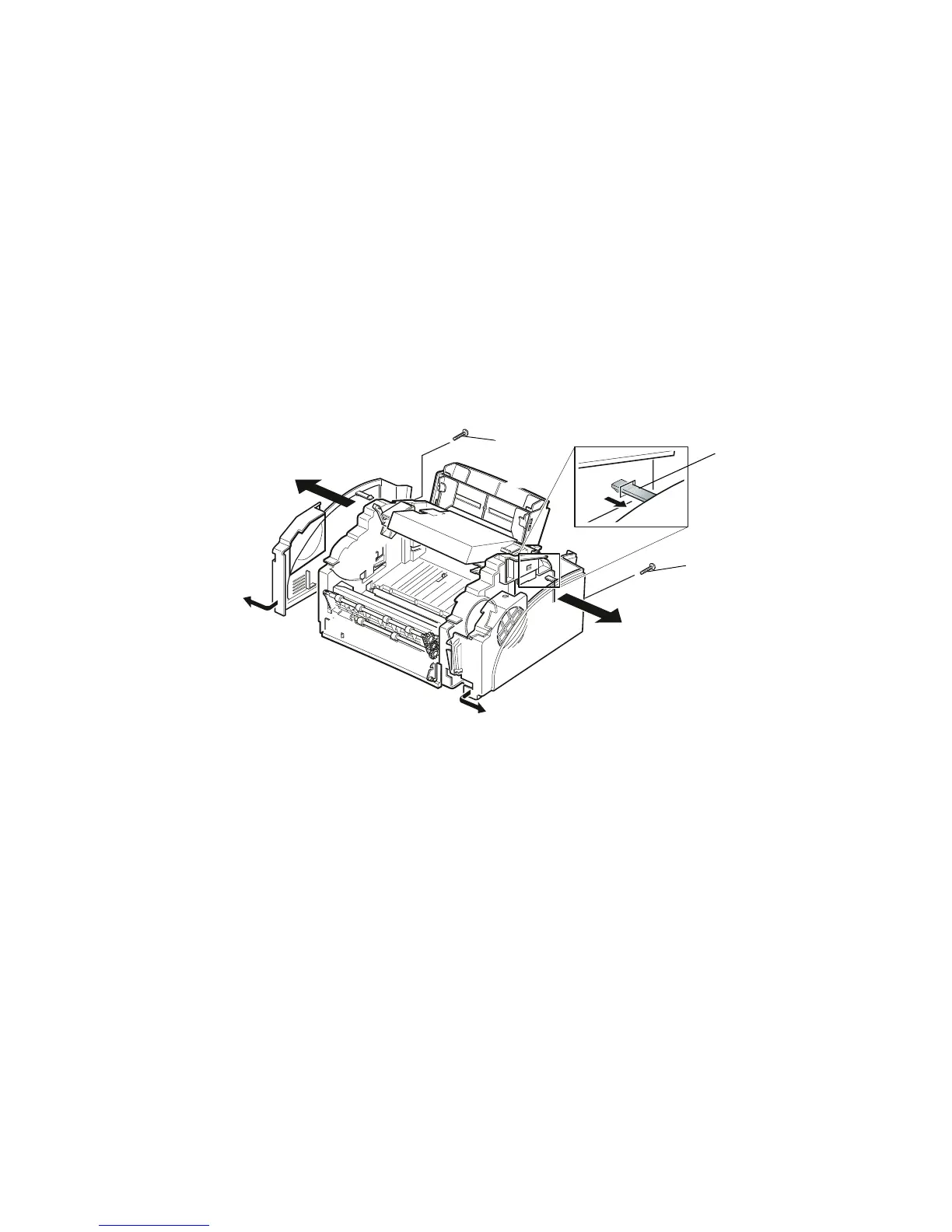

Figure 4.1.5a. Left and Right Side Cover Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_238
8
8
8
7
7
8
To Next Page
