Xerox DocuPrint P8e Service Manual 4-21 Repair Procedures
REP 4.5 Drive and Xerographic Modules
REP 4.5.1 Print Cartridge
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Open the printer’s front cover.
3 Grasp the Print Cartridge Handle as shown in Figure 4.5.1a. Pull the Printer Cartridge up and out
of the printer.

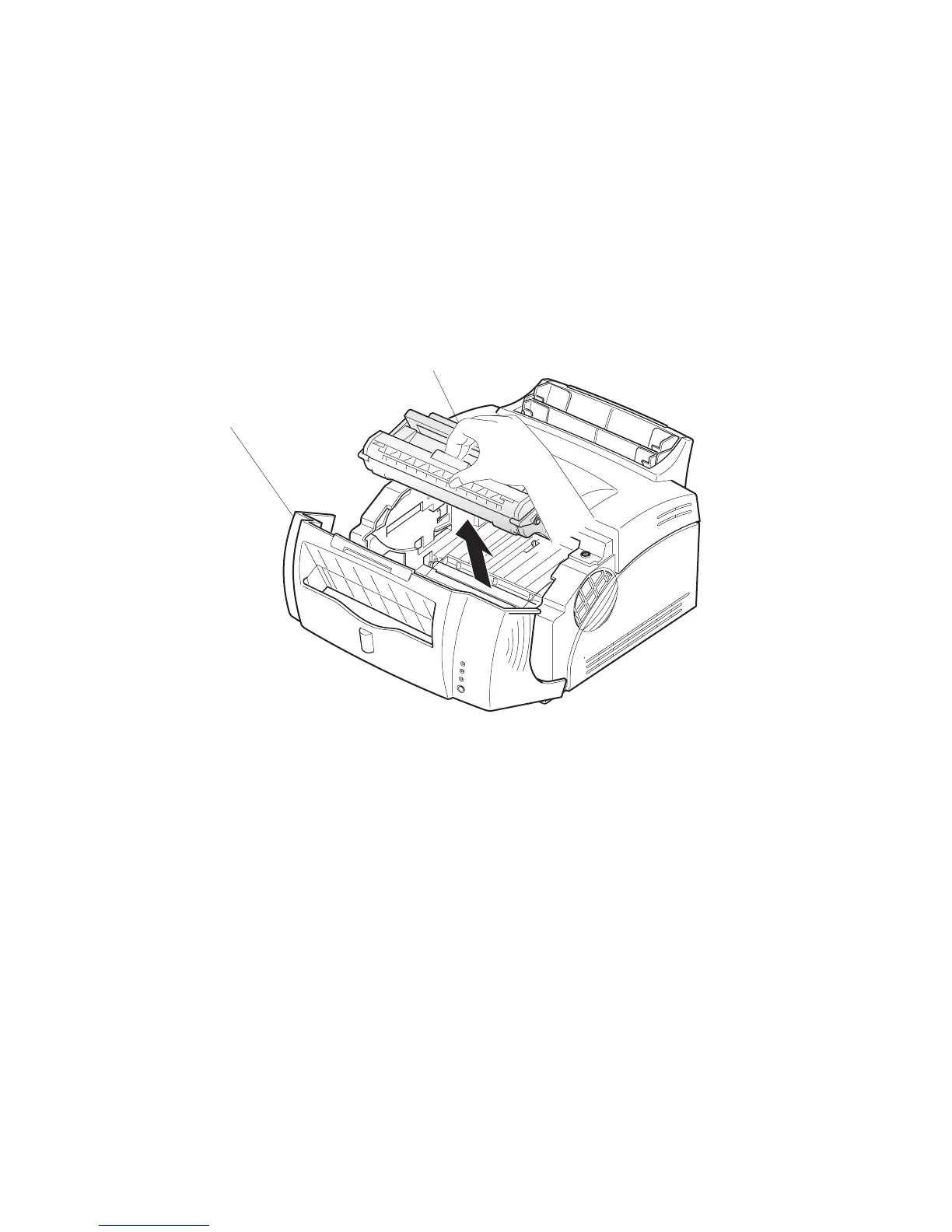

Figure 4.5.1a. Printer Cartridge Removal.
4 If the Printer Cartridge will be out for longer then a few minutes, cover the Cartridge with several
sheets of paper to protect it from light.
Replacement
1 Assemble in reverse order.
P8e_268
