7/98
Repair Procedures 4-18 Xerox DocuPrint P8e Service Manual
REP 4.4.2 Fuser Pressure Roller
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Print Cartridge (REP 4.5.1).
3 Remove the Face Up Cover (REP 4.1.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Right Side Cover (REP 4.1.5).
8 Remove the Fuser Assembly (REP 4.4.1).
9 Remove the Fuser Pressure Roller from the bearings (Figure 4.4.2a).

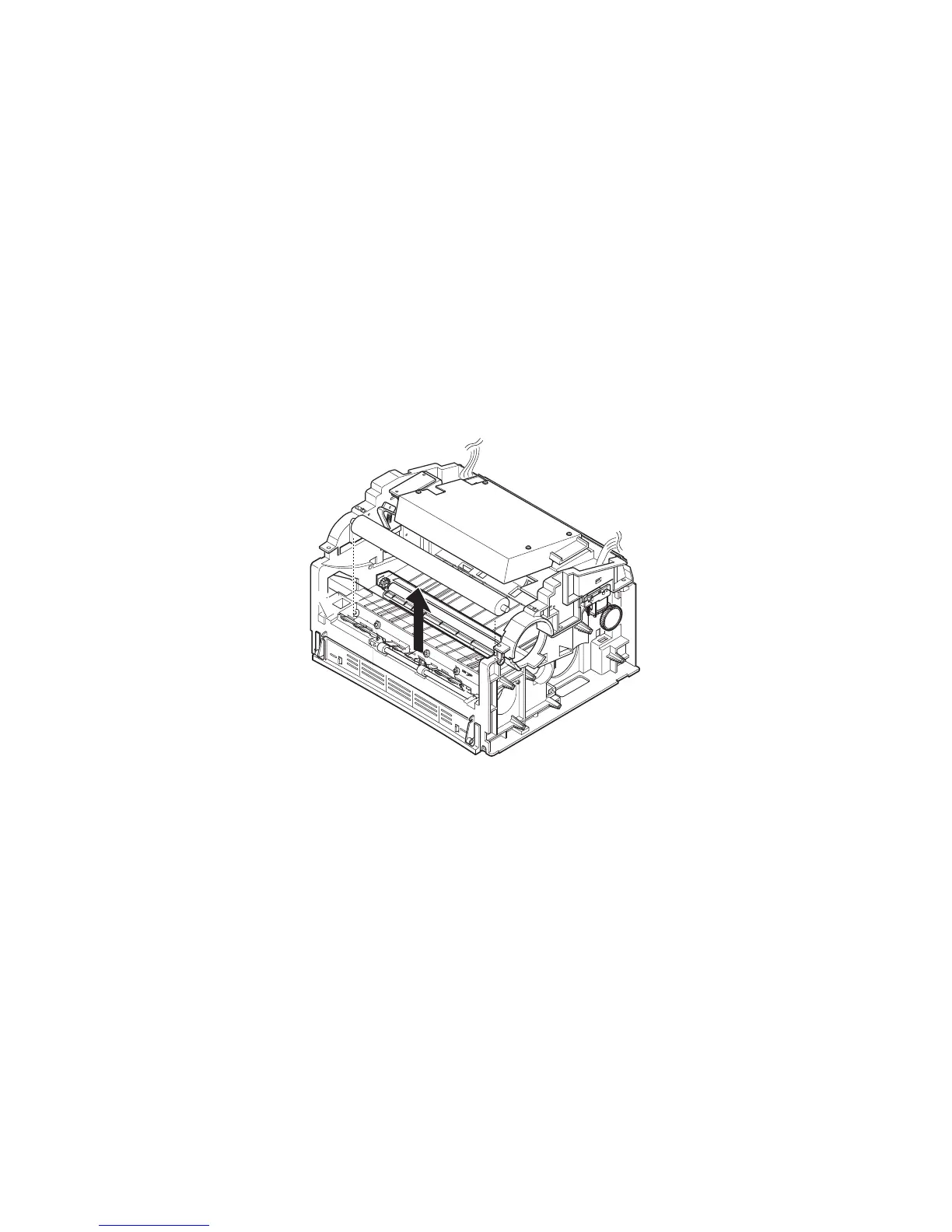

Figure 4.4.2a. Fuser Pressure Roller Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_313
To Next Page
