Repair Procedures 4-26 Xerox DocuPrint P8e Service Manual
REP 4.6 Electrical Modules
REP 4.6.1 Bottom Shield
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Print Cartridge (REP 4.5.1).
3 Turn the printer up side down (Figure 4.6.1a).
4 Remove the three screws that secure the Shield to the bottom of the printer (Figure 4.6.1a).
5 Lift and remove the shield (Figure 4.6.1a).

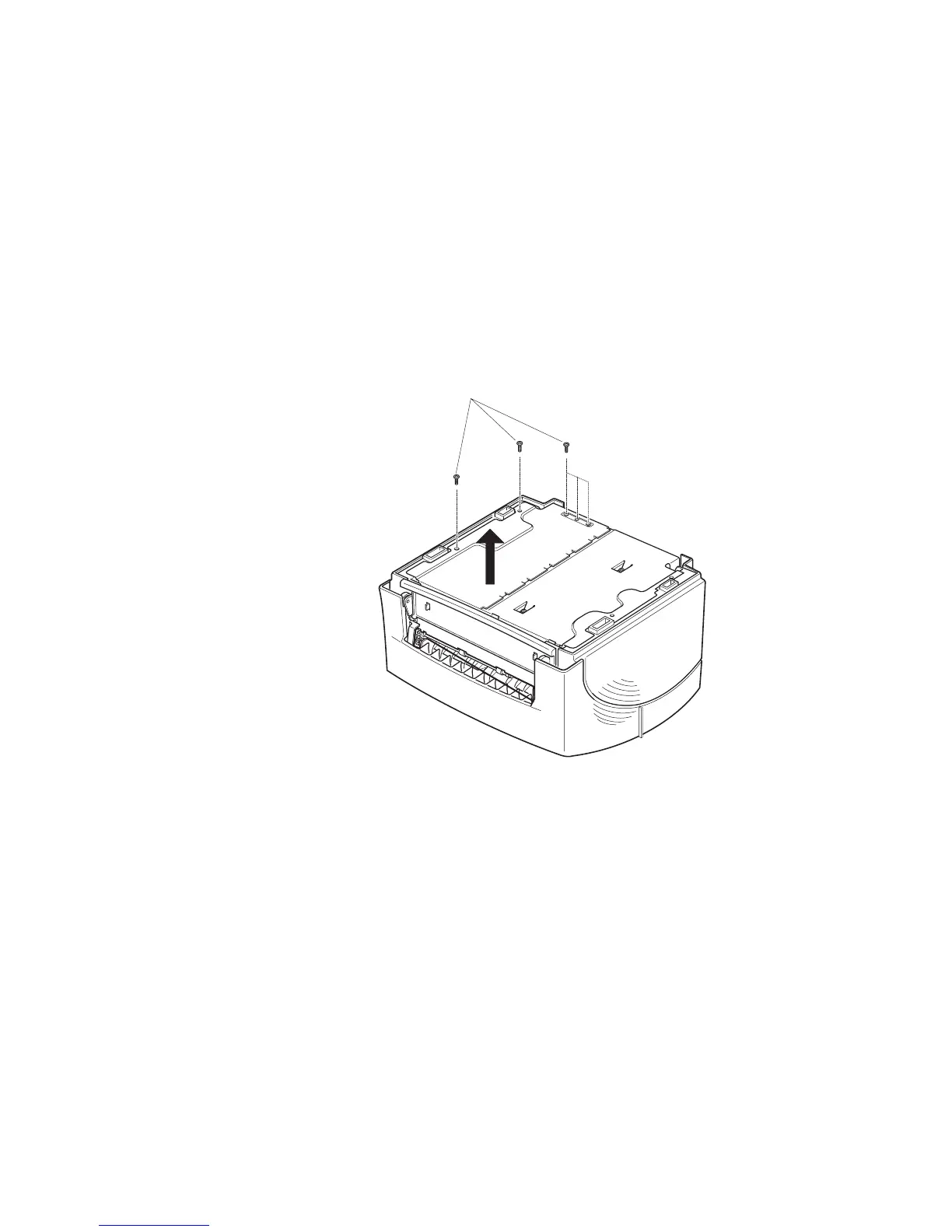

Figure 4.6.1a. Bottom Shield.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_239
4
5
