Xerox DocuPrint P8EX Service Manual

7/98
Xerox DocuPrint P8e Service Manual 4-29 Repair Procedures
REP 4.6.3 Controller PWB
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Print Cartridge (REP 4.5.1).
3 Remove the Rear Cover (REP 4.1.3).
4 Turn the printer up side down.
5 Remove the Bottom Shield (REP 4.6.1).
6 Disconnect J2 and J5 from the Controller PWB (Figure 4.6.3a).
7 Remove the four screws that secure the Controller PWB to the printer frame (Figure 4.6.3a).
Remove the Controller PWB.

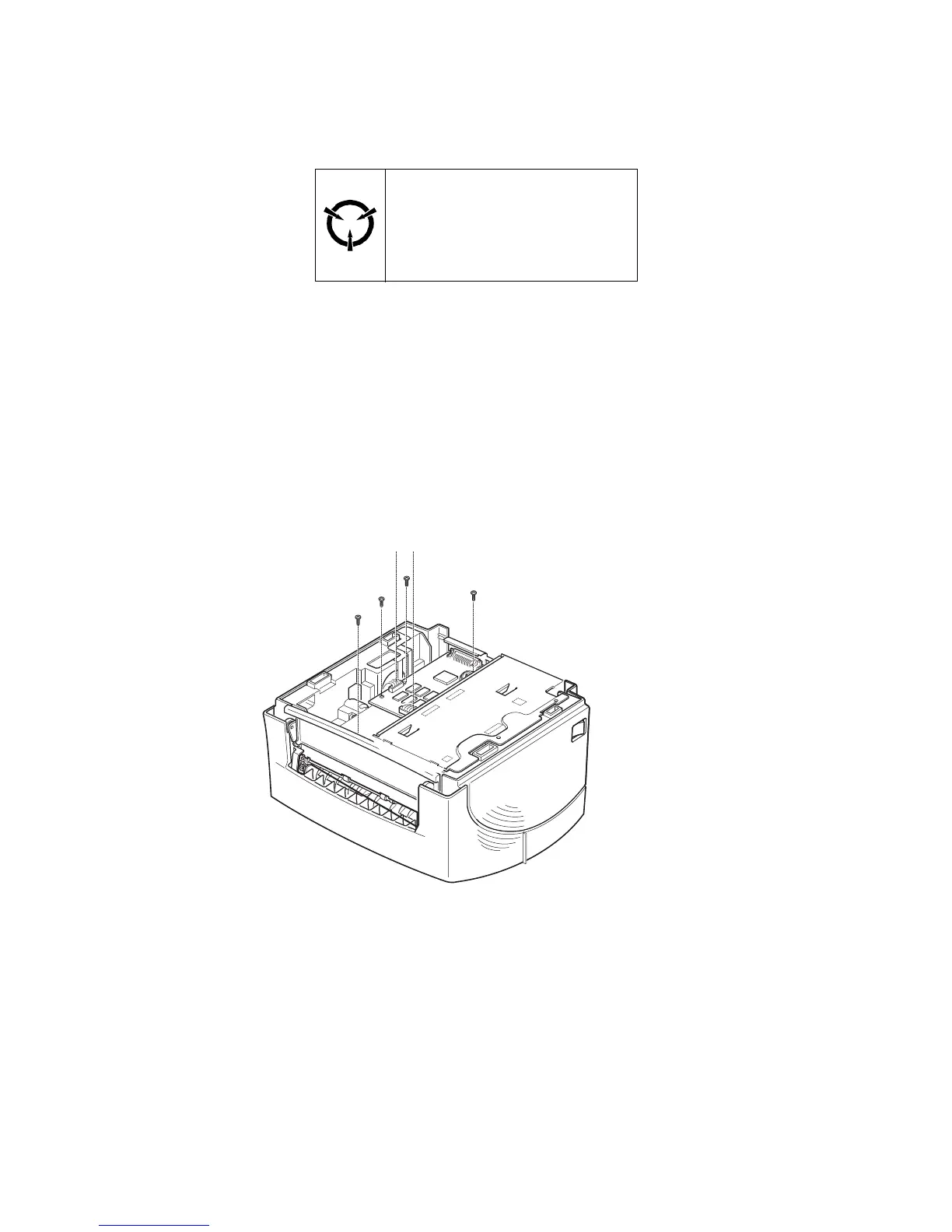

Figure 4.6.3a. Controller PWB Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
CAUTION
These components are susceptible
to electrostatic discharge. Observe
all ESD procedures to avoid
damage.
P8e_312
6
6
7
7
7
7
