7/98
Xerox DocuPrint P8e Service Manual 4-9 Repair Procedures
REP 4.2 Paper Feed
REP 4.2.1 Paper Feed Solenoid
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Right Side Covers (REP 4.1.5).
8 Remove the Bottom Shield (REP 4.6.1).
9 Remove the Gear Bracket (REP 4.5.2).
10 Remove the Controller PWB (REP 4.6.3).
11 Remove the Engine Controller PWB (REP 4.6.2).
12 Remove the solenoid connector from CN 402 of the Joint PWB.
13 Remove the two screws (and ground strap) that secure the Paper Feed Solenoid to the printer
frame (Figure 4.2.1a).

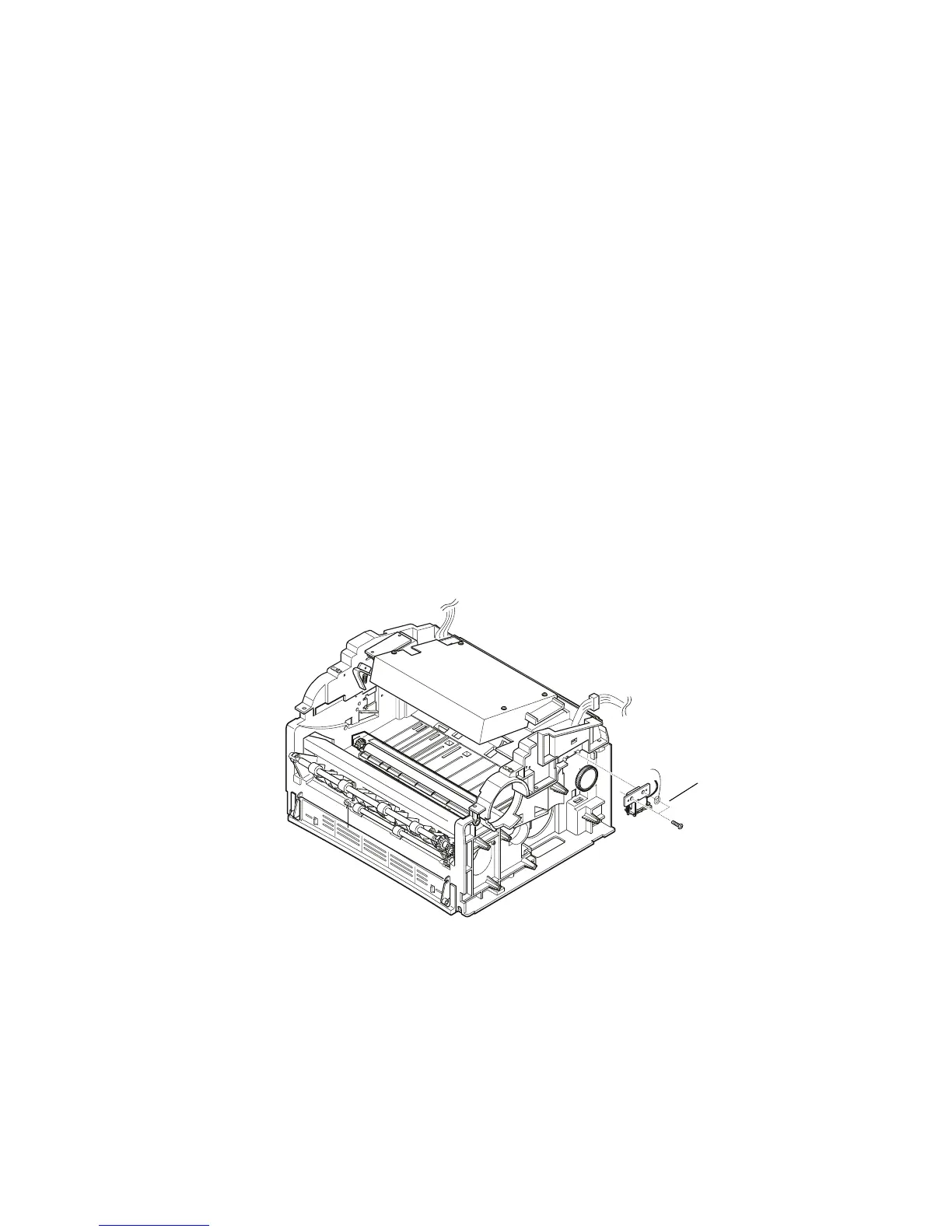

Figure 4.2.1a. Paper Feed Solenoid Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_311a1
