7/98
Repair Procedures 4-12 Xerox DocuPrint P8e Service Manual
REP 4.2.3 Paper Feeder Assembly
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Left and Right Side Covers (REP 4.1.5).
8 Remove the Gear Bracket (REP 4.5.2).
9 Remove the HVPS (REP 4.6.5).
10 Remove the Upper Frame Assembly (REP 4.2.2).
11 Remove the screw that secures the earth (ground) strap to the left end of the paper feed shaft
(Figure 4.2.3a).
12 Pull out on the locking tab of the left bearing and rotate the bearing 45 degrees clockwise (Figure
4.2.3a).
13 Press the locking tab and remove the frame insert.
14 Remove the E-Ring that secures the drive gear and clutch to the right end of the paper feed shaft
(Figure 4.2.3a). remove the Gear and Clutch.
15 Move the left end of the Paper Feeder Assembly toward the front of the printer and remove the
assembly.

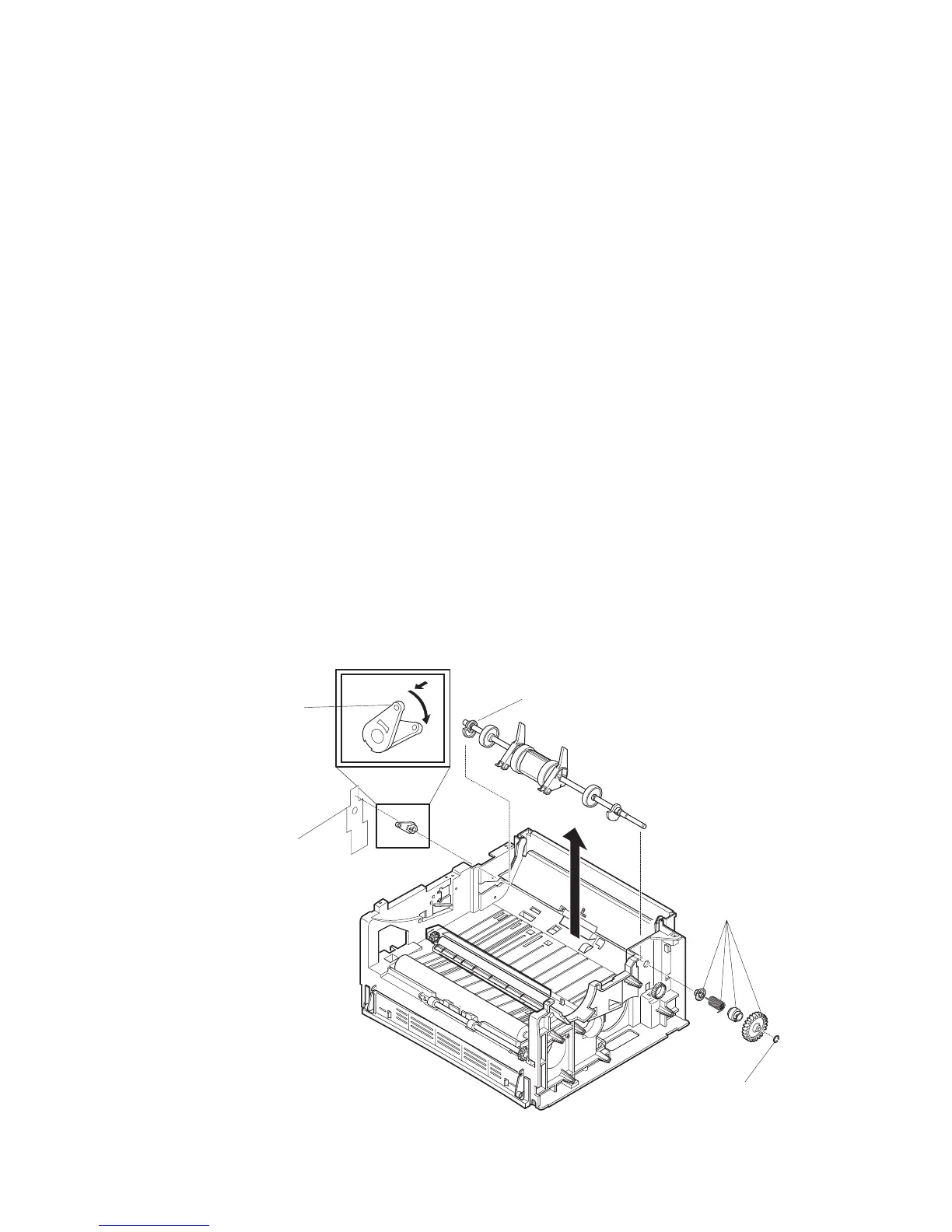

Figure 4.2.3a. Paper Feeder Assembly Removal.
11
12
14
14
15
P8e_314
To Next Page
