Repair Procedures 4-14 Xerox DocuPrint P8e Service Manual
REP 4.3 Paper Transportation and Sensing
REP 4.3.1 Pfeed Sensor
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Print Cartridge (REP 4.5.1).
3 Remove the Rear Cover (REP 4.1.3).
4 Turn the printer up side down.
5 Remove the Bottom Shield (REP 4.6.1).
6 Remove the Engine Controller PWB (REP 4.6.2).
7 Disconnect CN401 from the Joint PWB (Figure 4.3.1a).
8 Remove the two screws that secure the Pfeed Sensor to the printer frame (Figure 4.3.1a).
Remove the Pfeed Sensor.

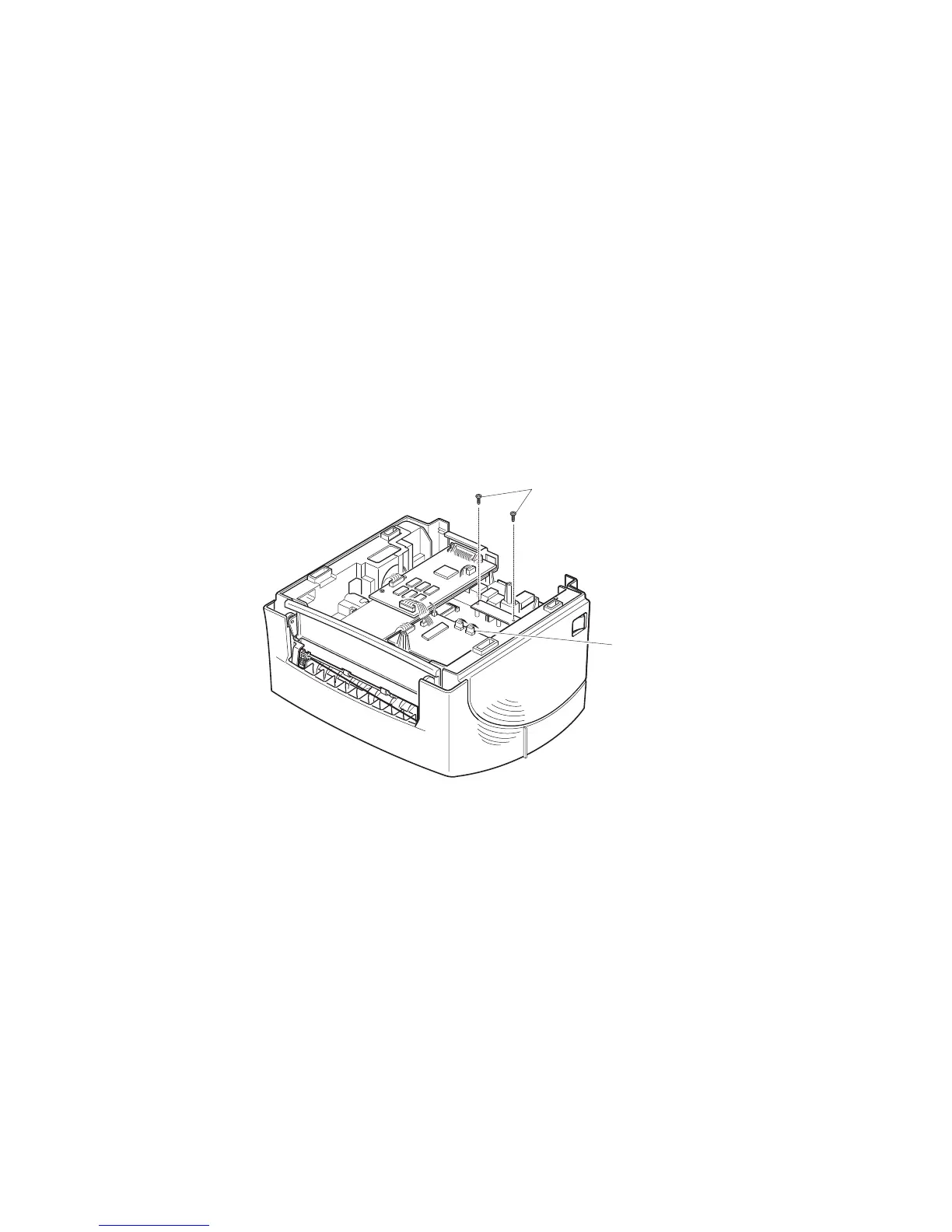

Figure 4.3.1a. Pfeed Sensor Removal.
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_318
7
8
