7/98
Repair Procedures 4-24 Xerox DocuPrint P8e Service Manual
REP 4.5.4 Transfer Roller
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
NOTE: Wear rubber gloves when removing the Transfer Roller. Touching the rubber part of the roller
can cause print quality problems.
3 Press the locking tabs on the bushings on each end of the Transfer Roller. Remove the Transfer
Roller and the bushings.

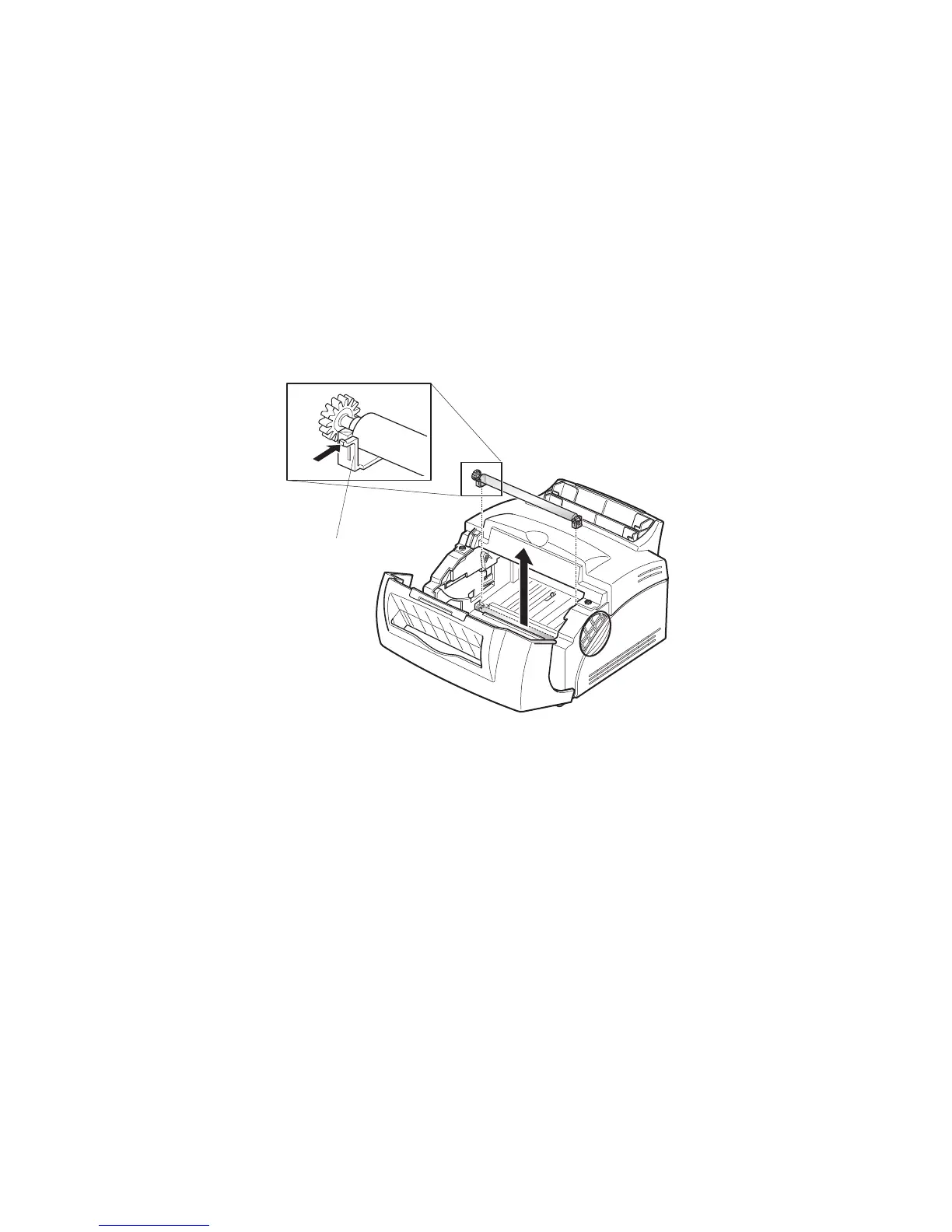

Figure 4.5.4a. Transfer Roller Removal.
Replacement
1 If installing a new Transfer Roller, remove the gear and bushings from the old roller and place on
the new roller.
2 The high voltage contact for the roller is located in the left side frame. Slide the Transfer Roller to
the right and insert the left bushing and gear into position.
3 Slide the roller to the left against the high voltage contact and insert the right bushing.
4 Assemble remaining components in reverse order.
5 Verify proper operation.
P8e_243
