Repair Procedures 4-10 Xerox DocuPrint P8e Service Manual
REP 4.2.2 Upper Frame Assembly
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Open the Front Cover and remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Left and Right Side Covers (REP 4.1.5).
8 Remove the Gear Bracket (REP 4.5.2).
9 Remove the HVPS (REP 4.6.5).
10 Remove the two screws that secure the Paper Feed Solenoid to the printer frame (Figure
4.2.2a). Remove the solenoid from the frame but do not disconnect the solenoid harness.
11 Remove the six screws that secure the Upper Frame Assembly (Figure 4.2.2a).
12 Lift-up the left side of the Upper Frame Assembly approximately 12 mm (0.5 in). Lift-up the rear of
the right side of the Upper Frame Assembly. Move the Upper Frame Assembly to the right to
disconnect the front hinge pin and remove (Figure 4.2.2b).

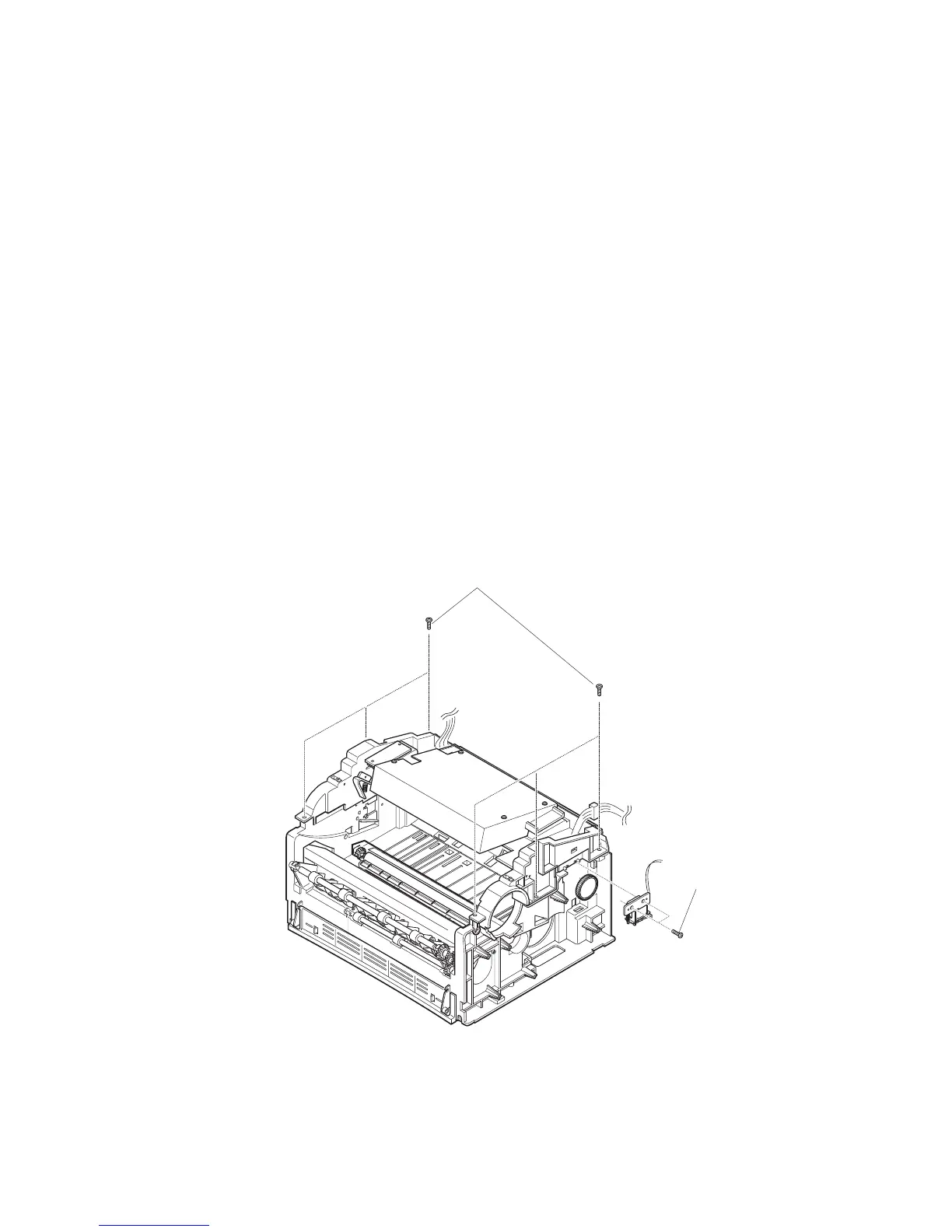

Figure 4.2.2a. Upper Frame Assembly Removal.
P8e_244
