7/98
Xerox DocuPrint P8e Service Manual 4-23 Repair Procedures
REP 4.5.3 Main Drive Motor Assembly
Removal
1 Switch the printer power off and disconnect the AC power cord.
2 Remove the Face Up Cover (REP 4.1.1).
3 Remove the Print Cartridge (REP 4.5.1).
4 Remove the Front Cover (REP 4.1.2).
5 Remove the Rear Cover (REP 4.1.3).
6 Remove the Top Cover (REP 4.1.4).
7 Remove the Right Side Cover (REP 4.1.5).
8 Remove the Gear Bracket (REP 4.5.2).
9 Remove the three screws that secure the Drive Motor Assembly to the Gear Bracket (Figure
4.5.3a).

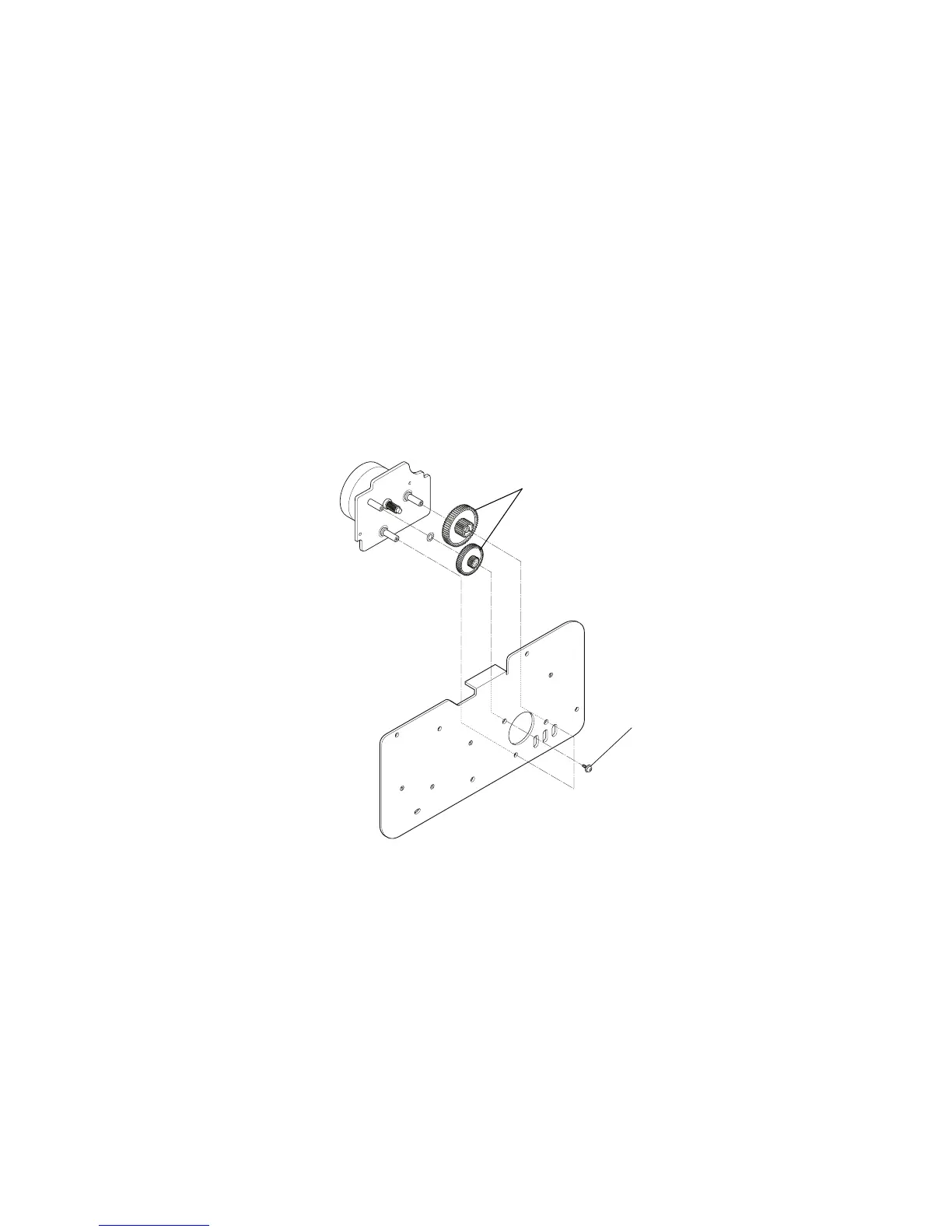

Figure 4.5.3a. Drive Motor Assembly.
10 Remove the two gears from the Drive Motor Assembly (Figure 4.5.3a).
Replacement
1 Assemble in reverse order.
2 Verify proper operation.
P8e_234a
9
10
