Chapter 3: Using the ChipScope Pro Core Inserter
Create CDC Project Step
The Create CDC Project step of the command line ChipScope Pro Core Inserter flow is used
to create an empty skeleton CDC project file, as shown in
Figure 3-2. The command line
signature for this step is:
inserter -create <project.cdc>
Note: This step does not bring up the ChipScope Pro Core Inserter graphical user interface (GUI).

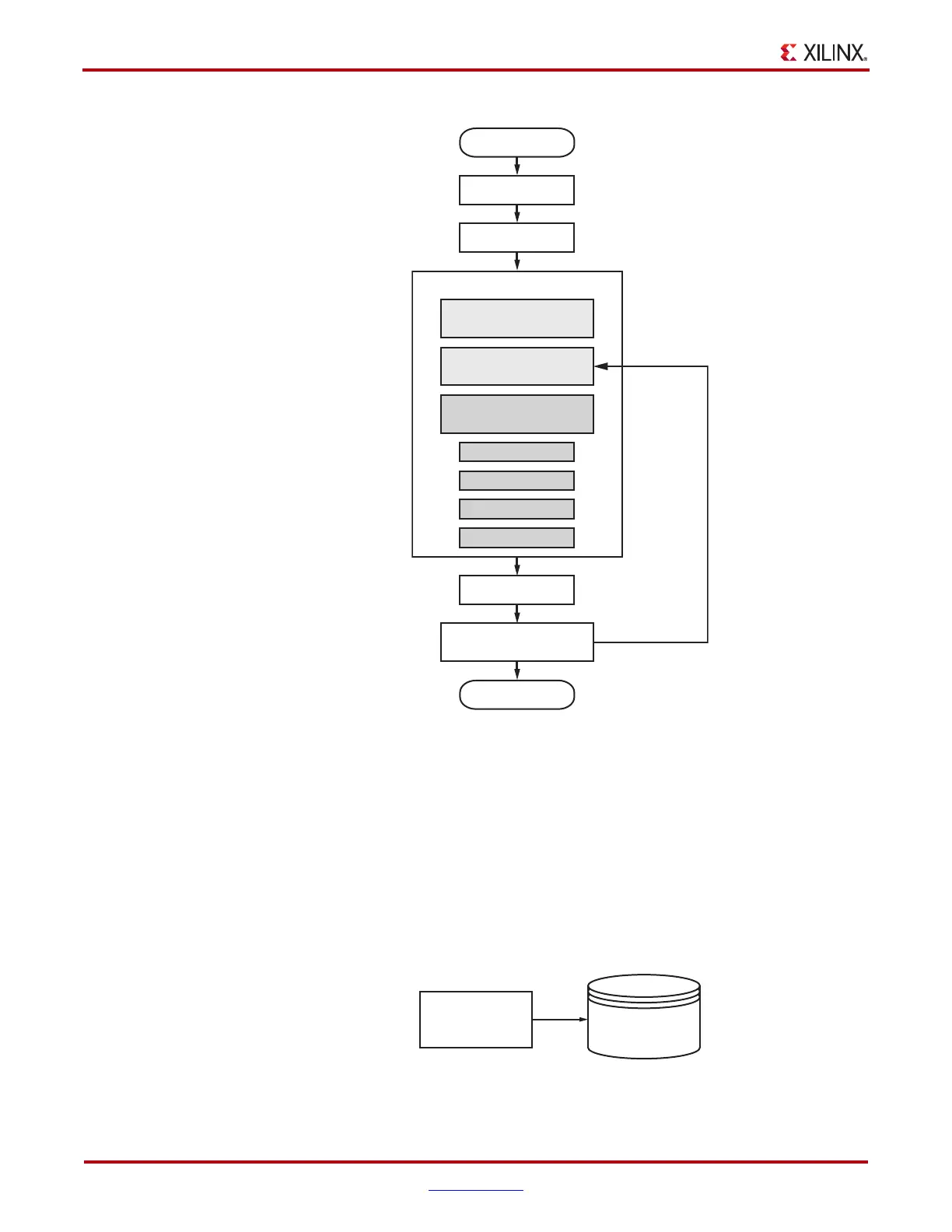

X-Ref Target - Figure 3-1
Figure 3-1: Command Line Core Inserter Flow
Start
Done
Design Entry
Design Synthesis
Device Programming
ChipScope Pro Core Inserter
Create CDC Project
ChipScope Pro Core
In-Circuit Verification
ChipScope Pro Core Inserter
Edit CDC Project
ChipScope Pro Core Inserter
Insert Cores
ngdbuild
map
par
bitgen
Design Implementation
inserter_cmd_line_flow_ch3_03_121306
X-Ref Target - Figure 3-2
Figure 3-2: Create CDC Project Step
inserter_create_mode_ch3_04_121306
ChipScope Pro
Core Inserter
Project.cdc
