MIPI CSI-2 RX Subsystem v4.0 73
PG232 July 02, 2019 www.xilinx.com
Chapter 5: Application Example Design
10. Click IP Catalog and select MIPI CSI-2 Rx Subsystem under Video Connectivity, then
double click on it.
°
For the Application Example Design flow, IP configuration is based on options
selected in ‘Application Example Design’ tab.
°
You can rename the IP component name.
11. Configure MIPI CSI-2 Rx Subsystem ‘Application Example Design’ tab, then click OK.
X-Ref Target - Figure 5-10

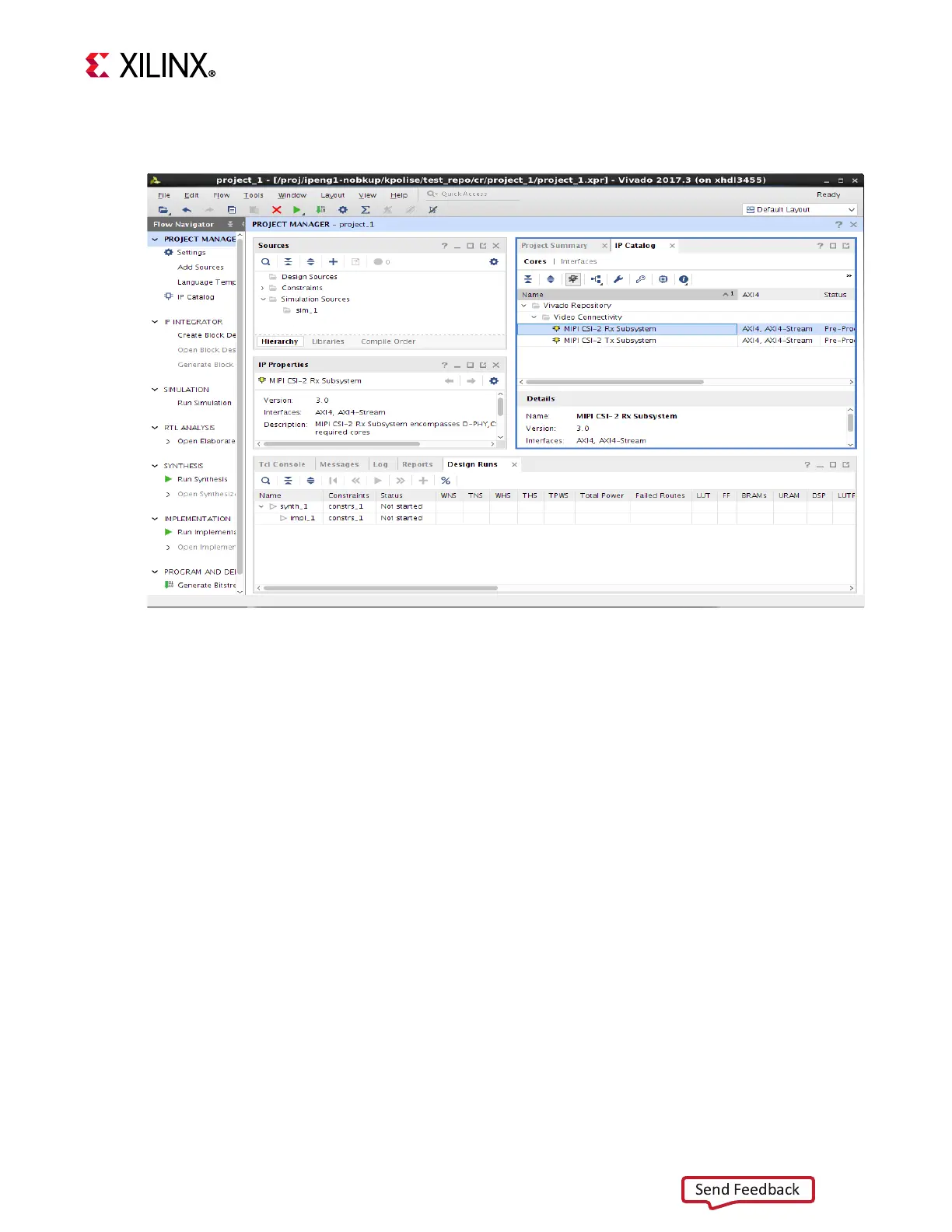

Figure 5-10: Vivado IDE - IP Catalog
Send Feedback
