• fmc_hpc0_connector_EV_CSI2Rx_l2: Applicable only for ZCU102 board with
FMC_HPC0 connector selected as LI-IMX274MIPI-FMC V1.0 during board selection for
2-lane MIPI CSI-2 Rx Subsystem.
• fmc_hpc0_connector_EV_CSI2Rx_l2: Applicable only for ZCU102 board with
FMC_HPC0 connector selected as LI-IMX274MIPI-FMC V1.0 during board selection for
4-lane MIPI CSI-2 Rx Subsystem.
This selection automatically configures the MIPI CSI-2 Rx Subsystem to support
IMX274 camera sensor which can be connected to EV FMC card. For more information,
see the LI-IMX274MIPI-FMC product page.
Configuration Tab
The Configuration tab page provides core related configuration parameters. The subsystem
configuration screen is shown in Figure 4-2.
X-Ref Target - Figure 4-2

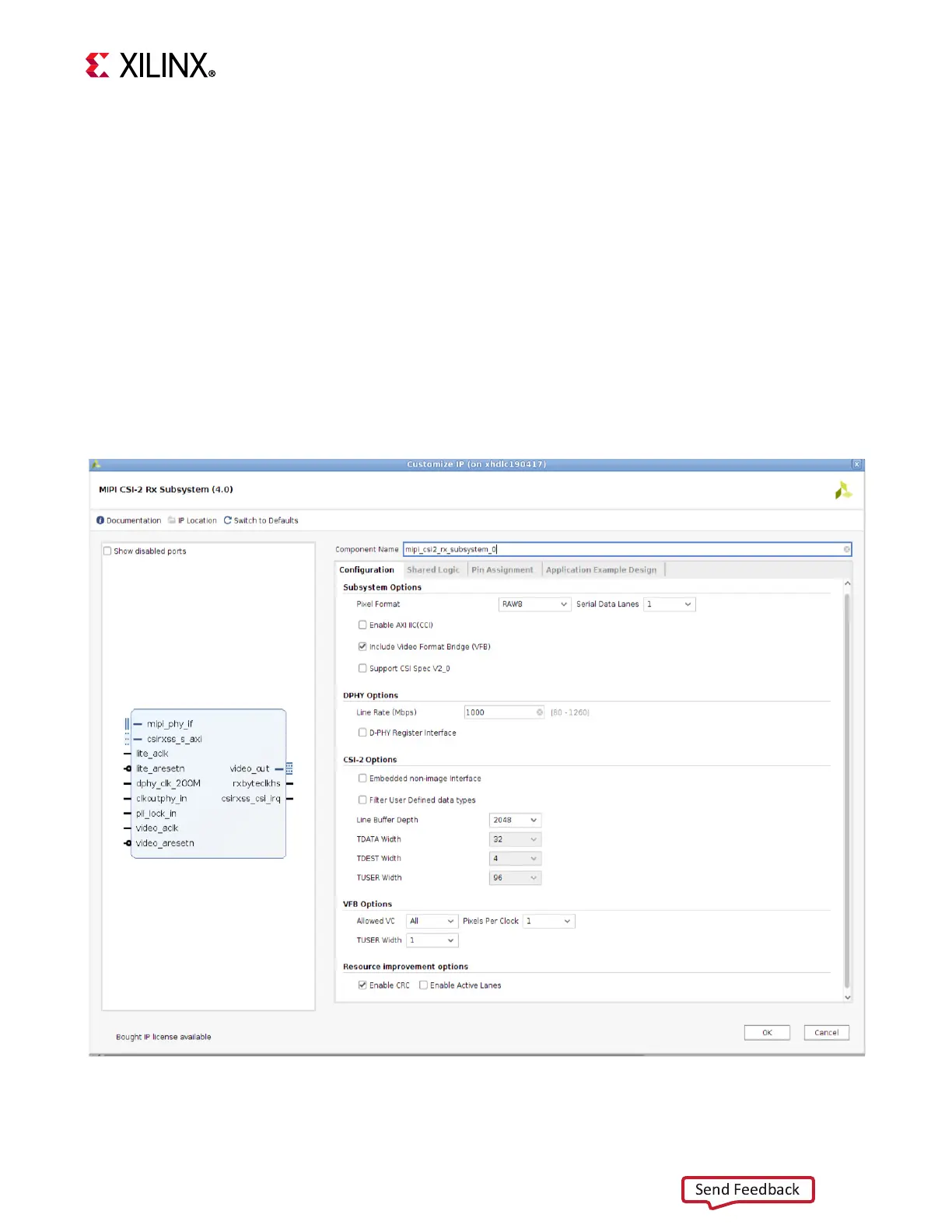

Figure 4-2: Subsystem Customization Screen - Configuration
