Chapter 3: Board Component Descriptions
AES3 Audio
[Figure 2-1, callout 44]
AES3 (also referred to as AES/EBU) is a standard for the exchange of digital audio signals
between professional audio devices. AES3 was jointly developed by the Audio Engineering
Society (AES) and the European Broadcasting Union (EBU). An AES3 signal can carry two
channels of PCM audio over several transmission media including balanced lines,
unbalanced lines, and optical fiber. AES3 has been incorporated into the International
Electrotechnical Commission's standard IEC 60958. Ref_1_IEC 60958-1 2008,
Ref_2_IEC_60958-1_2ndEd_2004-03. The AES3 audio circuit is shown in Figure 3-28 and the
connections are listed in Table 3-31.

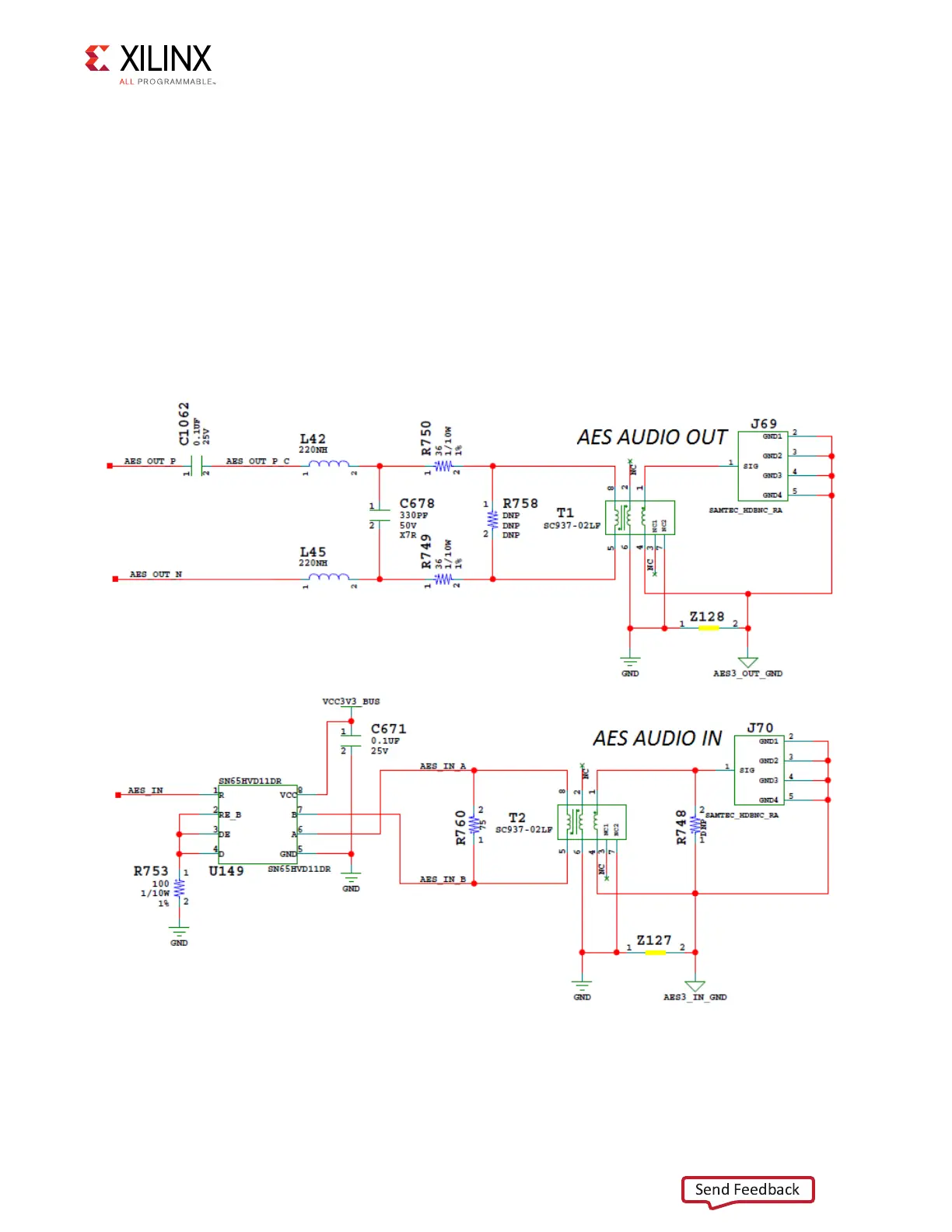

X-Ref Target - Figure 3-28
Figure 3-28: AES Audio
X19192-050117
