ZCU106 Board User Guide 84
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
Prototype Header
[Figure 2-1, callout 42]
The ZCU106 evaluation board provides a 2x12 male pin prototype header J3 that makes ten
GPIO connections available. Figure 3-32 shows connector J3 with its MPSoC (U1)
connections.
AP10 PMOD1_5 LVCMOS18 J87.4
AP12 PMOD1_6 LVCMOS18 J87.6
AN12 PMOD1_7 LVCMOS18 J77.8
Table 3-33: XCZU7EV U1 to PMOD Connections (Cont’d)
XCZU7EV (U1) Pin Net Name I/O Standard PMOD Pin
X-Ref Target - Figure 3-32

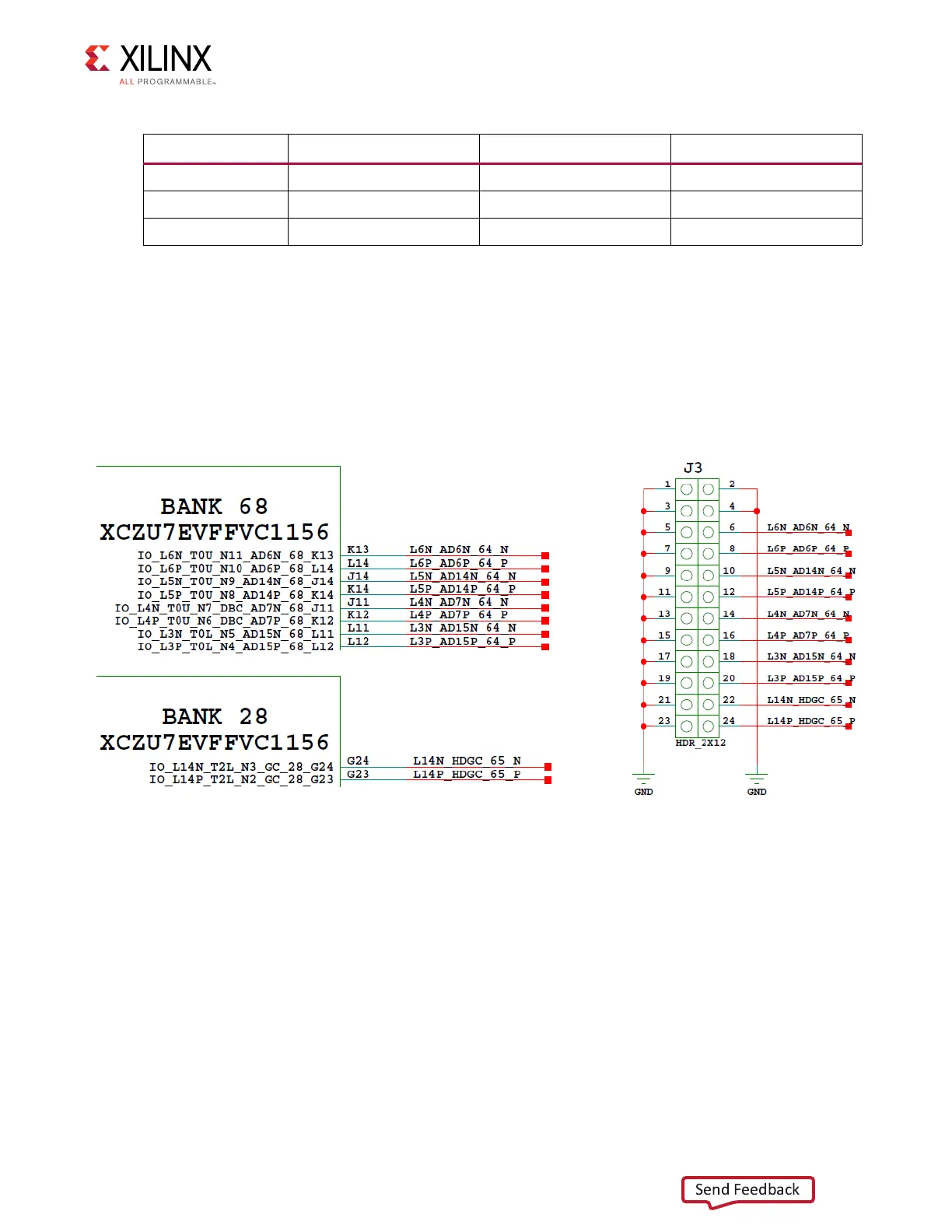

Figure 3-32: Prototype Header J3
