Xilinx ZCU106 User Manual

ZCU106 Board User Guide 91
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
Figure 3-37 shows the power and status LEDs area of the board.
GTH Transceivers
[Figure 2-1, callout 1]
The Zynq UltraScale+ XCZU7EV MPSoC has 20 GTH gigabit transceivers (16.3 Gb/s capable)
on the PL-side.
The GTH transceivers in the XCZU7EV device are grouped into four channels referred to as
Quads. The reference clock for a Quad can be sourced from the Quad above or the Quad
below the GTH Quad of interest. There are five GTH Quads on the ZCU106 board with
connectivity as listed here:
Quad 223:
• MGTREFCLK0 - HDMI_SI5324_OUT_C_P/N
• MGTREFCLK1 - HDMI_RX_CLK_C_P/N
• Contains three GTH transceivers allocated to HDMI_TX/RX[2:0]_P/N
• Contains one GTH transceiver allocated to FMC_HPC1_DP0_C2M/M2C_P/N
X-Ref Target - Figure 3-37

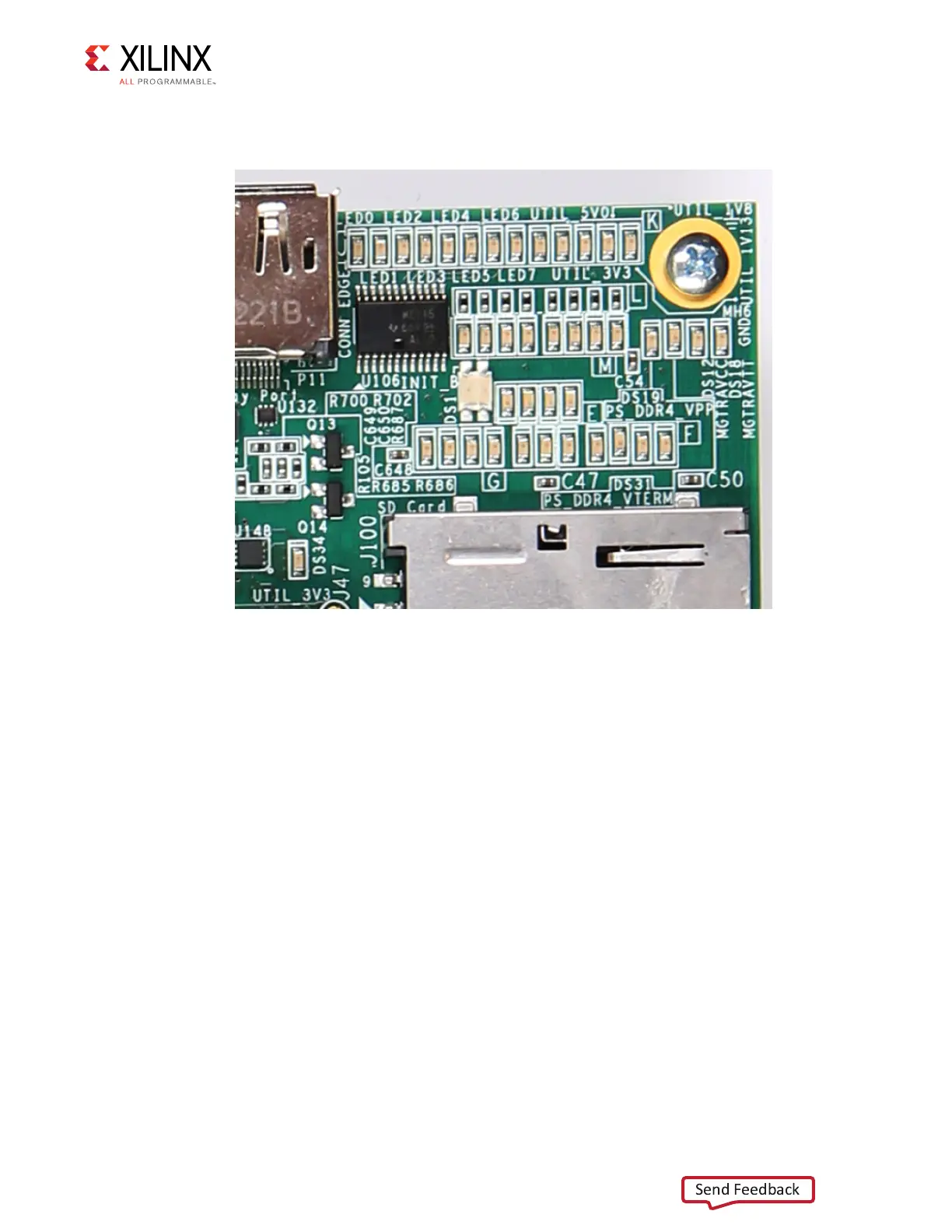

Figure 3-37: Power and Status LEDs
X19197-050117
