Xilinx ZCU106 User Manual

ZCU106 Board User Guide 45
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
Programmable Logic JTAG Programming Options
[Figure 2-1, callouts 7 and 39]
ZCU106 JTAG chain:
• J2 USB micro AB connector connected to U152 FTDI USB JTAG bridge
• J8 2x7 2 mm shrouded, keyed JTAG pod flat cable connector
• J6 2x10 ARM JTAG male pin header
The ZCU106 board JTAG chain is shown in Figure 3-6.
For more details on the FTDI FT232HL USB UART, see [Ref 26].
X-Ref Target - Figure 3-6

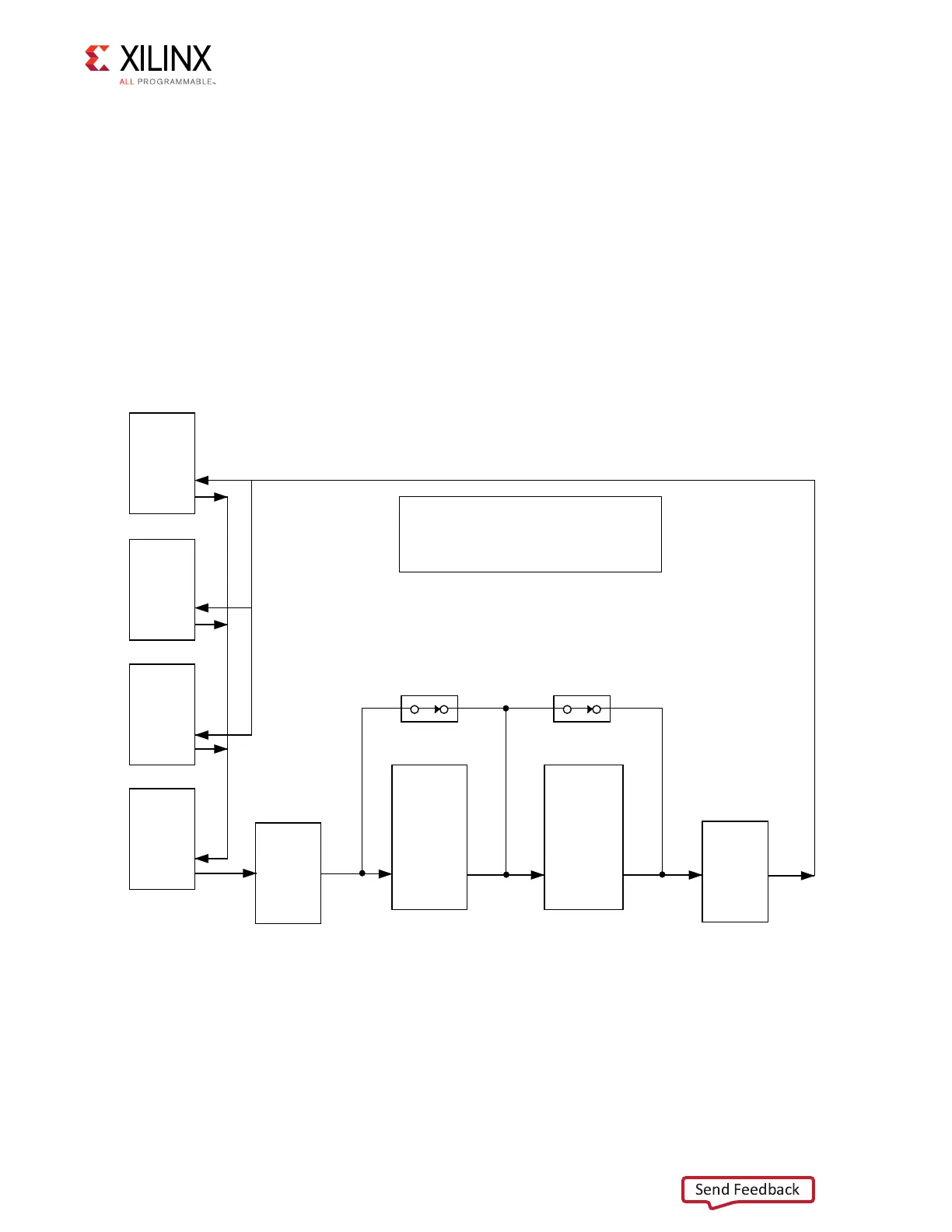

Figure 3-6: JTAG Chain Block Diagram
JTAG
Header
TDO
TDI
JTAG
Module
TDO
TDI
JTAG
Header
TDO
TDI
JTAG
IF
TDI
TDO
J6
U152
J8
U1
J6: 2x10 ARM JTAG male pin header
U152: FTDI USB JTAG bridge
J8: 2x7 2 mm shrouded, keyed JTAG
pod flat cable connector
U1: XCZU7EV MPSoC
JTAG
TDO
BUF
FMC HPC0
Connector
TDI TDO
FMC HPC1
Connector
TDI TDO
SPST Bus Switch SPST Bus Switch
N.C. N.C.
J5
J4
U48
U27
U24
JTAG
TDO
BUF
U11
X19173-022218
Send Feedback
