ZCU106 Board User Guide 86
UG1244 (v1.0) March 28, 2018 www.xilinx.com
Chapter 3: Board Component Descriptions
User I/O
[Figure 2-1, callouts 22-25]
The ZCU106 board provides these user and general purpose I/Os:
• Eight user LEDs (callout 22)
°
GPIO_LED[7-0]: DS38, DS37, DS39, DS40, DS41, DS42, DS43, DS44
• Five user pushbuttons and CPU reset switch (callouts 24 and 25)
°
GPIO_SW_[NESWC]: SW18, SW17, SW16, SW14, SW15
°
CPU_RESET: SW20
• 8-position user DIP switch (callout 23)
°
GPIO_DIP_SW[7:0]: SW13
Figure 3-34 through Figure 3-36 show the GPIO circuits. Table 3-35 lists the GPIO to
XCZU9EG U1 connections.
X-Ref Target - Figure 3-34

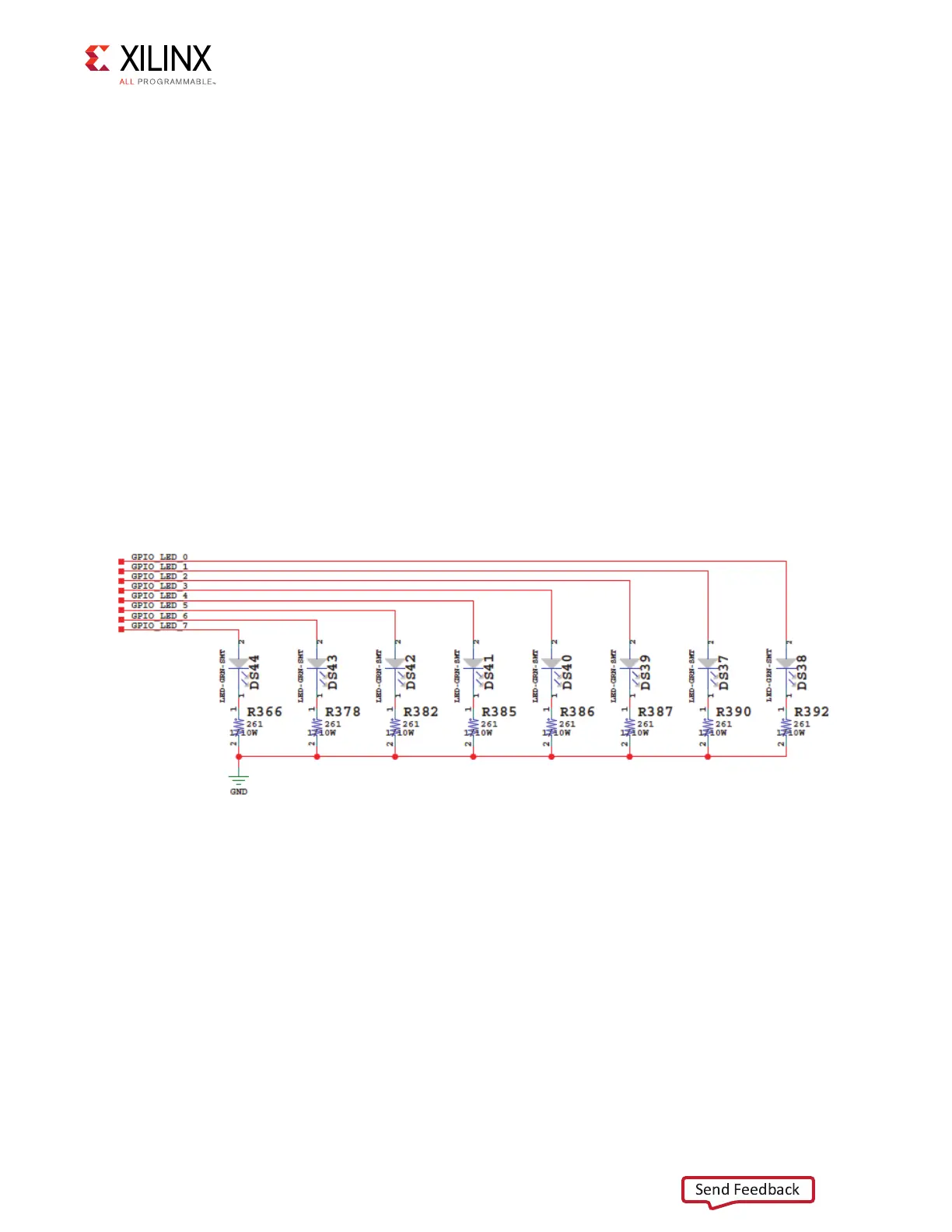

Figure 3-34: GPIO LEDs
X16539-050117
