Chapter 3: Board Component Descriptions
X-Ref Target - Figure 3-36

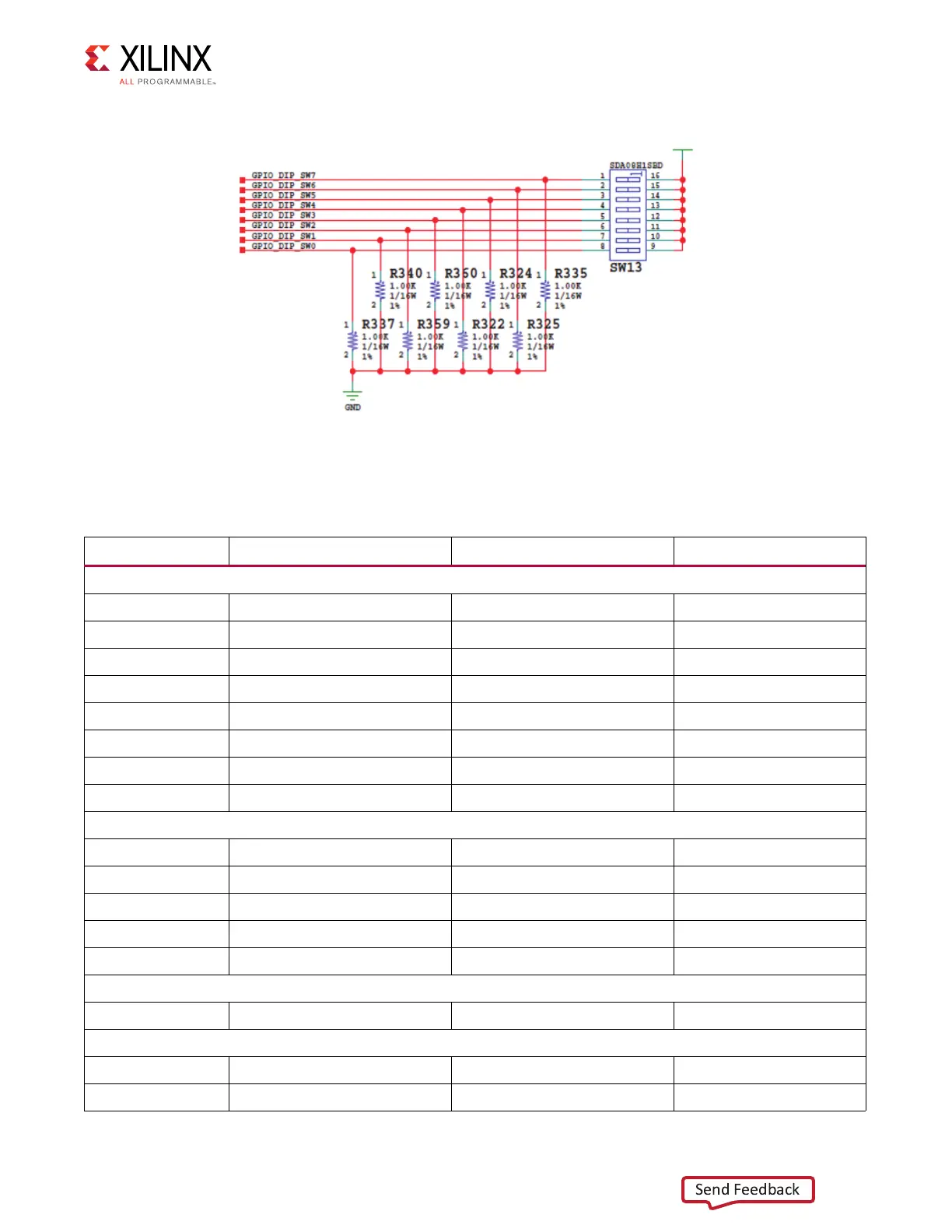

Figure 3-36: GPIO 8-Pole DIP Switch
VADJ_FMC
X16542-052417
Table 3-35: XCZU7EV U1 to GPIO Connections
XCZU7EV (U1) Pin Net Name I/O Standard Device
GPIO LEDs (Active High)
(1)
AL11 GPIO_LED_0 LVCMOS12 DS38.2
AL13 GPIO_LED_1 LVCMOS12 DS37.2
AK13 GPIO_LED_2 LVCMOS12 DS39.2
AP8 GPIO_LED_3 LVCMOS12 DS40.2
AM8 GPIO_LED_4 LVCMOS12 DS41.2
AM9 GPIO_LED_5 LVCMOS12 DS42.2
AM10 GPIO_LED_6 LVCMOS12 DS43.2
AM11 GPIO_LED_7 LVCMOS12 DS44.2
Directional Pushbuttons (Active High)
AG13 GPIO_SW_N LVCMOS12 SW18.3
AC14 GPIO_SW_E LVCMOS12 SW17.3
AK12 GPIO_SW_W LVCMOS12 SW14.3
AP20 GPIO_SW_S LVCMOS12 SW16.3
AL10 GPIO_SW_C LVCMOS12 SW15.3
CPU Reset Pushbutton (Active High)
G13 CPU_RESET LVCMOS18 SW20.3
GPIO DIP SW (Active High)
A17 GPIO_DIP_SW0 LVCMOS18 SW13.8
A16 GPIO_DIP_SW1 LVCMOS18 SW13.7
