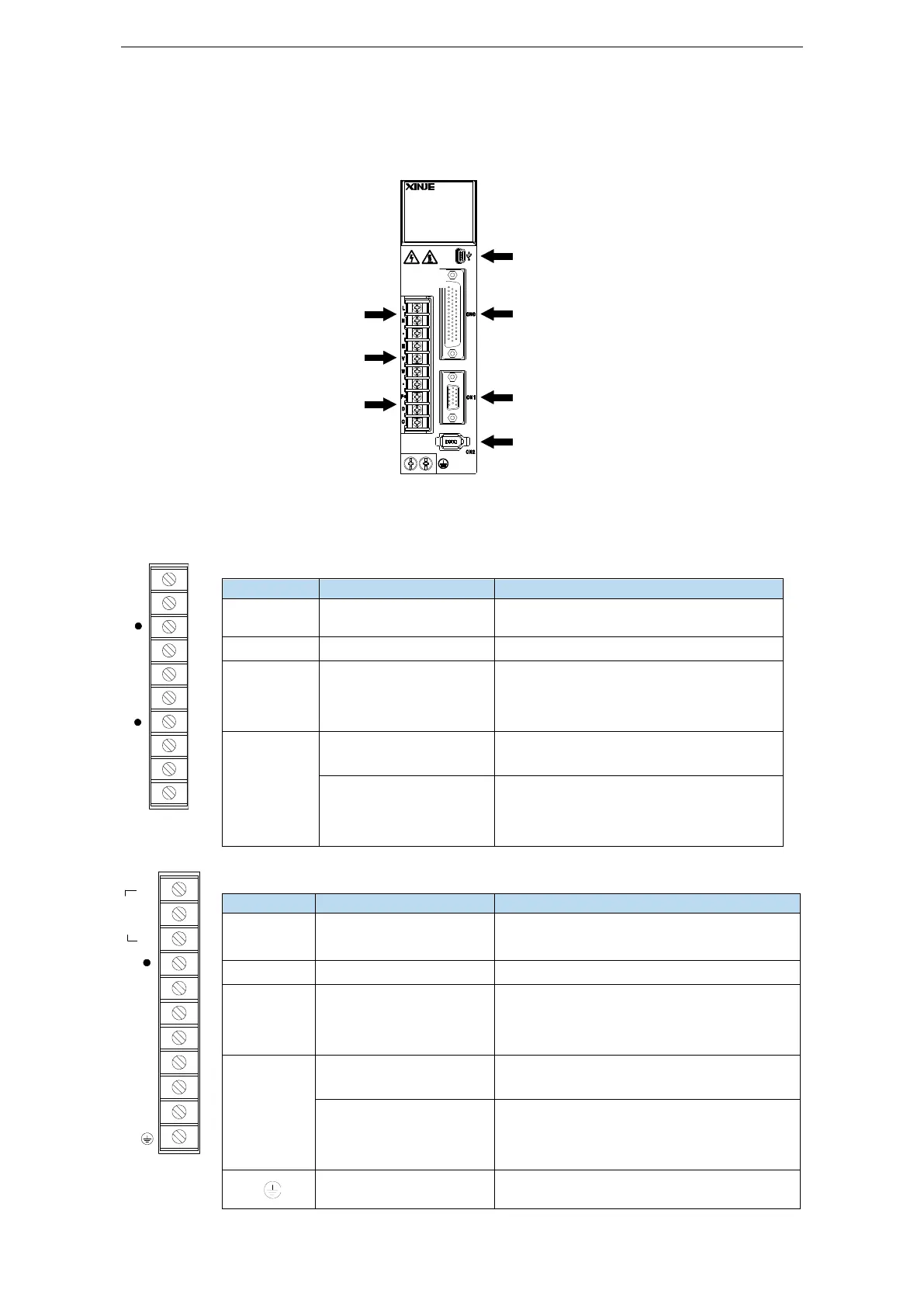

3.1 Main circuit wiring
3.1.1 Servo driver terminal arrangement
3.1.2 Main circuit terminals
W
U
V
N
L
D
P+
C
 DS5F-20P1-PTA, DS5F-20P2-PTA, DS5F-20P4-PTA, DS5F-20P7-PTA
Terminal
Function
Explanation
L/N
Power supply input of
main circuit
Single phase AC 200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling
fin, please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25=
power value, P0-26= resistor value
W
R
220V
D
P+
C
U
V
T
S
 DS5F-21P5-PTA, DS5F-22P3-PTA, DS5F-22P6-PTA
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3-phase (R,S,T) AC200~240V, 50/60Hz
Single phase (R,T) AC200~240V, 50/60Hz
●
Vacant terminal
-
U, V, W
Motor terminals
Connect the motor
Note: the ground wire is on the cooling fin,
please check it before power on!
P+, D, C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C
External regenerative
resistor
Connect regenerative resistor between P+
and C, disconnect P+ and D, P0-25= power
value, P0-26= resistor value
Ground terminal
Connect to ground terminal of motor, then
connect to the ground
RS232 port
Encoder output
Encoder interface
Power supply
Motor wiring
Regenerative
resistor
Multifunction terminal
