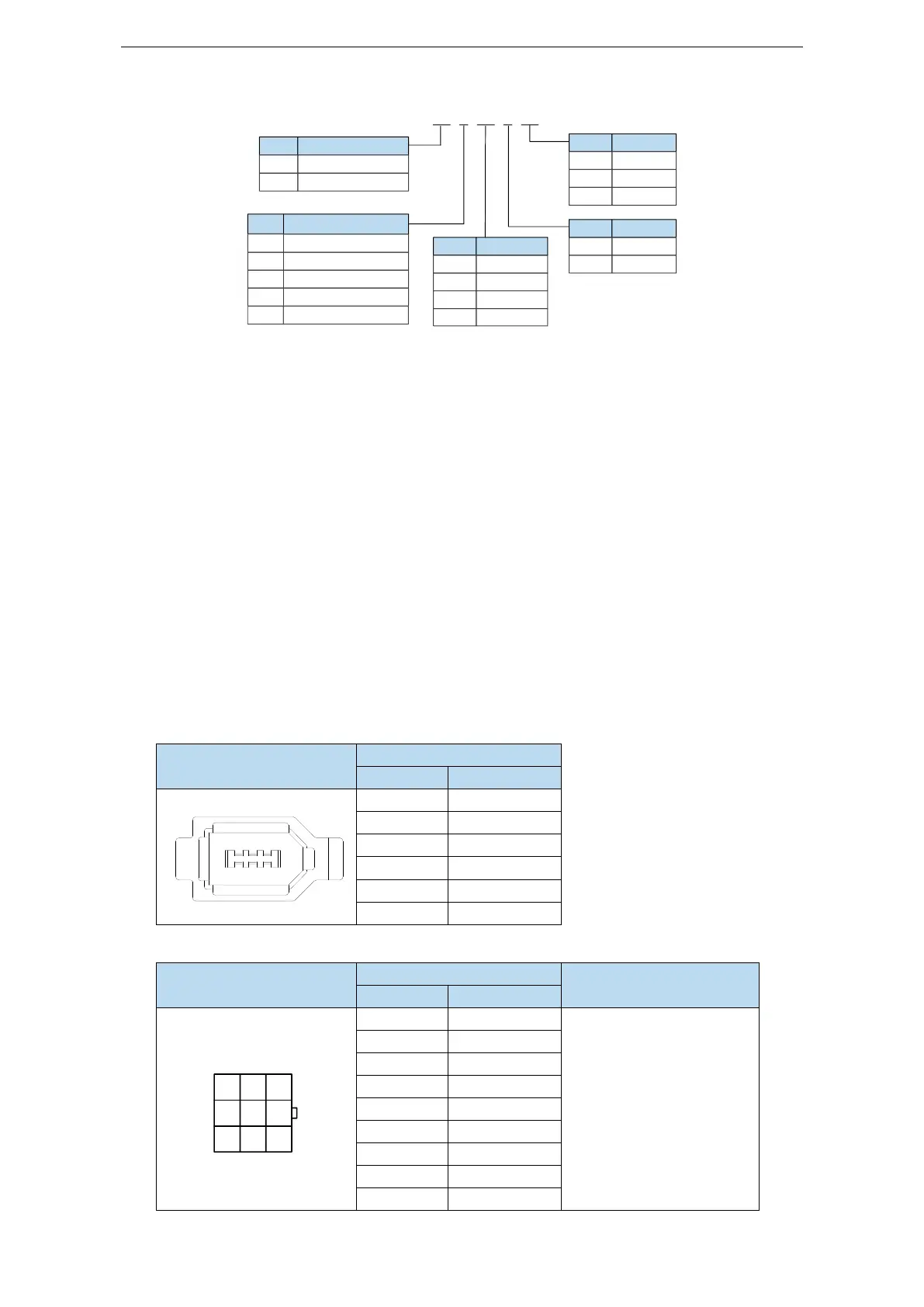

 Power cable model
Display Length (M)
Display
Plug type
P
4-core amp plug
W
6-core waterproof small
aviation plug
Display Cable type
CM Normal
CMT High flexibility
Display Cable type
L 4-core small aviation plug
XL 4-core medium aviation plug
CM-L 15-M-03
Display
Diameter(mm²)
07 0.75
15 1.5
25 2.5
60 6
03 3
05 5
08 8
M
Magnetic
encoder
Empty
Optical encoder
D O terminal
 Brake cable explanation
 For 80 and below flange motors with suffix S01, the brake cable model shall be selected:
CB-P03-length (common material) / CBT-P03-length (high flexible material).
 Suitable for 750W and below motor with suffix S02: CMBT-W07-M-length.
 For the MS5G 130 flange medium inertia brake motor, the cable shall be selected integrated
power cable and brake cable type.
 The standard wiring length of Xinje is 2m, 3m, 5m, 8m, 10m, 12m, 16m and 20m.
1.3.2 Description of each part
 Encoder cable
(1) Pin definition of encoder on servo driver side
Connector appearance
Pin definition
No.
Definition
1
2
6
5
4
3
1
5V
2
GND
3
/
4
/
5
485+
6
485-
(2) Cable connection of encoder on motor side
Connector pins
Pin definition
Suitable model
No.
Definition
1
2
3
4
5
6
7
8
9
1
Battery +
40, 60, 80 flange
-S01 motor
2
Battery -
3
Shielded cable
4
485+
5
485-
6
/
7
5V
8
GND
9
/
