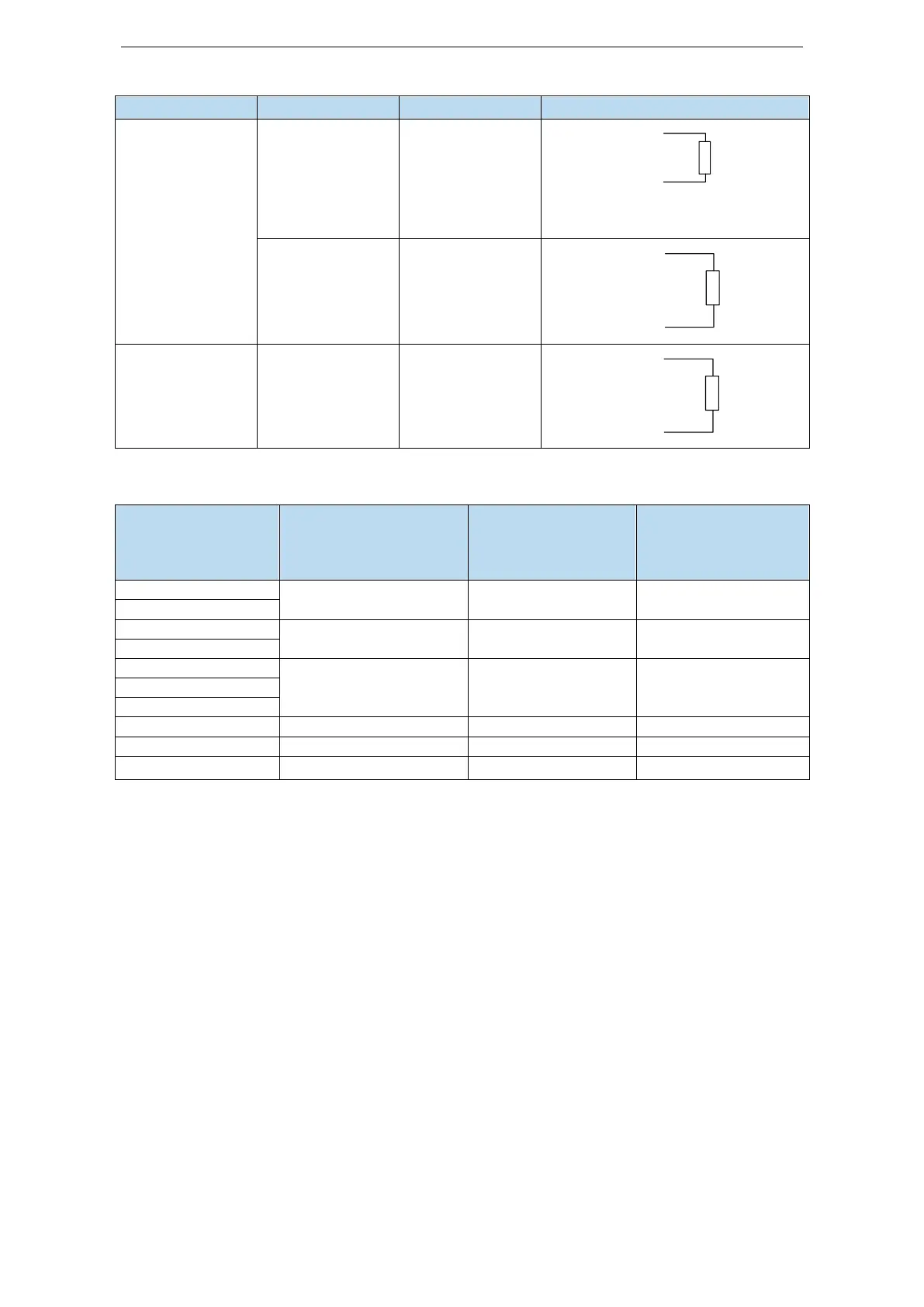

1. Hardware wiring
Power
Hardware terminal
Notes
Below 5.5KW
P+, D
Built-in resistor
P+
D
C
P+, C
External resistor
P+
D
C
5.5KW and above
P+, PB
External resistor
P+
PB
2. Recommended brake resistance specifications
Servo driver model
min resistance (cannot be
less than this value)
External regeneration
resistance
(recommended
resistance)
External regeneration
resistance
(recommended power
value)
DS5F-20P1-PTA
50Ω
50Ω-100Ω
Above 200W
DS5F-20P2-PTA
DS5F-20P4-PTA
40Ω
40Ω-100Ω
Above 500W
DS5F-20P7-PTA
DS5F-21P5-PTA
25Ω
25Ω-50Ω
Above 1000W
DS5F-22P3-PTA
DS5F-22P6-PTA
DS5F-43P0-PTA
55Ω
55Ω - 75Ω
Above 1000W
DS5F-45P5-PTA
25Ω
25Ω - 65Ω
Above 2000W
DS5F-47P5-PTA
25Ω
25Ω - 50Ω
Above 2000W
Note:
(1) The smaller the resistance is, the faster the discharge will be, but it is easy to break down the
resistance if it is too small. Therefore, the lower limit should be as close as possible but not less than
the lower limit when selecting the type.
(2) When wiring, please use high temperature resistant and flame-retardant wires, and pay attention that
the regenerative resistance surface does not contact with the wires.

Xinje DS5F-43P0-PTA Specifications

General

Category	Servo Drives
Model	DS5F-43P0-PTA
Input Voltage	220V AC
Control Mode	Position, Speed, Torque
Encoder Type	Incremental Encoder
Communication Interface	RS485
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature
