E
CRANKCASE, CRANKSHAFT AND CAMSHAFT
POWR
1
2
3
4
5
6
7
1
2
3
4
5
6
7

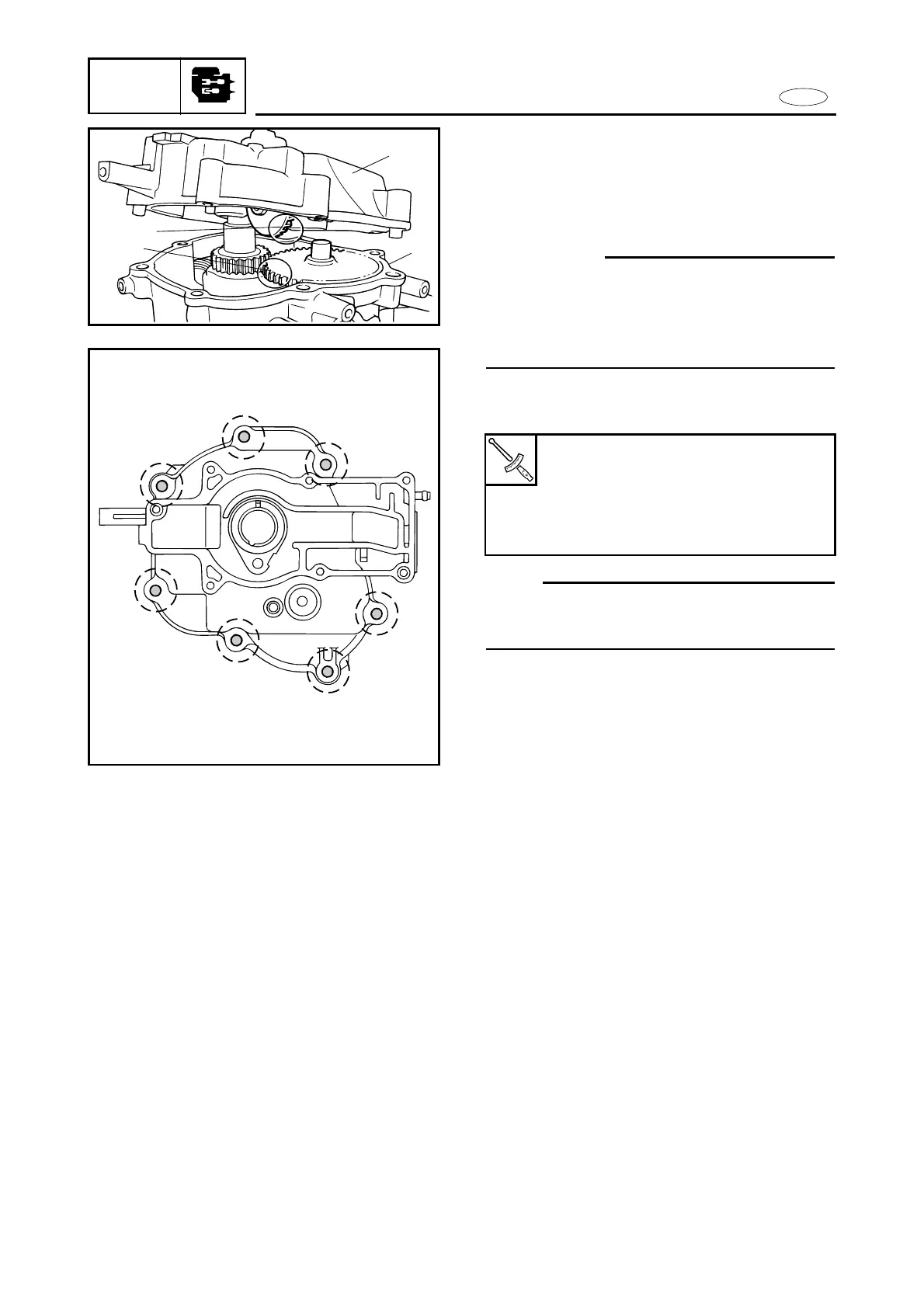

3. Tighten:
9Bolt (crankcase)
NOTE:
Make sure tightening sequence is
observed as shown.
5-39
Bolt :
1st :10 Nm
(1.0 m•kg, 7.2 ft•lb)
2nd:22 Nm
(2.2 m•kg, 16 ft•lb)
a
b
1
2
2. Install:
9Dowel pin
9Gasket (crankcase)
9Crankcase 1
9Cylinder body 2
cC
When assembling the crankcase and cylin-
der body, make sure that the camshaft
gear teeth
aa
mesh with the oil splash
gear
bb
.
