DRIVE SHAFT, FORWARD GEAR AND SHIFT ROD

LOWR

6-22

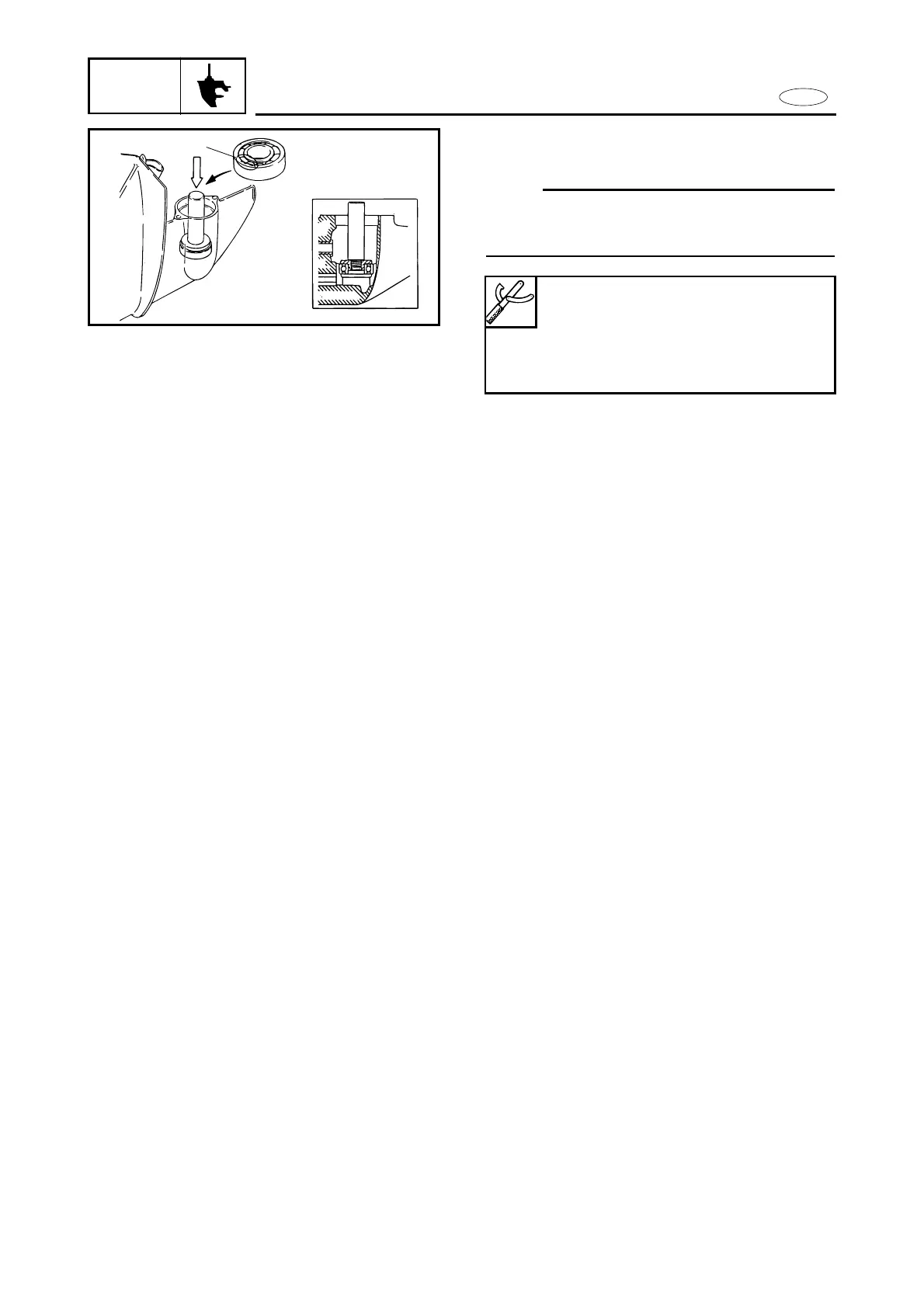

4. Install:

9Ball bearing (forward gear)

NOTE:

Install the ball bearing with its manufactur-

er’s marks b facing the forward gear.

Bearing installer:

(Bearing inner race attachment)

YB-06016/90890-06634

Driver rod:

YB-06071/90890-06605
