Yamaha Motif XS Series User Manual

109
MOTIF XS6/MOTIF XS7/MOTIF XS8
Y
Y'
PRE1/PIANO
USER1/SYN LEAD
A
1
9
10
2
11
3
BC
12
4
D
13
5
E
14
6
F
15
7
G
16
8
H
SOLO
TRACK
MUTE
PERFORMANCE
CONTROL
CATEGORY SEARCH
PROGRAM
ETHNIC
PRE8/SAX/
WOODWIND
PRE2/KEYBOARD
USER2/PADS/CHOIRS
PRE3/ORGAN
USER3/SYN COMP
PRE4/GUITAR
GM / CHROMATIC PERCUSSION
PRE5/BASS
GM DR/DRUM/PERCUSSION
PRE6/STRINGS
PRE DR/SOUND EFX
PRE7/BRASS
USE DR/MUSICAL EFX

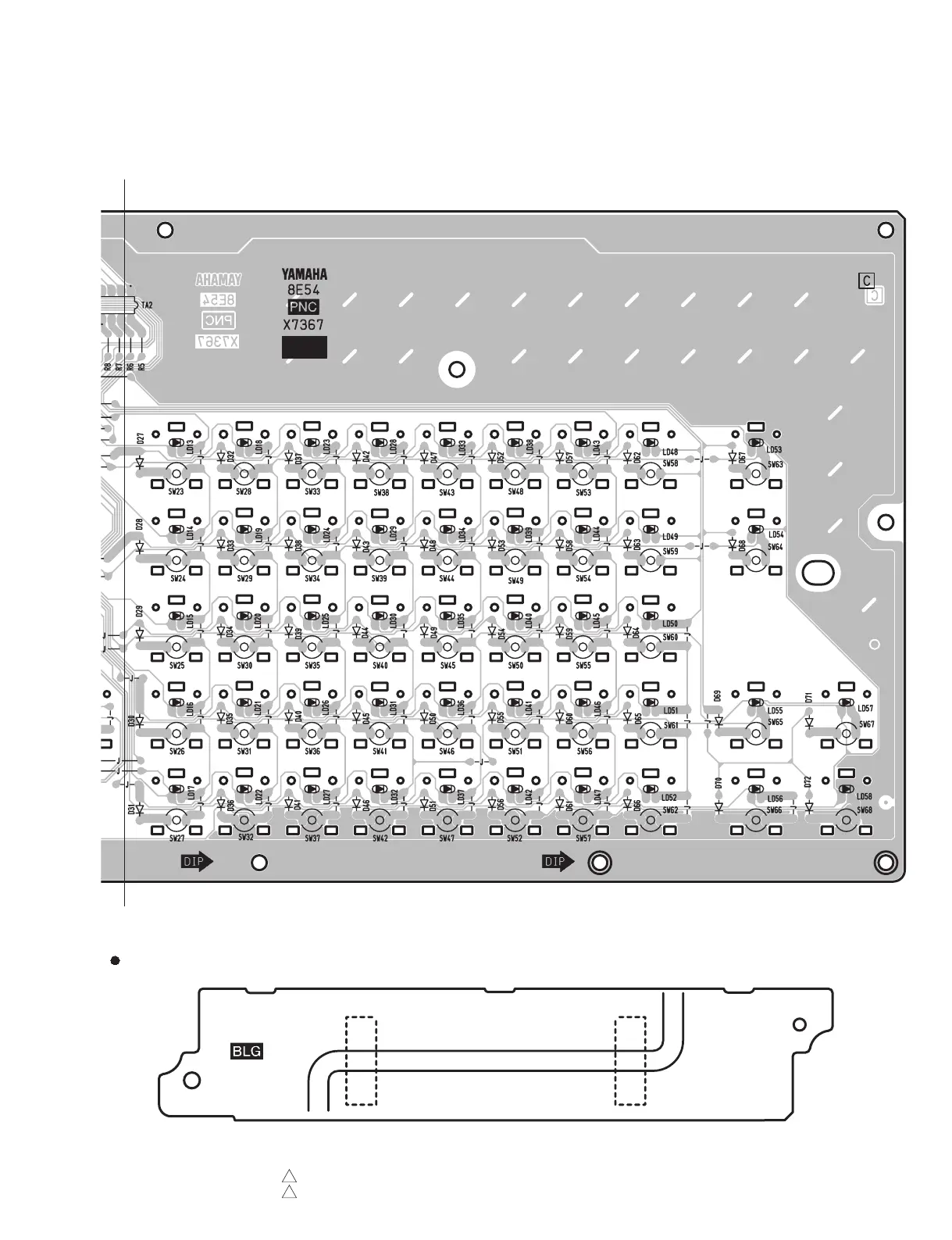

PNB-BLG Circuit Board
Component side
（部品側）
Component side
（部品側）
PNB-BLG: 2NA-WG45440
1
PNC: 2NA-WG45450
1
Scale: 85/100
Scale: 90/100

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
