Yamaha Motif XS Series User Manual

12
11
10
9
8
7
6
5
4
3
2
1
ABCDEFGH I JKLMNOPQ
12
11
10
9
8
7
6
5
4
3
2
1
ABCDEFGH I JKLMNOPQ
MOTIF XS7
MOTIF XS7
MOTIF XS7

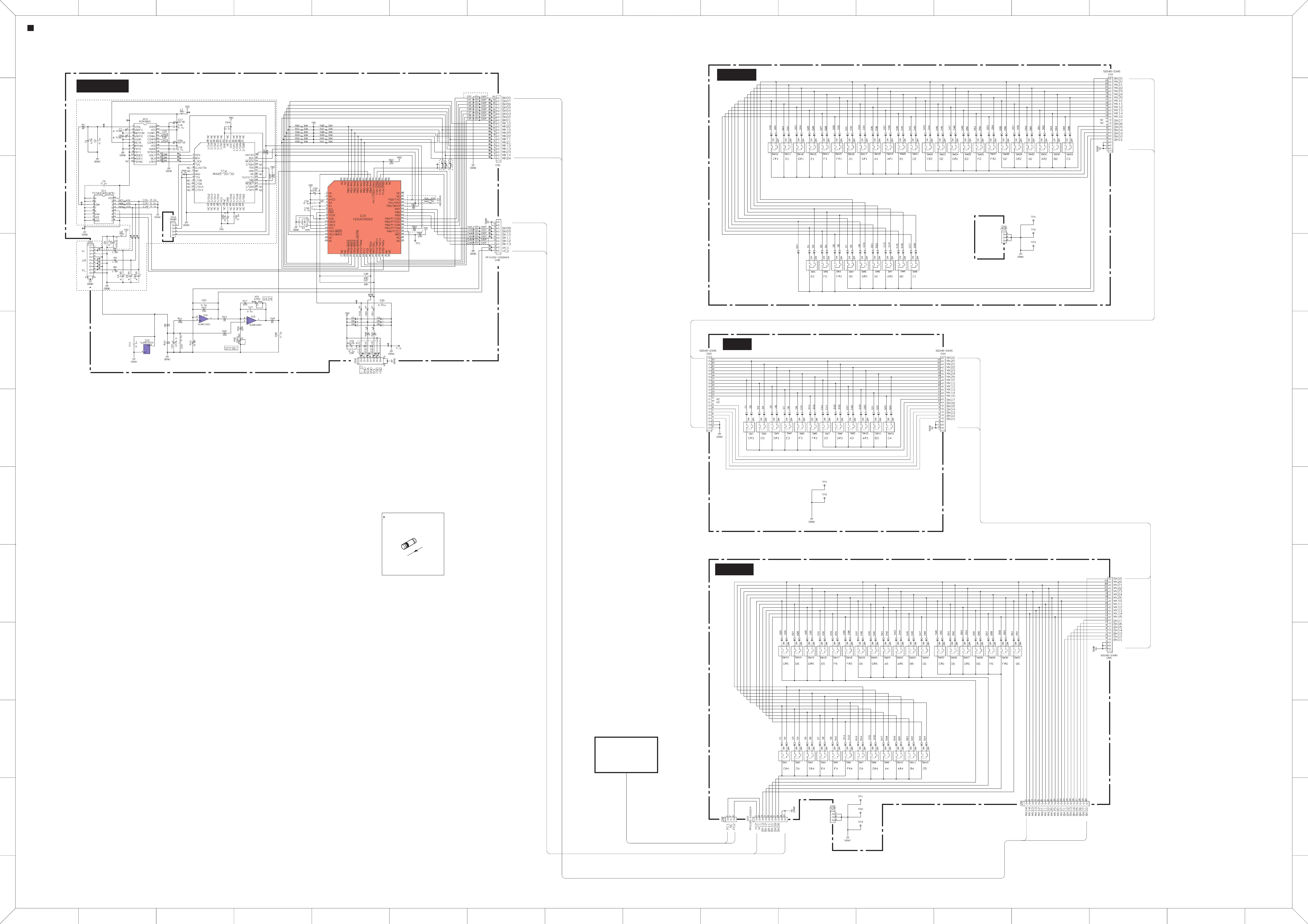

MOTIF XS7 OVERALL CIRCUIT DIAGRAM 6/11 (EMKS-FD, MK76L, MKC, MKH-D)
<Page 7>
EMKS-FD
28CC1-2000001485
Not installed
Not installed
Not installed
Not installed
Not installed
to DM-CN603
<Page 2 DM1/4 L-4>
CPU
OP AMP
28CC1-2001002090
28CC1-2001002088
28CC1-2001002091
MKH-D
MKC
MK76L
Note : See parts list for details of circuit board component parts.
注： シートの部品詳細はパーツリストをご参照ください。
After touch
sensor
RLS-73 TE-11 (VV925900)
DIODE
EMKS-FD: D0001-0006,0008
1: ANODE
2: CATHODE
1
2
Not
connected
Not
connected
Not installed

Yamaha Motif XS Series Specifications

General

Type	Workstation Synthesizer
Sound Engine	AWM2 with Expanded Articulation
Polyphony	128 notes
Wave ROM	355MB (when converted to 16-bit linear format)
Arpeggiator	6, 000 types
Effects	Reverb, chorus, part EQ
Sequencer	16-track sequencer, 130, 000 notes
Display	320 x 240 dot backlit LCD
Connectivity	USB, MIDI In/Out/Thru
Storage	USB storage device support
Keyboard	88-key (Motif XS8), 76-key (Motif XS7), 61-key (Motif XS6)
Number of Voices	1, 024 normal voices + 64 drum kits
