YASKAWA SGDA series User Manual

SERVO SELECTION AND DATA SHEETS
5.6.5 Encoder Cablescont.
322

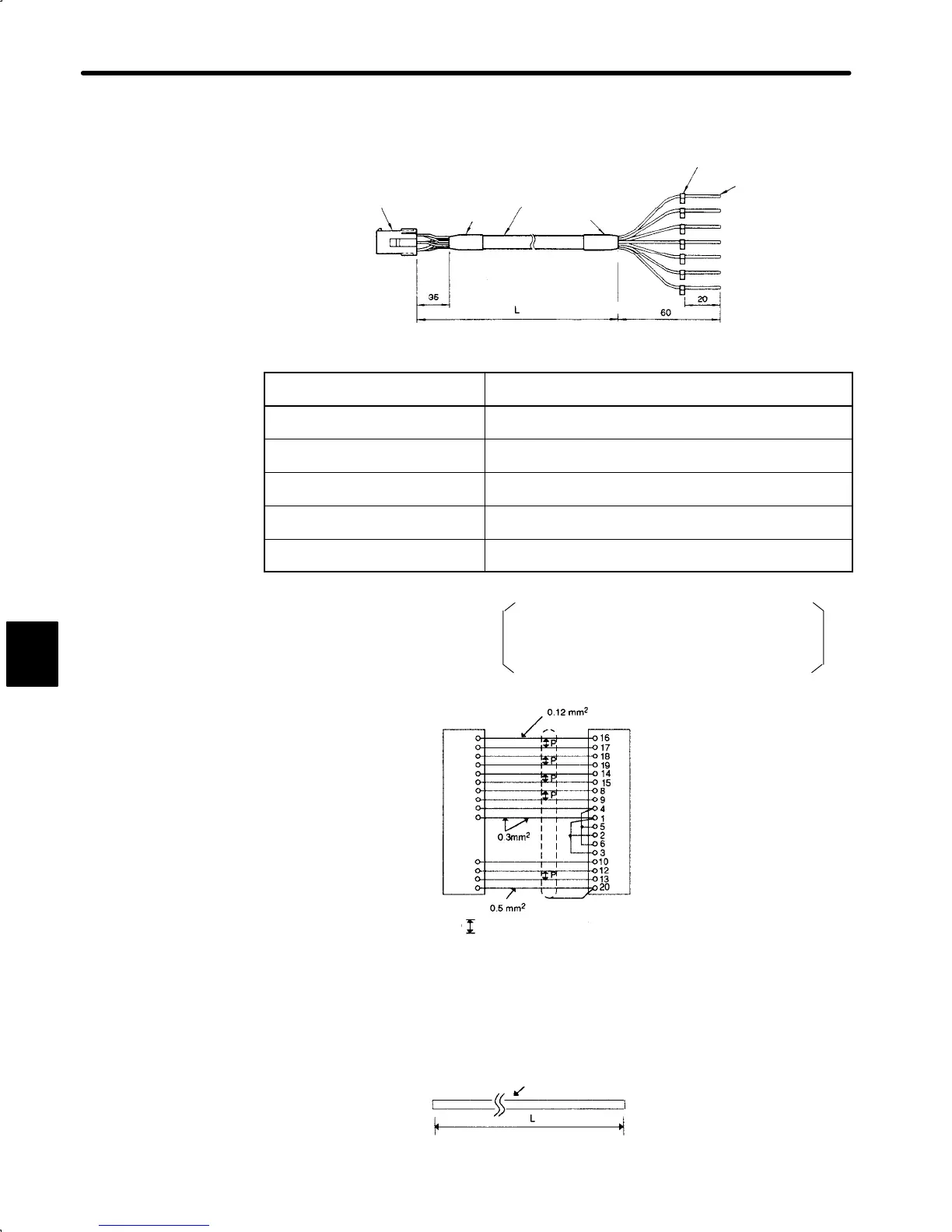

d) Cables for Absolute Encoder (Servopack End without Connector)
Cap: 172163-1 (15-pin)
Socket: 170361-1 (connected)
Shrink Tube
Cable DP8409123
(AWG22 x 3C, AWG26 x 6P)
Shrink Tube
Encoder End
Wire Markers
Wires
Servopack End
(1.38)
(2.36)
(0.79)
Type L in mm (feet)
DP9320085-1
3000
+100
0
(10
+0.33
0
)
DP9320085-2
5000
+100
0
(16.7
+0.33
0
)
DP9320085-3
10000
+500
0
(33.3
+1.67
0
)
DP9320085-4
15000
+500
0
(50
+1.67
0
)
DP9320085-5
20000
+500
0
(66.7
+1.67
0
)
Cap: 172163-1
Socket: 170365-1
Case: 10320-52A0-008 (Manufactured by 3M.)
Connector: 10120-3000VE (Manufactured by 3M.)
Encoder End
Blue
White/Blue
Yellow
White/Yellow
Green
White/Green
Purple
White/Purple
Red
Black
White/Grey
Orange
White/Orange
Green/Yellow
Servopack End
P: twisted-pair shielded cables.
*
*Purchase cases and connectors separately. Refer to 5.6.3 Connector Kits for details.
e) Cables for Incremental Encoder (Cable Only)
Cable AWG22 x 3C, AWG26 x 4P
5
