6 Adjustments
6.6.2 Anti-Resonance Control Adjustment Function Operating Procedure
6-48

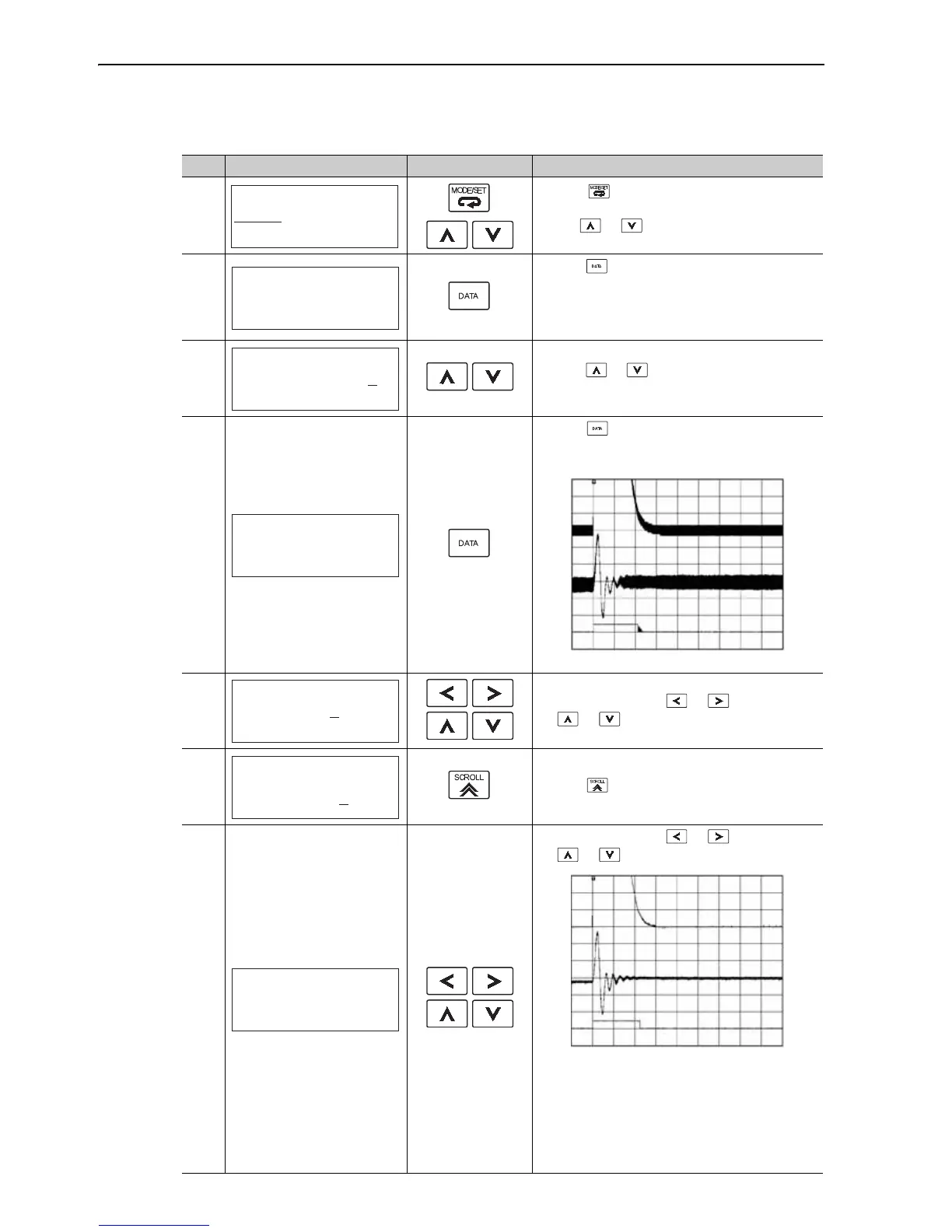

(2) With Determined Vibration Frequency Before Adjusting Anti-Resonance Control
Step Display after Operation Keys Operation
1
Press the Key to view the main menu for the
utility function mode.
Use the or Key to move through the list,
select Fn204.
2
Press the Key to display the initial setting screen
for tuning mode.
Note: If the display does not switch NO-OP is dis-
played, refer to 6.6.1 (1) Before Performing
Anti-Resonance Control Adjustment Function.
3
Press the or Key and select the tuning mode
"1".
4
Press the Key while "Tuning Mode = 1" is dis-
played. The screen shown on the left will appear and
"freq" will blink.
Waveform
5
Select the digit with the or Key, and press
the or Key to adjust the frequency.
6
Press the Key. The cursor will move to "damp".
7
Select the digit with the or Key, and press
the or Key to adjust the damping gain.
Waveform
Note: Increase the damping gain from about 0% to
200% in 10% increments while checking the
effect of vibration reduction. If vibration reduc-
tion is still insufficient at a gain of 200%, can-
cel the setting, and lower the control gain by
using a different method, such as one-parame-
ter tuning.
㧾㨁㧺㧲㨁㧺㧯㨀㧵㧻㧺
㧲㨚㧞㧜㧟㧦㧻㨚㨑㧼㨞㨙㨀㨡㨚
㧲㨚㧞㧜㧠㧦㧭㨂㨕㨎ޓ㧿㨡㨜
㧲㨚㧞㧜㧡㧦㨂㨕㨎ޓ㧿㨡㨜
㧲㨚㧞㧜㧢㧦㧱㨍㨟㨥ޓ㧲㧲㨀
To Next Page
