Yealink SIP-T46G Administrator's Guide

Getting Started
21

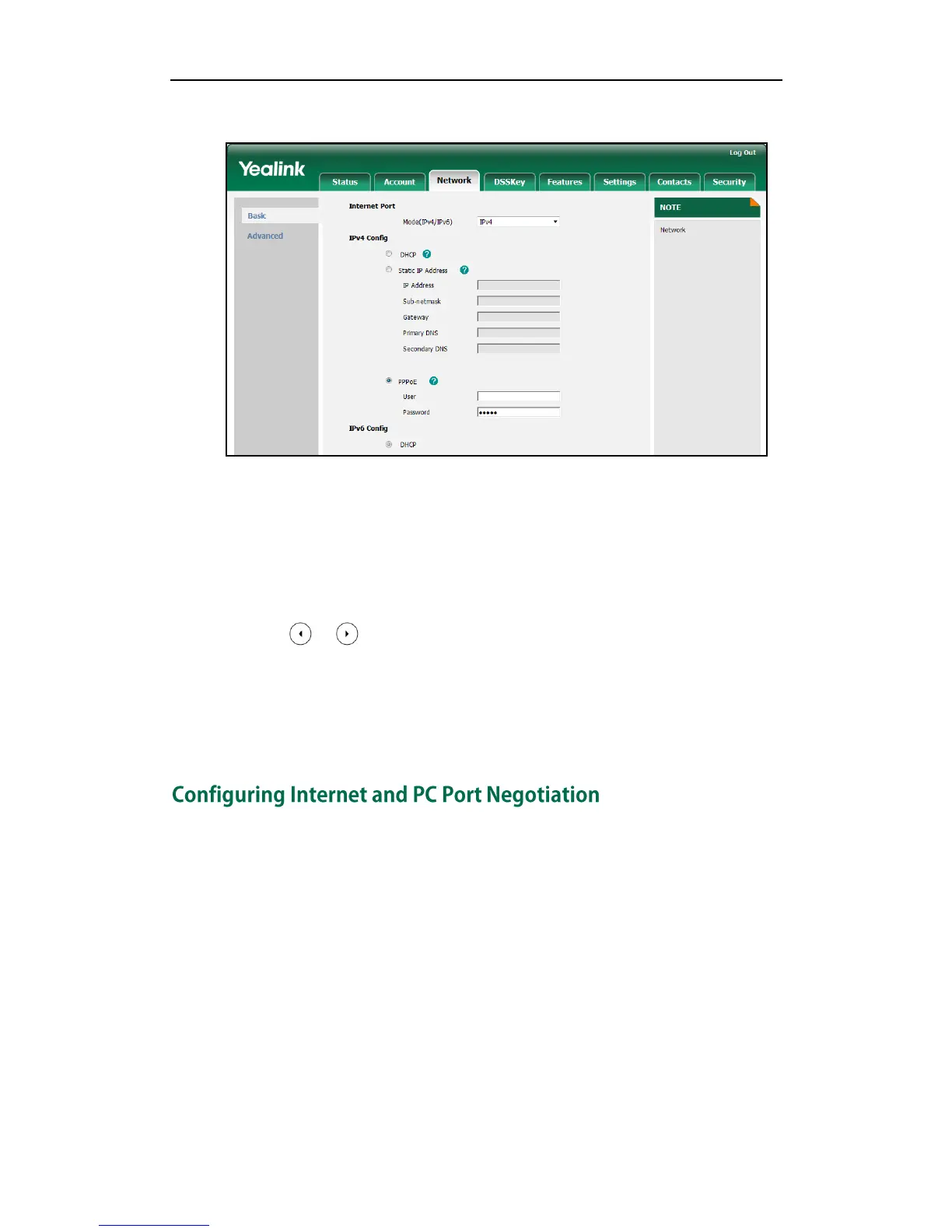

3. Enter the username and password in the corresponding fields.
4. Click Confirm to accept the change.
A dialog box pops up to prompt that the settings will take effect after reboot.
5. Click OK to reboot the IP phone.
To configure PPPoE via phone user interface:
1. Press Menu->Advanced (password: admin) ->Network->WAN Port->IPv4.
2. Press or , or the Switch soft key to select the PPPoE from the Type field.
3. Enter the username and password in the corresponding fields.
4. Press the Save soft key to accept the change.
The IP phone reboots automatically to make the settings effective after a period of
time.
There are two Ethernet ports on the rear of the IP phones: Internet port and PC port. You
can configure the transmission method for each port to use to communicate over
Ethernet. The IP phones support the following transmission methods:
 Auto-negotiation
 Half-duplex
 Full-duplex
By default, the IP phones are configured to perform auto-negotiation on both Internet
port and PC port.
Auto-negotiation
Auto-negotiation transmission means that all connected devices choose common

Yealink SIP-T46G Specifications

General

Backlight	Yes
Power requirements	100-240V, DC 5V
Touchscreen	-
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	6
Voice codecs	G.711, G.722, G.723, G.726, G.729A, G.729B
Bluetooth	No
RJ-9 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	185 mm
Width	244 mm
Height	213 mm
