YOKOGAWA DL850 ScopeCorder User Manual

1-4
IM DL850-03EN

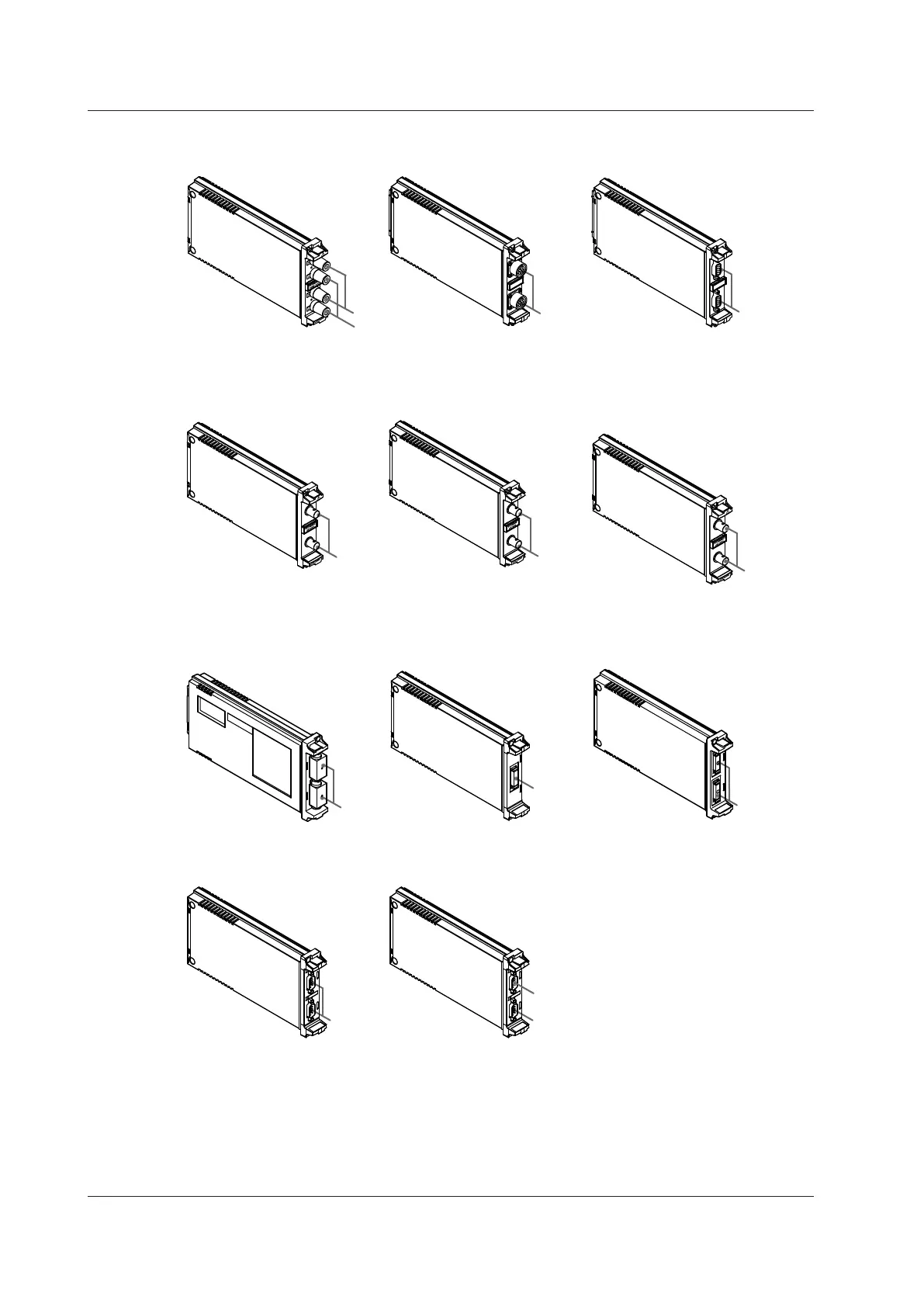

CAN & LIN Bus Monitor Module
CAN & LIN (model: 720241)
Strain Module (NDIS)
STRAIN_NDIS (model: 701270)
Strain Module (DSUB, Shunt-Cal)
STRAIN_DSUB (model: 701271)
Signal input
terminal
(2ch)
Signal input
terminal
(2ch)
Acceleration/Voltage Module
(with AAF)
ACCL/VOLT (model: 701275)
Frequency Module
FREQ (model: 701280)
Signal input
terminal
(2ch)
Signal input
terminal
(2ch)
Temperature, High Precision
Voltage Isolation Module
TEMP/HPV (model: 701265)
H input terminal
L input terminal
(2ch)
High-Speed 100 MS/s,
12-Bit Isolation Module
HS100M12 (model: 720210)
Signal input
terminal
(2ch)
16-CH Voltage Input Module
16CH VOLT (model: 720220)
Signal input terminal
(16ch)
CAN Bus Monitor Module
CAN MONITOR (model: 720240)
CAN bus signal
input terminal
Logic Input Module
LOGIC (model: 720230)
Logic probe
terminals
16-CH Temperature/Voltage
Input Module
16CH TEMP/VOLT (model: 720221)
Signal input terminal
(16ch)
CAN bus signal
input terminal
LIN bus signal
input terminal
1.1 Top Panel, Front Panel, Right Side Panel, and Left Side Panel

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
