YOKOGAWA DL850 ScopeCorder User Manual

Note
• You can install up to four 720210 modules, and these modules must be installed in the top slots.
• You can install a total of two 720240 CAN bus monitor modules (CAN MONITOR) and 720241 CAN & LIN
bus monitor modules (CAN & LIN). These monitor modules can only be installed in slots 7 and 8.
Removal
1.
Make sure that the instrument’s power switch is off.
2.
Loosen the two screws that are fastened to the input module.
3.
Hold the two handles at the top and bottom of the input module, and pull it out.
About the High-speed, 100 MS/s, 12-bit Isolated Module
Safety Precautions for Laser Products
The High-Speed 100 MS/s, 12-Bit Isolation Module (720210 (HS100M12)) uses an internal laser light
source. The 720210 (HS100M12) is a class 1 laser product as defined by IEC60825-1: Safety of Laser
Products—Part1: Equipment Classification.
High-Speed 100 MS/s, 12-Bit Isolation Module (720210 (HS100M12))

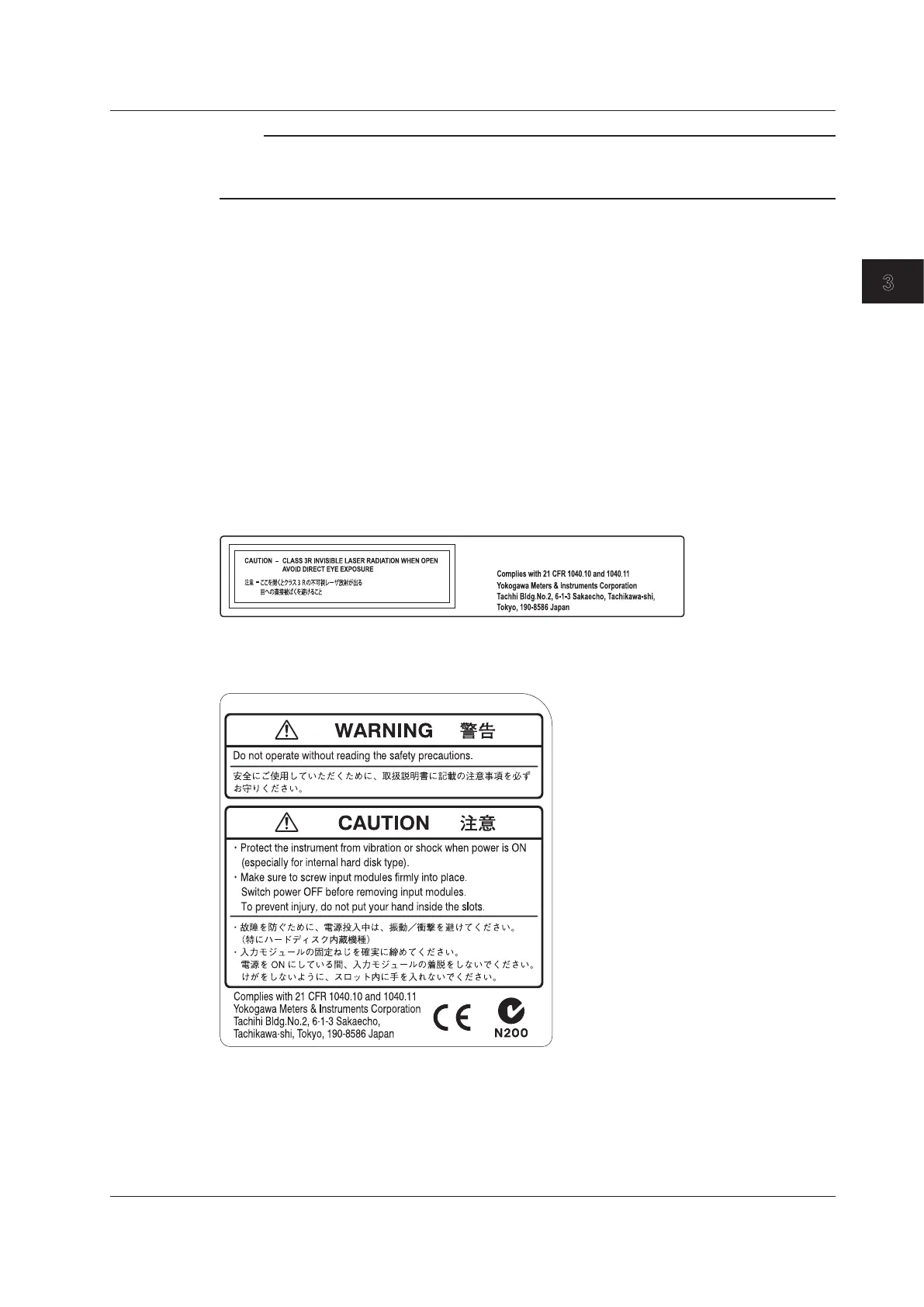

The following information is printed on the side.
DL850/DL850V
The following information is printed on the top.
3.3 Installing Input Modules
3-7
IM DL850-03EN
Making Preparations for Measurements
1
2
3
4
5
6
App
Index

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
