Operating the DL850/DL850V Using a USB Mouse
• Operations That Correspond to the Front Panel Keys (Top Menu)
Displaying the Top Menu
Right-click on the display. A menu of the DL850/DL850V front panel keys appears.
Selecting an Item from the Top Menu
Click on the item that you want to select. A setup menu that corresponds to the item that you
selected appears at the bottom of the display. The top menu disappears.
To display an item’
s submenu, point to the item. To select an item on a submenu, click on it, just
as you would to select an item on the top menu.

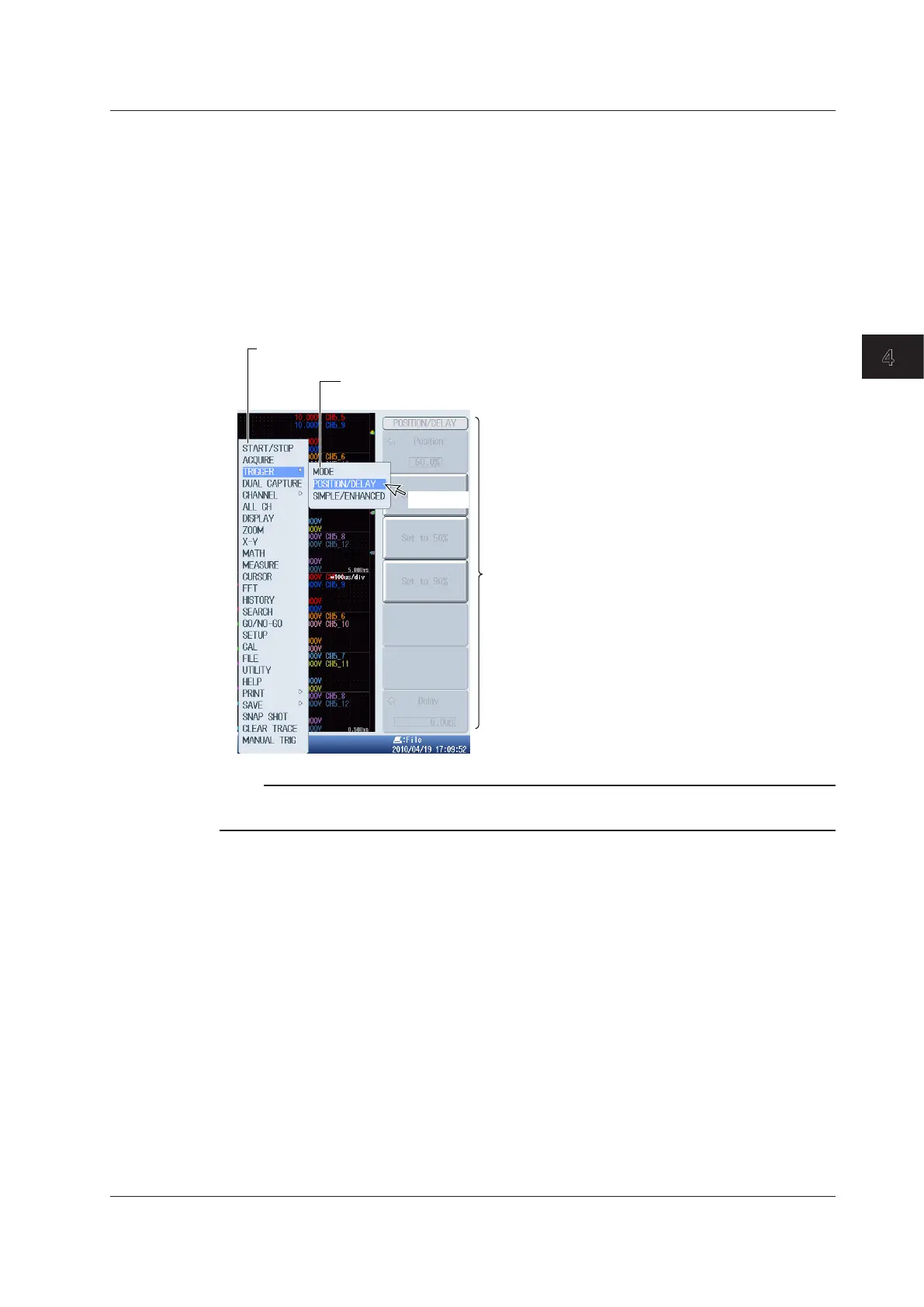

Pointer
Top Menu
Right-click to display the top menu.
Submenu
Submenus appear for items that have them.
The setup menu that you select
using the mouse appears.
Note
• The following keys are not displayed in the top menu:
ESC, RESET, and SET
4.3 Using USB Keyboards and Mouse Devices

YOKOGAWA DL850 ScopeCorder Specifications

General

Maximum Sampling Rate	100 MS/s
Power Supply	100 to 240 VAC, 50/60 Hz
Resolution	16-bit
Operating Temperature	5 to 40°C
Bandwidth	20 MHz
Input Types	Voltage, Temperature, Strain, Acceleration, Frequency, Logic, Current
Interfaces	Ethernet, USB, GP-IB
Trigger Modes	Edge, Window, Pattern
Number of Channels	Up to 128 (with multiple input modules)
Memory Capacity	Up to 2 G points (with /M4 option)
