7-38
IM 701310-01E

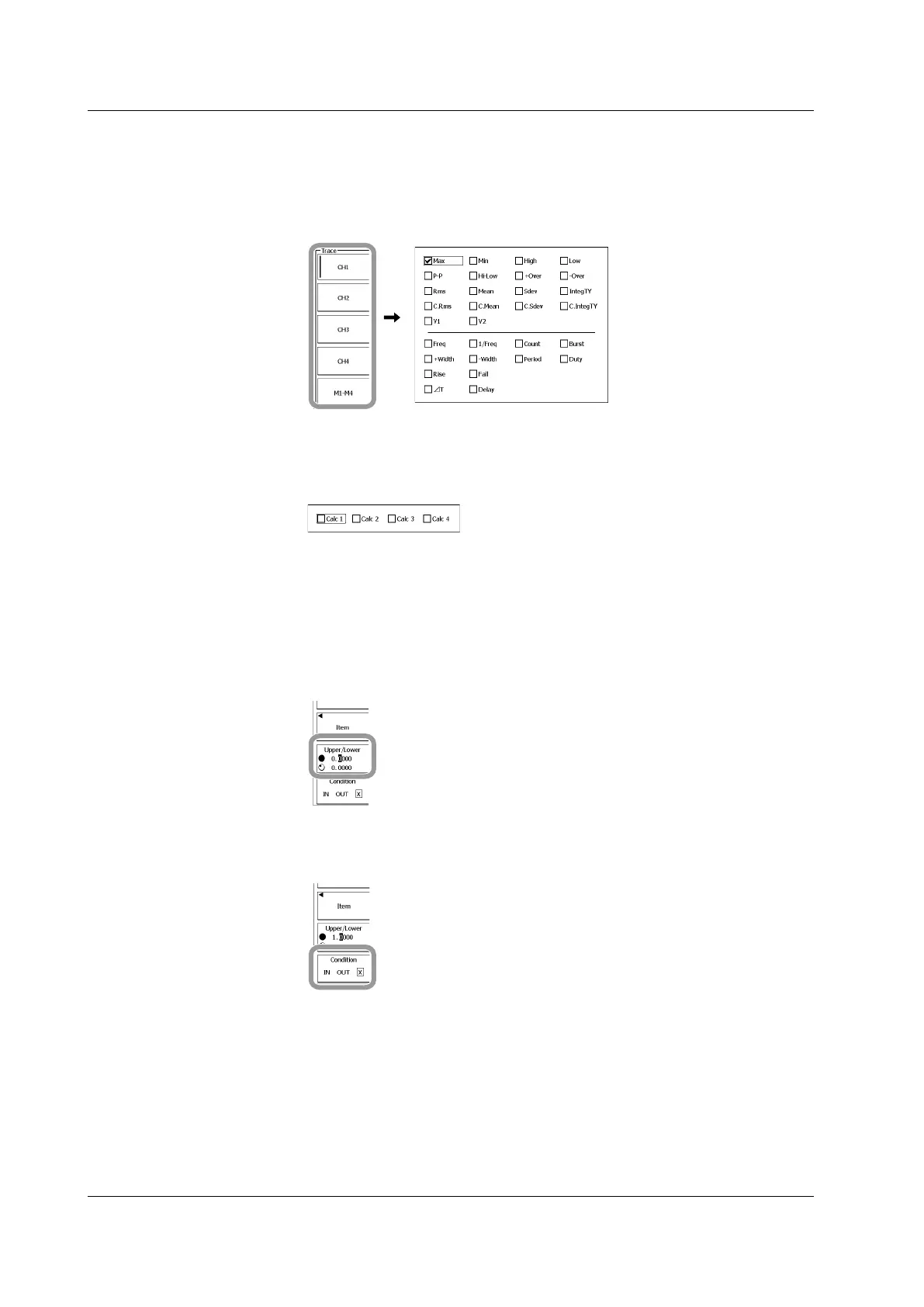

• Selecting a Signal and a Waveform Parameter
9.
Press the soft key that corresponds to the appropriate signal.
To select a channel from M1 to M4, press the
M1-M4
soft key first.
10.
Select a waveform parameter using the rotary knob and SET.
Proceed to step 12.
• Selecting a Calculation
11.
Use the rotary knob and SET to select a calculation from Calc1 to Calc4.
You can select calculations that you set using the procedure described in section 11.2.
12.
Press ESC.
Setting the GO/NO-GO Determination Range
13.
Press the Upper/Lower soft key to select the direction of the range that you will
set.
14.
Use the rotary knob to set the range’s maximum and minimum values.
Selecting a GO/NO-GO Determination Condition
15.
Press the Condition soft key to select IN, OUT, or X.
Repeat steps 3 to 15 for GO/NO-GO conditions 1 to 4 as necessary.
7.13 Setting Waveform Parameter GO/NO-GO Determination Conditions
To Next Page
