13-36

IM 701310-01E

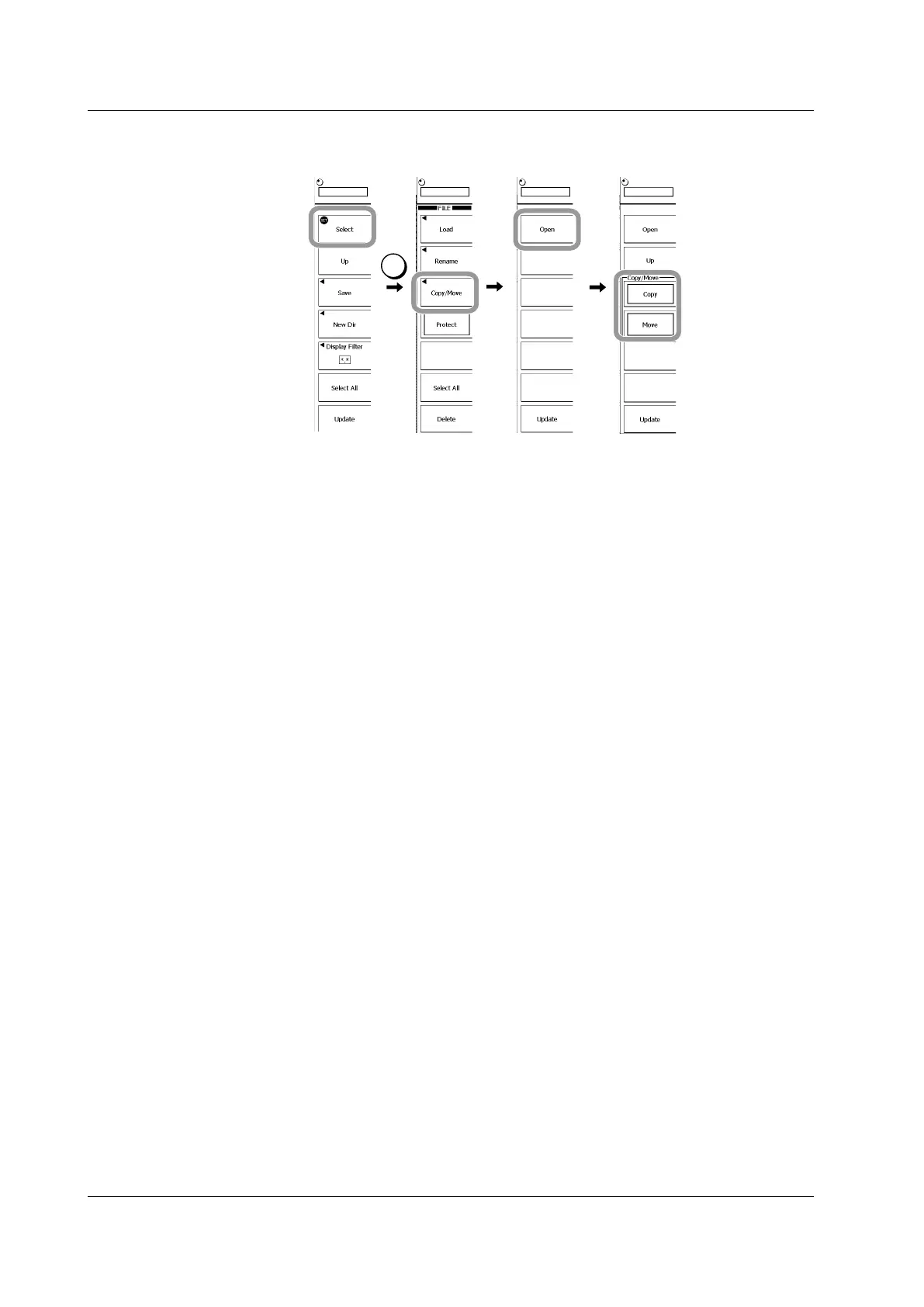

Press the Select soft key or SET.

A menu of file operations appears.

SET

Setting the File Copy/Move Destination

Press the Copy/Move soft key.

Select the storage medium/directory in the same manner as described in step 2.

To update the file list with the most recent data, press the

Update

soft key.

Copying/Moving Files

Press the Copy or Move soft key.

The file that was selected in step 3 is moved or copied.

The Copy or Move soft key changes to the Abort soft key.

Aborting File Copying/Moving

Press the Abort soft key.

File copying or moving is aborted. At the same time, the Abort soft key changes to the Copy

or Move soft key.

Specifying the Files to Be Displayed in the File List Dialog Box

Specify the files you want to display according to steps 16 to 19 in section 13.4.

13.11 Copying/Moving Files
